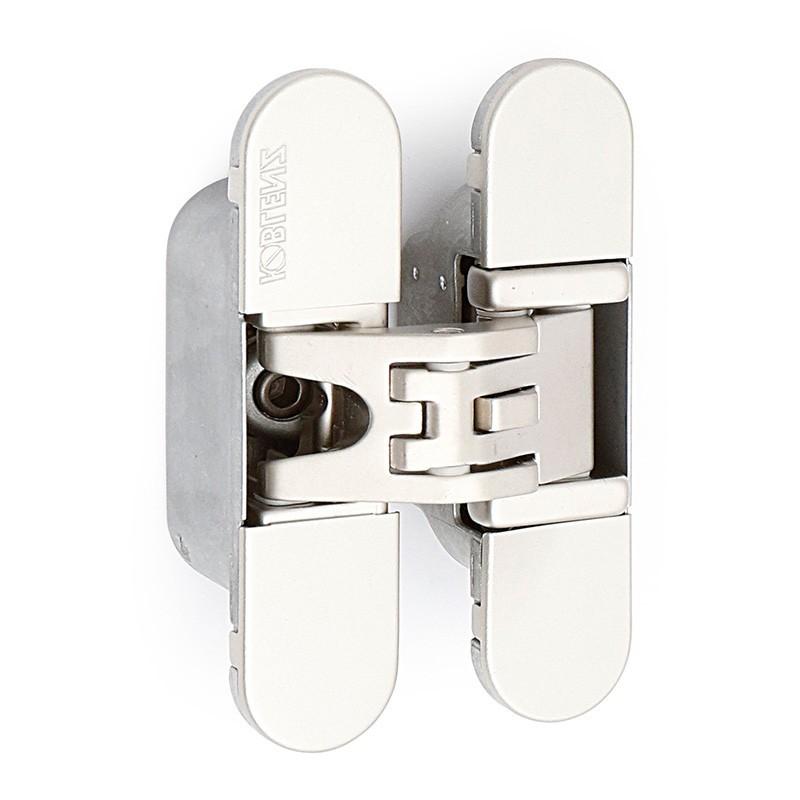

KOBLENZ INVISIBLE HINGE KUBICA K6200 SATIN NICKEL 3D REGULATION. 45Kgs/BIS. 95X60mm.

K-6300 Invisible Hinge. dimmable. For 60kg doors. 180ºTriple regulation: vertical, horizontal and depthMinimum door thickness 40mm.VERTICAL REGULATION:Loosen the screw (1) On all hinges, use a 2.5mm allen key. To adjust vertically, move the screw to one side or the other. (2) to adjust the hinge to the door in the desired location. Distribute the weight evenly. Once finished, tighten the screw again. (1).HORIZONTAL REGULATION:1mm horizontal adjustment. always from the O position. To adjust horizontally you must use a 2.5mm allen key. Move the screws to one side or the other to adjust the hinge to the door in the desired location. DEPTH ADJUSTMENT:Depth adjustment from -2 to +3mm, always from position O. To adjust the depth you must use a 2.5mm allen key. Loosen or tighten screw (1) to adjust the desired depth. Once the position is reached, lock the screw (2).Once the door hinges have been adjusted, fit the trim covers. DOOR CHARACTERISTICS:Height up to 2100mm. Width up to 850mm.*For doors larger than 2100mm. high use 4 hingesMAXIMUM LOAD:Door with 2 hinges 40kg. maximumDoor with 3 hinges 60kg. maximum Door with 4 hinges 60kg. maximum.The adjustments must be made on all the door hinges.Each hinge is supplied with its 4 decorative covers. Claims will only be attended to up to 5 days after receiving your order.
