Number of channels：2
Analog bandwidth：180MHZ
Maximum sampling rate：500MSPS
Input coupling：DC/AC
Rise time：2.5nS
Storage depth：120Kpts
Input impedance：1MΩ-18PF
Vertical sensitivity：5mV ~ 10V(1X)
Time base range：5nS ~ 50S
DC accuracy：±2%
Time accuracy：±0.01%
Measurement range：40mV ~ 80V(1X)
Digital phosphor technology：support
Color temperature display：support
Zoom scaling time base：support
20M hardware bandwidth limitation：support
Adjustable automatic bandwidth limitation：support
X-Y mode：support
FFT：support
Cursor measurement：Frequency/Period/Amplitude
Trigger detection：Digital trigger
Trigger mode：Auto/Single/Normal
Trigger edge：Rising/Falling
Roll mode：support
Screenshot storage：90
Waveform storage：250 groups
Capture signal：500
Parameter measurement：12 kinds
Signal generator：14 standard function signals
Auto-adjustment support
Waveform manager：support
Waveform output：support
High-voltageburnout protection：support
Screen size 2.8：inches
Screen resolution：320x240
Display technology：IPS full view
Expansion interface：USB transmission interface
Auto power-off：5minutes-2hours
Firmware upgrade：support
Charging requirements：5V 2A
Battery capacity：3000mAh
Standby time：3.5 hours at full charge
Dimensions：135mmx90mmx40mm

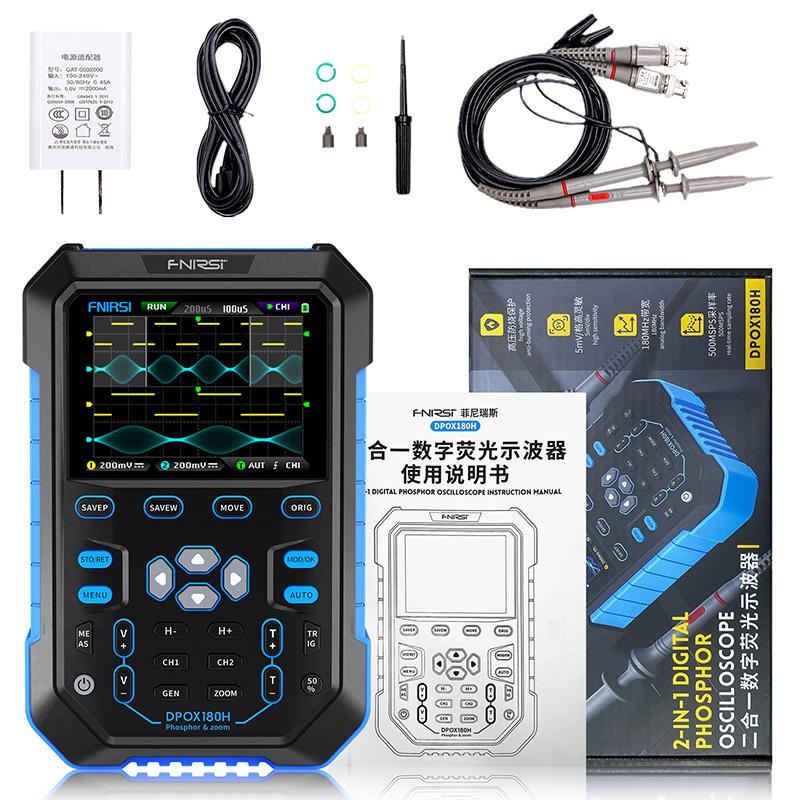

1 * DPOX180H Digital Phosphor Oscilloscope
2 * Matching 200MHz Probe (1X & 10X）
1 * 5V2A Power Adapter
1 * USB Data Line
1 * User Manual
