9/16\" BSPT Oil Burner Nozzle Durability Male Thread

Feature： *The Brass body and stainless steel metering parts permit machining to close tolerances for precision.Oil burner nozzle can be customized. *The Brass body and stainless steel metering parts permit machining to close tolerances for precision and consistently high performance. Brass transmits heat fast from the nozzle face to reduce the possibility of varnish and oil residue buildup. Stainless steel provides that extra durability for metering parts where wear is a factor. *Oil burner nozzle is an oil mist spray nozzle, which can produce hollow cone, full cone,semi-full cone pattern, spray angle: 60 degrees.Flow rate and spray angle being take into consideration as well as its viscidity and density,the general pressure is 7-10bar, the unit is GPH, different strainer is equipped as different flow rate.

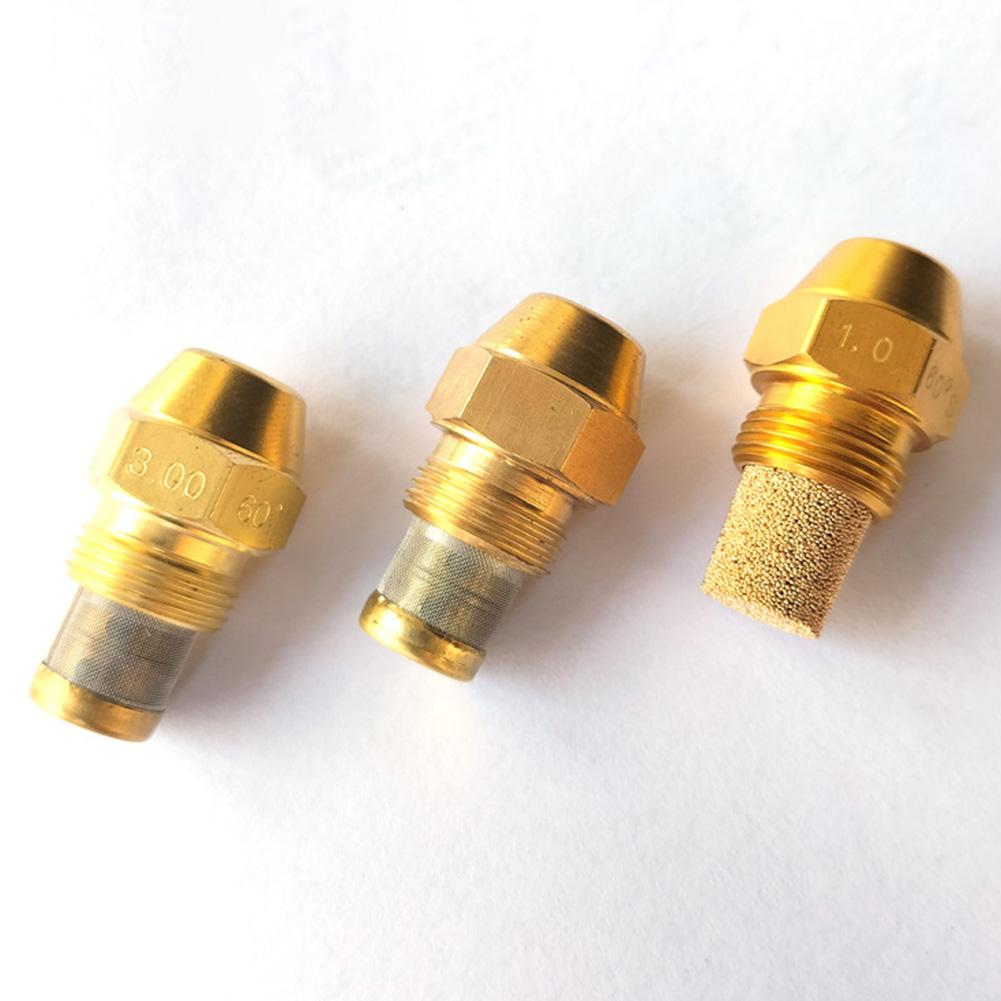

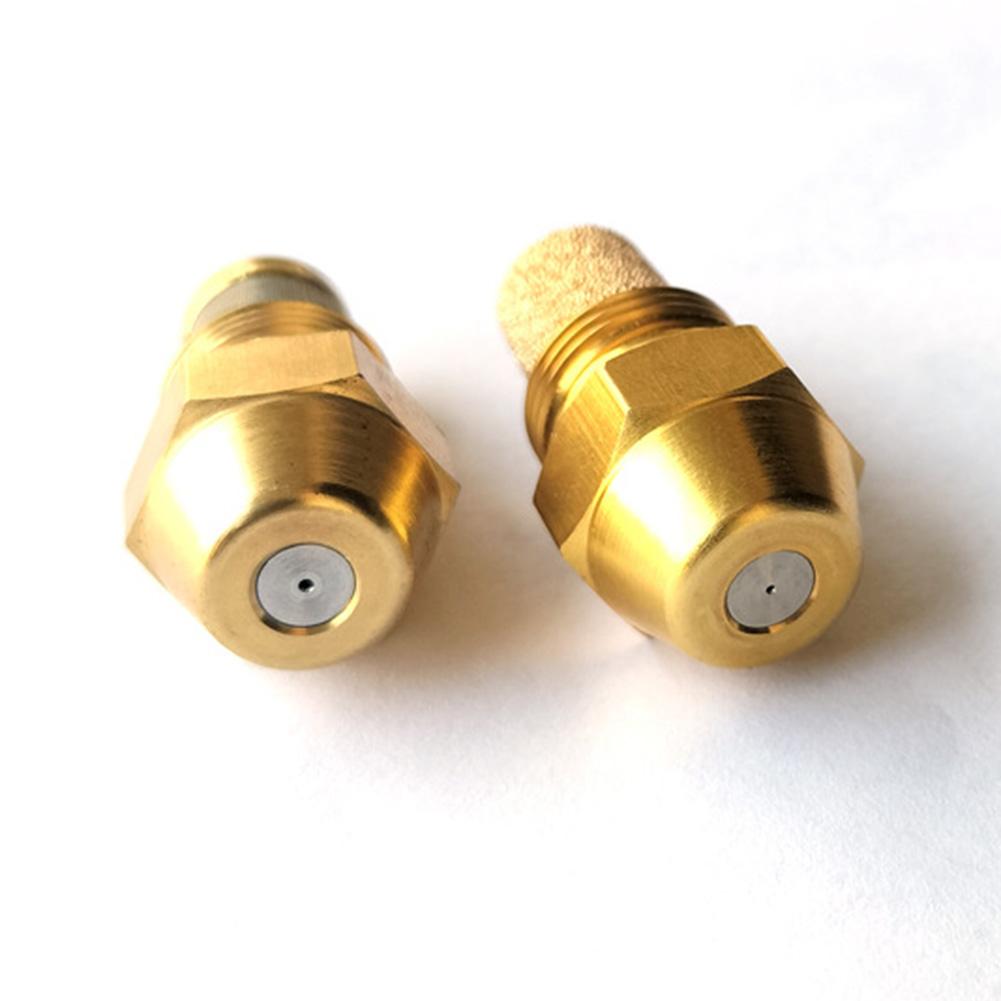

Details： *Material:brass *Color:golden *Size: (as shown in the picture) *Thread size: male thread, 9/16" BSPT, *Spray angle: 60 degree Capacity from 0.40-1.75 usgal/h use copper filter Capacity from 2.0-11.0 usgal/h use metal fiter Capacity above 12.00 usgal/h do not use filter Style：0.45 60°，0.5 60°，0.6 60°，2.0 60°

Package Contents: 1Pc x Oil burner nozzle

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.*
