Four Options:
Option 1:
2GB RAM 32GB ROM Carplay:
AD7002CP with 1*ISO Cable,1*RCA Cable with 9 wires(supports Video Output),1*CAM-VIN wire,1*External Mic,2*USB wire,1*GPS Antenna,1 sets Metal Bracket,1*Front plastic frame.
Option 2:
2G RAM 32G ROM NOCarplay:
AD7002 with 1*ISO Cable,1*RCA Cable with 9 wires(supports Video Output),1*CAM-VIN wire,1*External Mic,2*USB wire,1*GPS Antenna,1 sets Metal Bracket,1*Front plastic frame.
Option 3:
1G RAM 16G ROM Carplay :

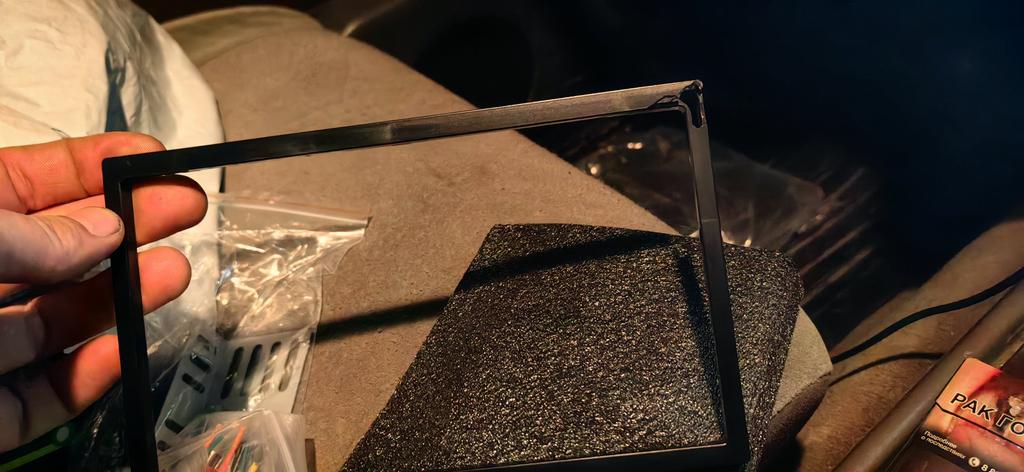

AD7001CP with 1*ISO Cable,1*RCA Cable with 9 wires(supports Video Output),1*CAM-VIN wire,1*External Mic,2*USB wire,1*GPS Antenna,1 sets Metal Bracket,1*Front plastic frame.
Option 4:
1G RAM 16G ROM NOCarplay :
AD7001 with 1*Wire Harness Cable,1*RCA Cable with 4 wires(not supports Video Output),1*CAM-VIN wire,Not includes External Mic,2*USB wire,1*GPS Antenna,1 sets Metal Bracket,1*Front plastic frame.
Item Parameters:
General
- Power Supply: DC 12V (allowance range: 10.8-14.5V)
- Max. Current: 10A
- Screen Size: 7 inch
System
- Operation System: Android 11
- CPU: QUAD CORE ARM Cortex A7 4*1.2 GHz
- RAM: 2GB
- ROM: 32GB
Display
- Touch Screen: Yes
- Resolution: 1024*600
- Capacitive or Resistance Screen: Capacitive
- Built-in Clock and Calendar: Yes, show real time and can use network-provided time
- Main Menu Status Bar display: Can be changed to Music/Radio/BT-Stereo Player and Clock/Date/Week
- Change Apps-Icon Position: Yes
- Key Backlight Color: White
WiFi & 4G
- WiFi: Built-in WiFi Modem, support 802.11b/g/n
- 4G Dongle included: Not Included (needs to order separately by buyers)
Internet
- Explorer: Opera, UCWeb, SkyFile, Dolphin and more explorer for your selection
- Online Entertainment: Online Video, TV, Movie, Music, Radio, Video Chat
- Online Navigation: Online Maps Navigating
- Online Games: Yes, online play or you can download it from play store
- Online Communication: WeChat, Twitter, Facebook, Skype, Gmail, Whatsapp etc.
- Read and edit Office Software: Yes, support Word, Excel, Powerpoint, PDF, TXT
Audio
- Format: MP3/WMA/MP2/OGG/AAC/MA4/FLAC/APE/WAV etc. Could play via song list
- Record: MP3, WMA
- Other: LRC synchronized display; ID3 search; Search by files; Album Picture; User-defined audio effect
- Audio IC: Top Global Cirrus IC, independent audio decoding
- SNR: Noise rations:=90dB
Video
- Format: Support AVI (H.264, DIVX, XVID), RM, RMVB, MKV (H.264, DIVX, XVID). WMA, MOV, MP4 (H.264, MPEG, DIVX, XVID). DAT (VCD format). VOB (DVD format). PMP, MPEG, MPG. FLV (H.263, H.264). ASF, TS, TP, 3GP, MPG etc. =30 formats, Playing internet video directly (while downloading)
- Play: Up to 1920*1080 Pixels, 30Mb. Fluent play without light spot
GPS
- Operation System: Android
- Offline Navi: Offline map data preloaded, ready to use after installation
- Online Navi: Yes, support online navigating apps.
- Voice Guidance: Yes
- Support 2D/3D Map Views: Yes
- Dual Zone: Yes, navigating while music playing
Bluetooth
- Hands Free: Yes
- A2DP (Bluetooth Stereo Music): Yes, can play stereo music through Bluetooth
- Bluetooth Music Control: Yes, play/pause/previous/next
- PB-Download: Yes, can download phonebook from mobile to this unit
- PB-Search: Yes, can use the first letter to search contact member in PB-Listings
- Calling Records: Yes, Dialed Call, Received Call, Missed Call
- Setup: Auto Answer, Auto connect, Device name
- Built-in Microphone: Yes, on the front panel
Radio
- FM Tuning Range: 87.5-108MHz
- FM Increment: 0.05MHz(EU)/0.1MHz(US)
- FM Area: Europe/USA1/USA2/Japan/Russia
- It doesn't support XM radio, but you can access the same channels using the XM radio app.
USB
- Position: 2 USB Port, can be connected with Media/Camera/DAB+ Box / Smartphone
- Capacity: 2TB
- Play MP5 Videos: Yes, can play RMVB Videos up to 1080P
- Touch Music Title to play directly: Yes
DVR
- Built-in Car Recorder App: Yes, just connect a USB Camera to use this function
- Support HD CCD Camera: Yes, 1080P
- Play recorded Video directly: Yes
- Storing Position: Nand Flash/GPS Card/SD Card/USB Storage can be changed
DAB(+)-IN
- Built-in DAB Player App: Yes
- Connection Port: USB
- Power Supply to DAB+ Box directly: Yes
- Touch Control DAB+ Box on unit: Yes
DTV-IN
- Built-in Digital TV Tuner: Not included (needs to order separately by buyers)
- External Port for TV Box: Yes, Support DVB-T/DVB-T2/ATSC/ISDB Box
- Power Supply to TV Box directly: Yes, you can connect our TV Box to achieve this function
- Touch Control the TV Box on unit: Yes, you can connect our TV Box to achieve this function
Additional
- Textbook: Could change font, font color, background color, bookmark, reading E-book while listening music
- Photo Viewer: Support JPS, BMP, PNG, GIF etc. format. play by revolve, Powerpoint Support 4096*4096 Pixels
- Wallpapers: 5 live wallpapers, 17 standard wallpapers, support DIY wallpaper from Gallery
- APK Installer: Support Android Package installer
- Support Torque Pro(OBD2 &Car): Yes, you can connect a Bluetooth OBD2 Scanner Tool to use this function
- Support Mirror Link function: Yes, support screen mirroring from iPhone and android smartphone
- Support TPMS: YES (Not included ,needs to order separately by buyers)
Setup
- WiFi/Hotspot/Bluetooth: Yes
- Brightness level adjustable: Yes
- Wallpaper: Wallpapers/Live Wallpapers/Gallery
- Sound: Key Tone & Volume
- Storage: Display Internal Storage/Nand Flash/Connected Device Storage
- Apps: Running Apps display/force stop/uninstall
- Security: Yes
- Accounts: Yes
- Languages and Input: more than 70 Languages and choose input method
- Backup and Reset: Yes
- Date and Time: Setting Date&Time by yourself or choose GPS/network-provided time
- Accessibility: Yes
- GPS: Yes, GPS application options/monitoring/sound mode/mixing ratio
- Driving safety: Watching Video, Reversing X-mirror/Volume, Reversing Trajectory/radar Display, Rear view ruler
- Amplifier: Rock/Pop/Jazz/Classic/Flat/Voice/Custom
- Steering Wheel Control: Yes
- Factory Settings: choose Radio Band and 88 Open-Unit-Logos
- About Device: Display Parameter Info.
Input
- AUX Video In: One
- AUX Audio In: L,R
- Rear-View Camera Video In: One
- DAB+ Box In: One
- Car DVR In: One
- Radio Antenna In: One
- GPS Antenna In: One
Output
- Audio Out: L,R
- Subwoofer Out: One
- Video Out: One
Support: RDS,Bluetooth,USB
