Feature:
1. DISPLAY CONTENTS OF INSTRUMENT INCLUDE: Single running mileage and running time, real time speed, battery power and voltage, gear indication, total mileage, fault icon code, etc.
2. EASY TO INSTALL: Suitable for electric bicycles, scooters, etc., suitable for 22.5mm Diameter handlebars
3. COOLING CASE: The controller case is made of excellent metal with a notched design, which protects the internal circuitry due to good cooling function, thus avoiding thermal overload
4. CONTROLLER WIRING HARNESS FUNCTIONS INCLUDE: Positive and negative power supply, motor three phase wire, headlight interface, taillight, brake light interface, brake light headlight signal, battery power output, intelligent identification line, low brake power off, PAS1:1 power, speed control throttle turn, main switch(electronic control lock), LCD liquid crystal instrument interface, motor Hall interface
5. CORROSION RESISTANT ALUMINUM ALLOY: Made of excellent aluminum alloy material, light weight, possess good strength and good corrosion resistance
Specification:

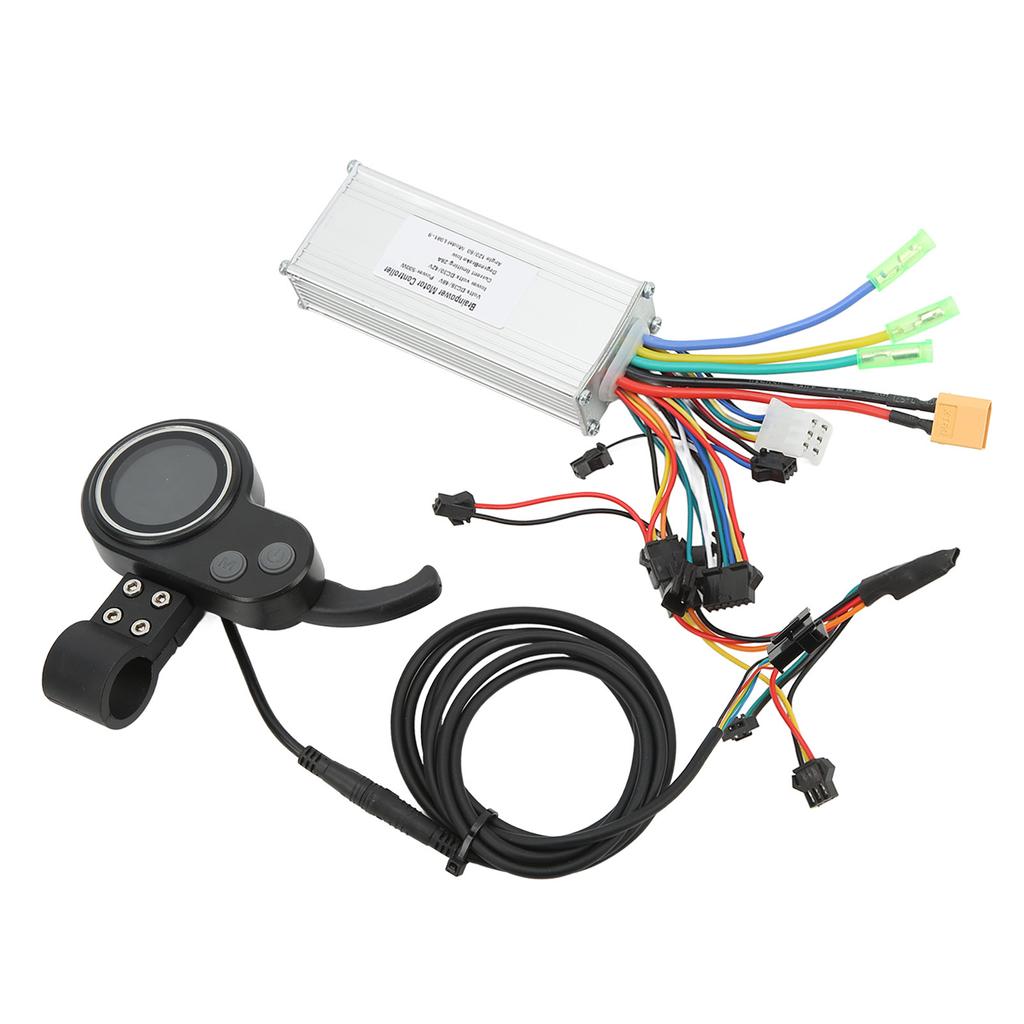

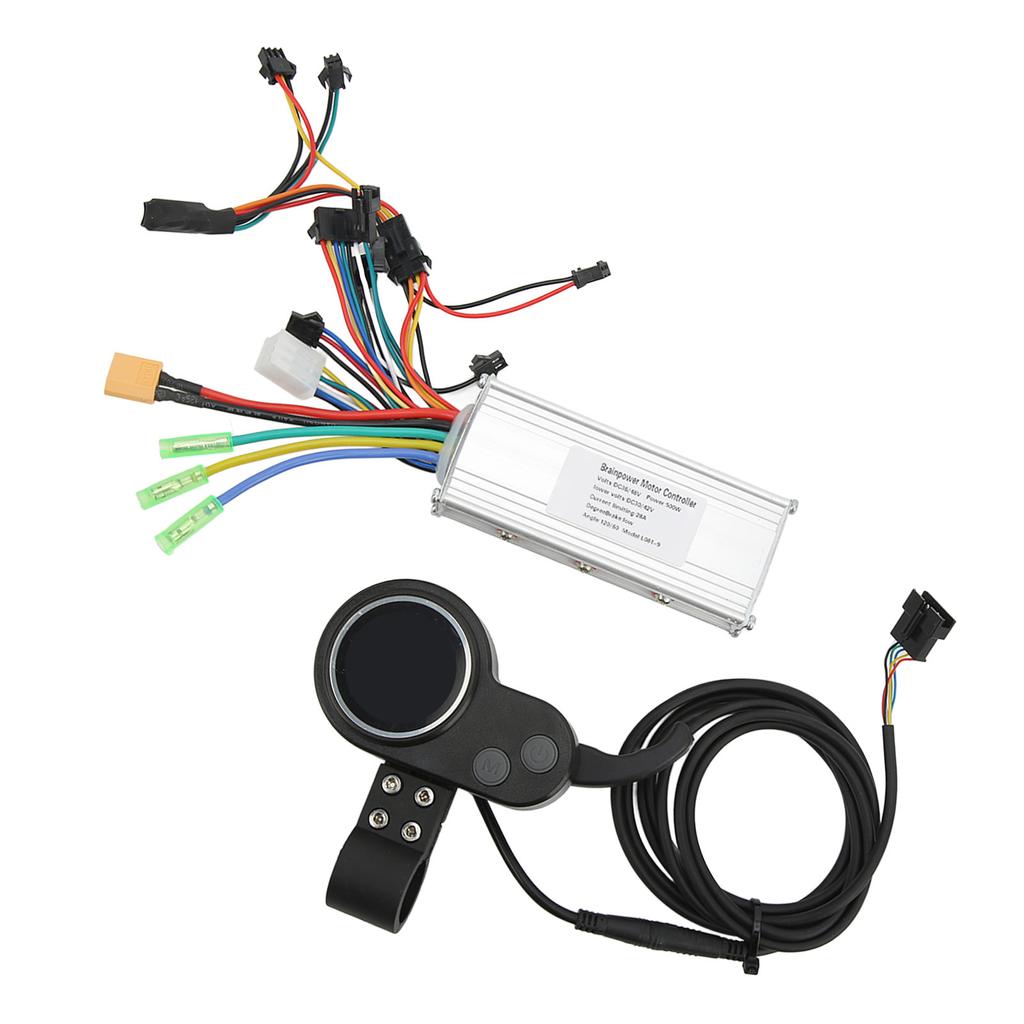

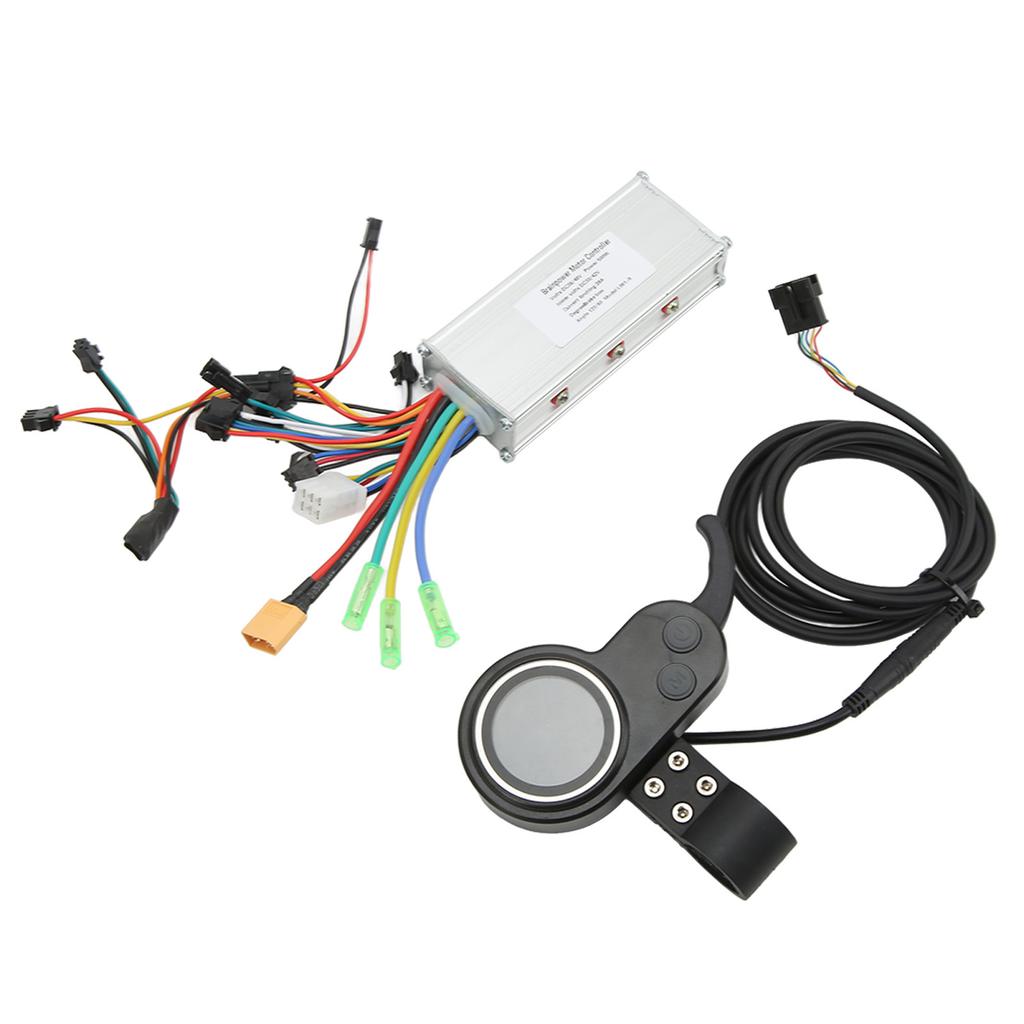

Item Type: Electric Bicycle Brushless Controller Kit
Material: ABS and aluminum alloy
Voltage: 36, 48V
Power: 500W
Current Limit: 28A
Low Voltage: 30, 42V.
Package List:
1 x Meter1 x Controller1 x User Manual
