Feature:
1. CONTROLLABLE DEVICES: In command mode, a maximum of 64 devices can be controlled in parallel. The command can be run in the serial port hyperterminal(serial port assistant) or Poll enter
2. EXCELLENT MATERIAL: Excellent production technology, not easy to virtual welding, electronic components are very reliable
3. STRONG AND STABLE: The relay continuous suction for 100,000 times, possess strong driving ability, stable performance
4. A VARIETY OF INSTRUCTIONS: A total of 6 instructions of open, close, instantaneous, self locking, interlocking, delay
5. DELAY DURATION: In the delay command, the maximum delay is 255 seconds, you can use with confidence
Specification:

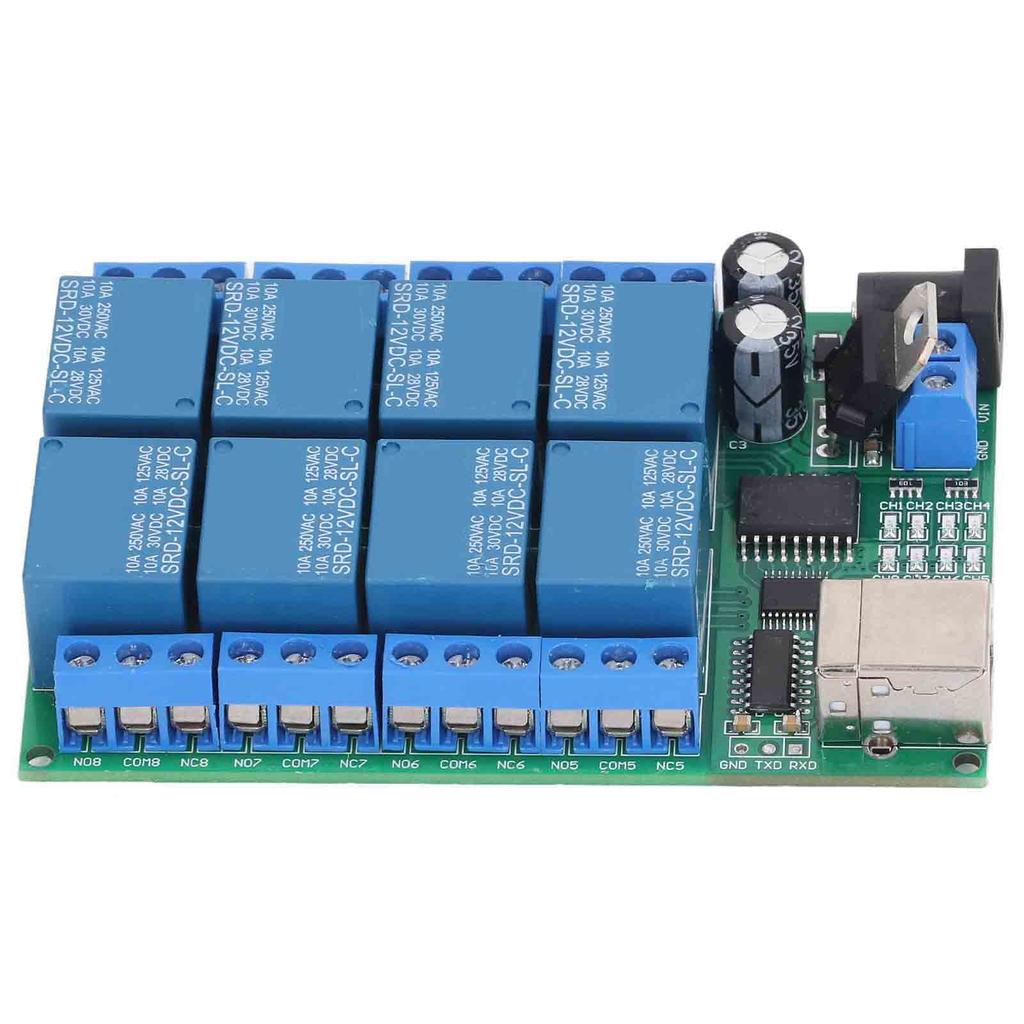

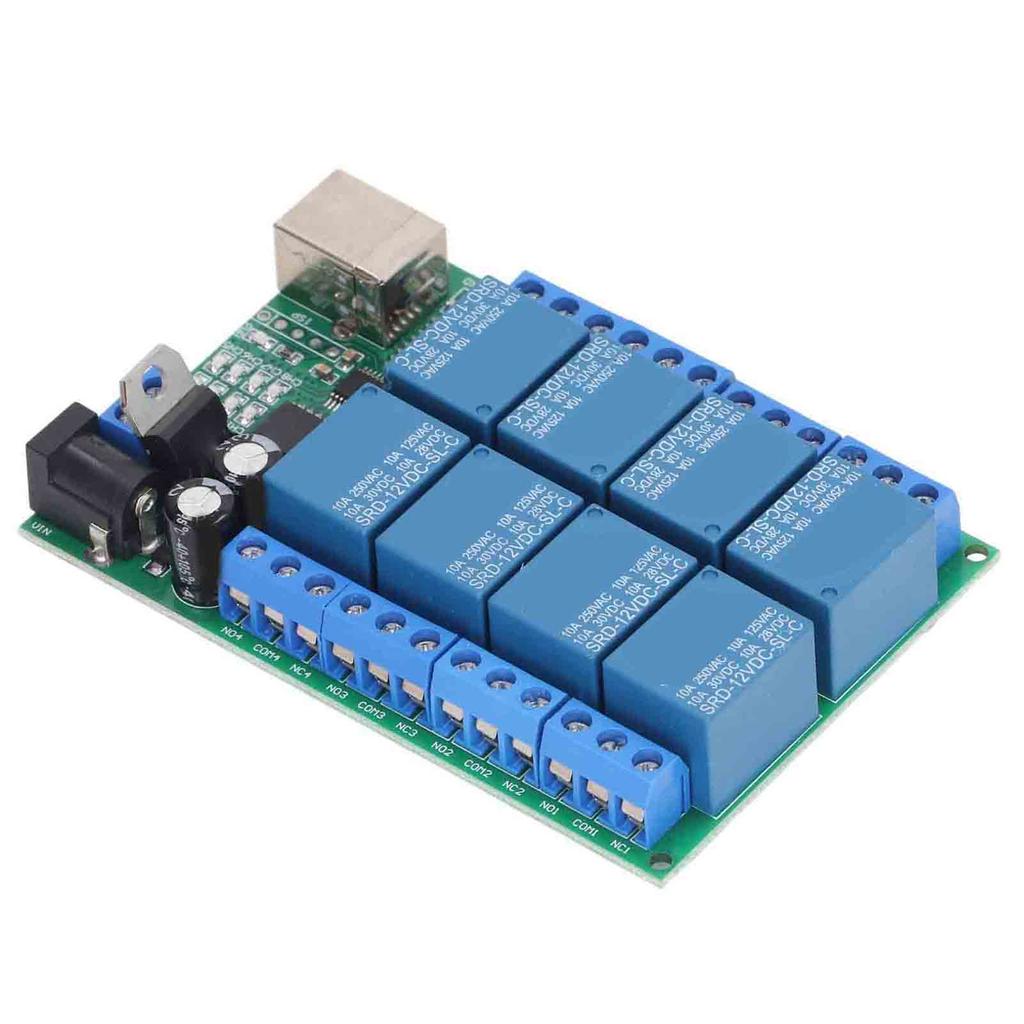

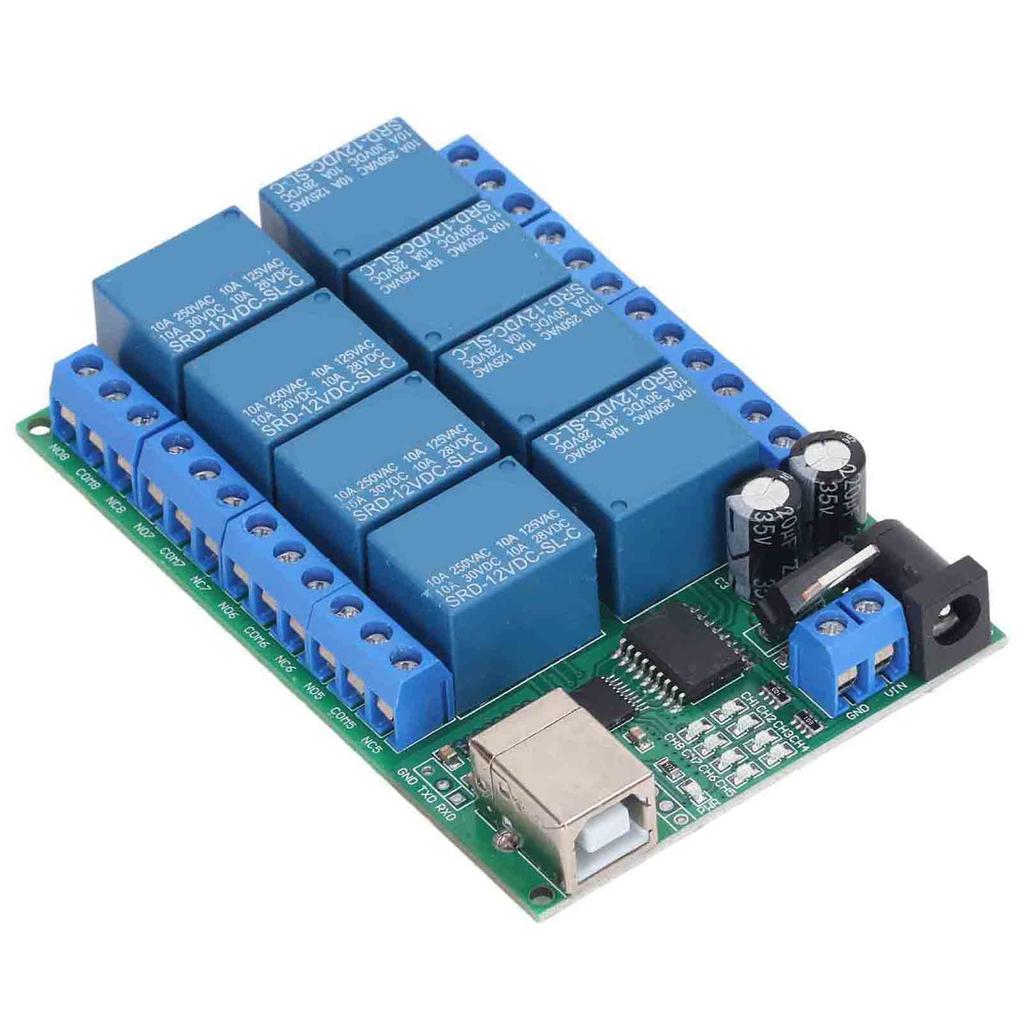

Item Type: 8 Channel Relay Module
DC 12V Power Supply: Voltage range 9 13V
Standby Current: All relays closed 12MA, 1 relay on 40MA, 2 relay on 67MA, 3 relay on 95MA, 4 relay on 121MA, 5 relay on 147MA, 6 relay on 173MA, 7 relay on 198MA, 8 relay on 223MA
Instructions: On , off , instantaneous , self lock , Interlock , delay 6 instructions
Command: RTU command
Delay Time: Maximum delay is 255 seconds in delay command
Command Control: The command can be in the serial port hyperterminal(serial port assistant) or Poll enter
Controlled Devices: A maximum of 64 devices can be controlled in parallel in command mode.
Package List:
1 x 8 Channel Relay Module
Note:
Please pay attention to safety.
