【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

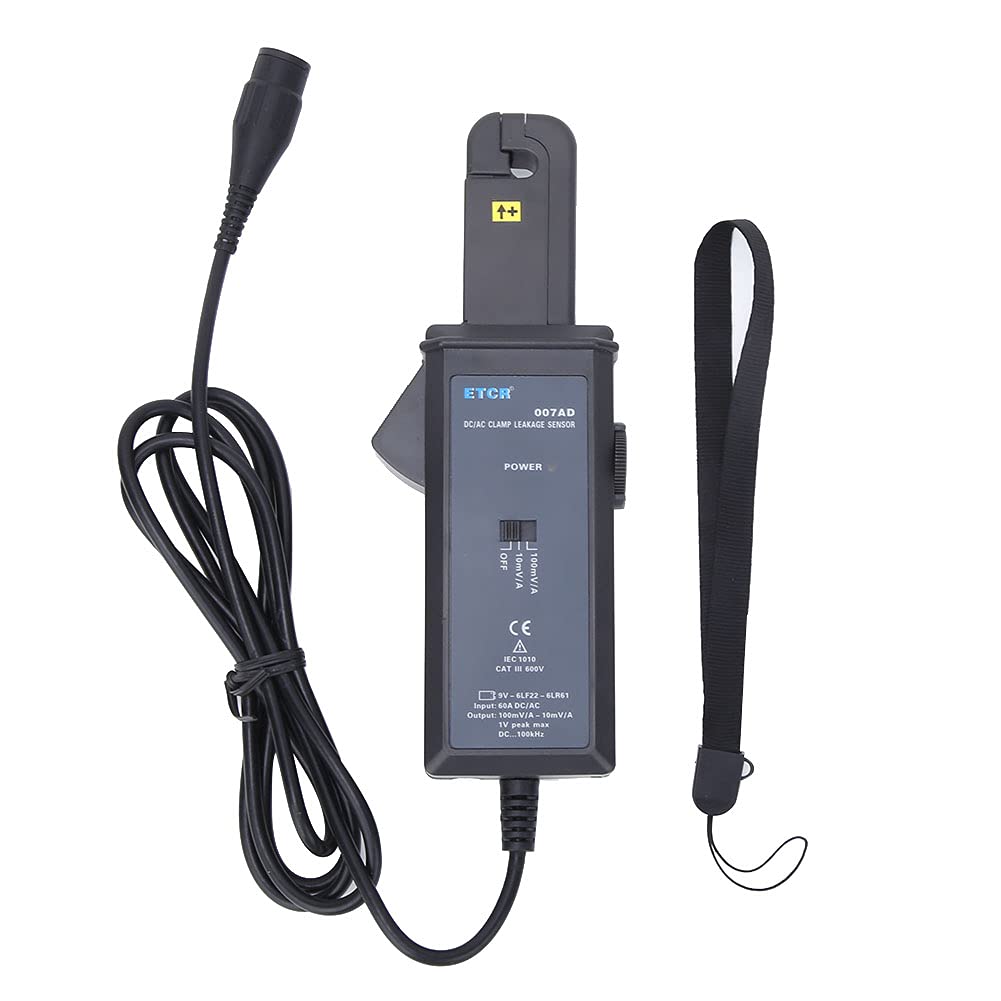

[Non-contact] The clamp leakage current detector uses the latest CT technology and digital integration technology for non-contact measurement, measuring leakage current at AC/DC current and 600V line voltage.

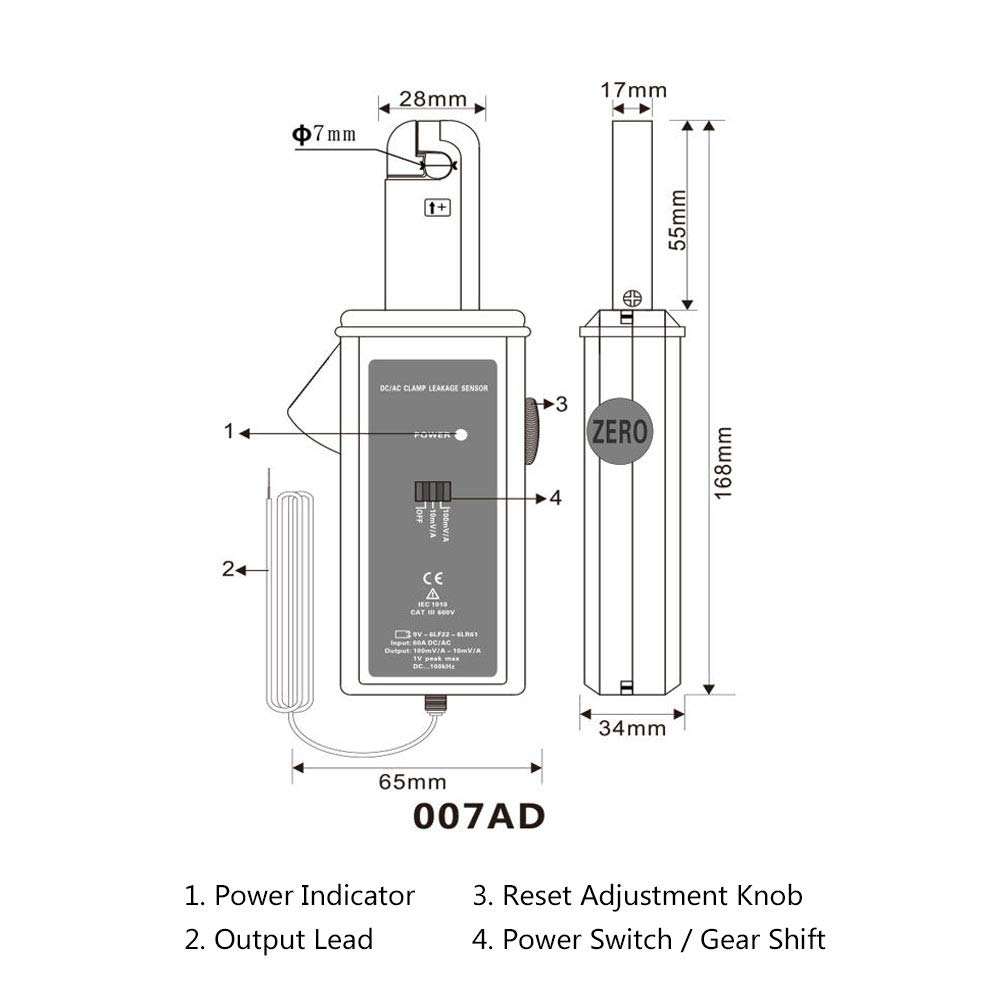

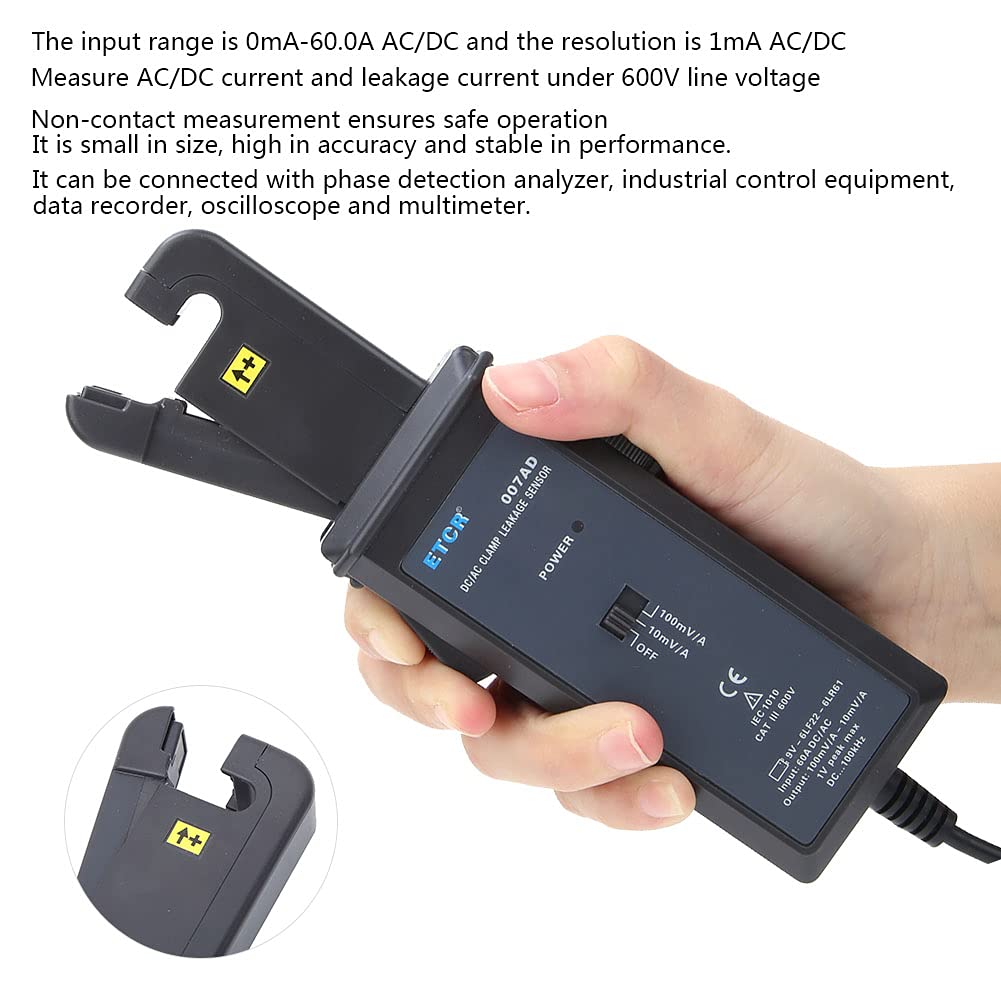

[Specifications] The clamp size of the clamp leakage current sensor is Φ7mm, the input range is 0mA to 60.0A AC/DC, and the resolution is 1mA AC/DC.
[Application] Measurement of AC/DC current and leakage current.

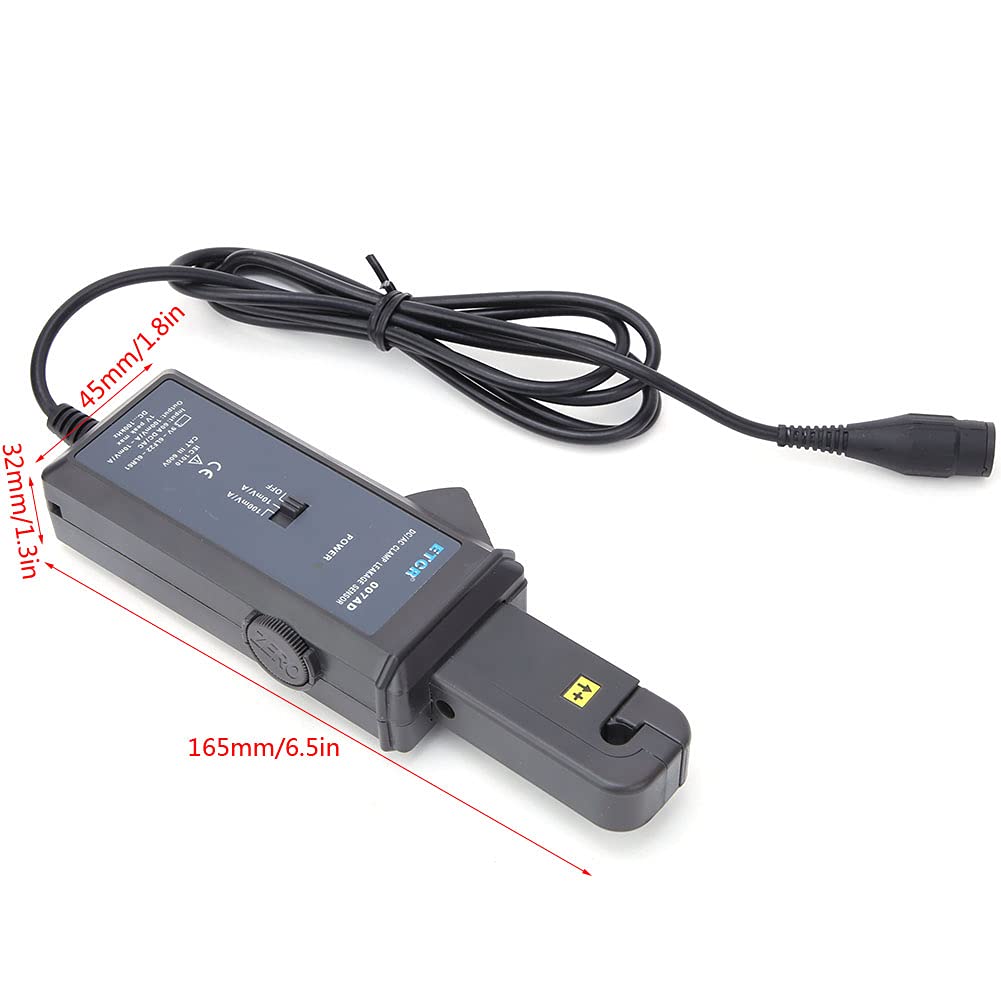

[Portable] The leakage current meter measures approximately 165 x 45 x 32 mm, is small, highly accurate, has stable performance, and is easy to carry.
【Applications】The current tester can be connected to phase detector analyzers, industrial control equipment, data recorders, power quality analyzers, and multimeters. It is widely used in power measurement systems, automatic circuit maintenance, etc.
This sensor is designed to measure AC/DC current and leakage current at 600V line voltages using the latest CT and digital integration technologies. This compact fixture is suitable for use in power measurement systems, high-speed railway systems, and automated circuit service. Its small size, high accuracy, and stable performance allow it to be connected to phase detection analyzers, industrial control equipment, data loggers, oscilloscopes, power quality analyzers, and high-precision multimeters. This sensor is widely used in the power, communications, meteorology, railway, automotive, oilfield, construction, measurement, scientific research, educational institutions, industrial, and mining industries. Powered by a 6RL61, 9V manganese-zinc dry cell battery (sold separately), this sensor can be used continuously for 100 hours or for extended use with an external power source. Test mode: Clamp CT, non-contact measurement. Clamp size: φ7mm. Input range: 0mA - 60.0A. AC/DC output voltage: 10mV/ONE; 100mV/ONE (supported). Output range: Max. 1V peak. Resolution: 1mA. AC/DC accuracy: ±3%FS (23°C ±5°C, 5% RH or less). Phase error: ≤3° (AC 50Hz/60Hz; 23°C ±2°C). Calibration: Prevents interference from external electric fields.
To eliminate this, calibrate by adjusting the zero position. Output wire: Core wire: positive signal output; Shield wire: signal ground. Lead wire length: 2 m. Frequency: DC 400 Hz. Test position: Center of jaw through which test wire passes. Line voltage: AC 600 V. Product dimensions: 165 x 45 x 32 mm. Weight: 168 g. Operating current: 5 mA. Operating temperature and humidity: -10 °C -50 °C, relative humidity 80% or less. Temperature error limit: -10 °C -0 °C and 40 °C -50 °C, within 2% of reading. Storage temperature and humidity: -10 °C -60 °C, relative humidity 70% or less. Dielectric strength: AC 3700 V / rms (between fixture and housing alloy).
