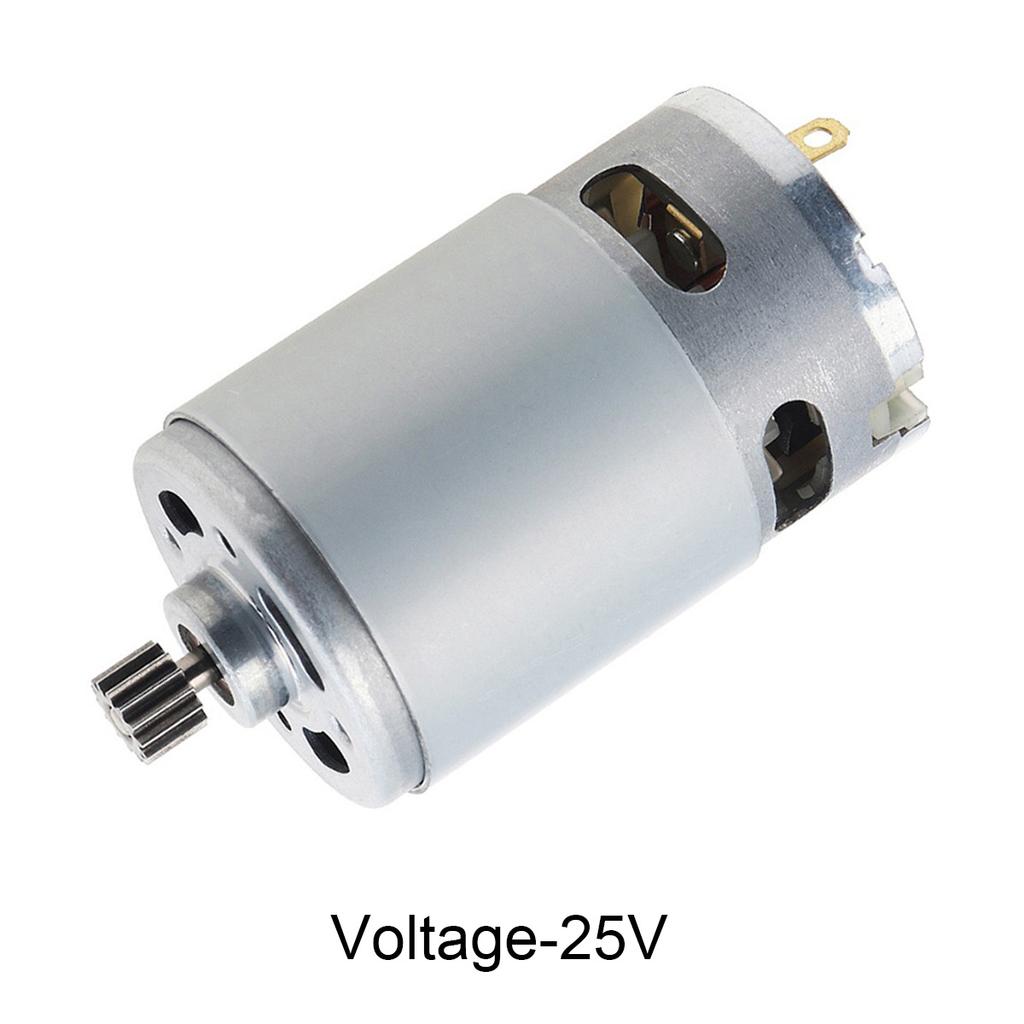

RS550 DC Motor 10.8-25V 14Teeth Gear 25000RPM Electric Saw Micro Motor for DIY Electric Tools with 8.2mm

Product Name: RS550 Micro DC Motor No load Speed: 25000RPM Voltage: 10.8 - 25VDC Commutation: Brush Output Power: 100W Torque: 400 - 480g.c/m Material: Metal Model Number: RS550 Working Current: 7 - 15A

Features:

- Easy to operate, the front can be fixed with 2 x M3 screws, very convenient. - Pure copper coil, low current, high efficiency, strong output power. - It is the best replacement for damaged or rusty motors on your electric tools. - The shell made of stainless steel material, accurate mould, solidly constructed. - Excellent heat dissipation performance, good cooling fan, stable performance. Shaft diameter: 3.2mm Shaft length: 75.1mm Output shaft length: 12mm Diameter: 37.2mm Gear diameter: 8.2mm Gear thickness: 6.8mm Installation hole distance: 25mm Note: - In general, 14 teeth electric tool motor gear has two diameters, 9.5mm or 8.2mm, our product is 8.2mm. please confirm your original motor is diameter before purchase.

Package Including: 1 x DC Motor
