【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------

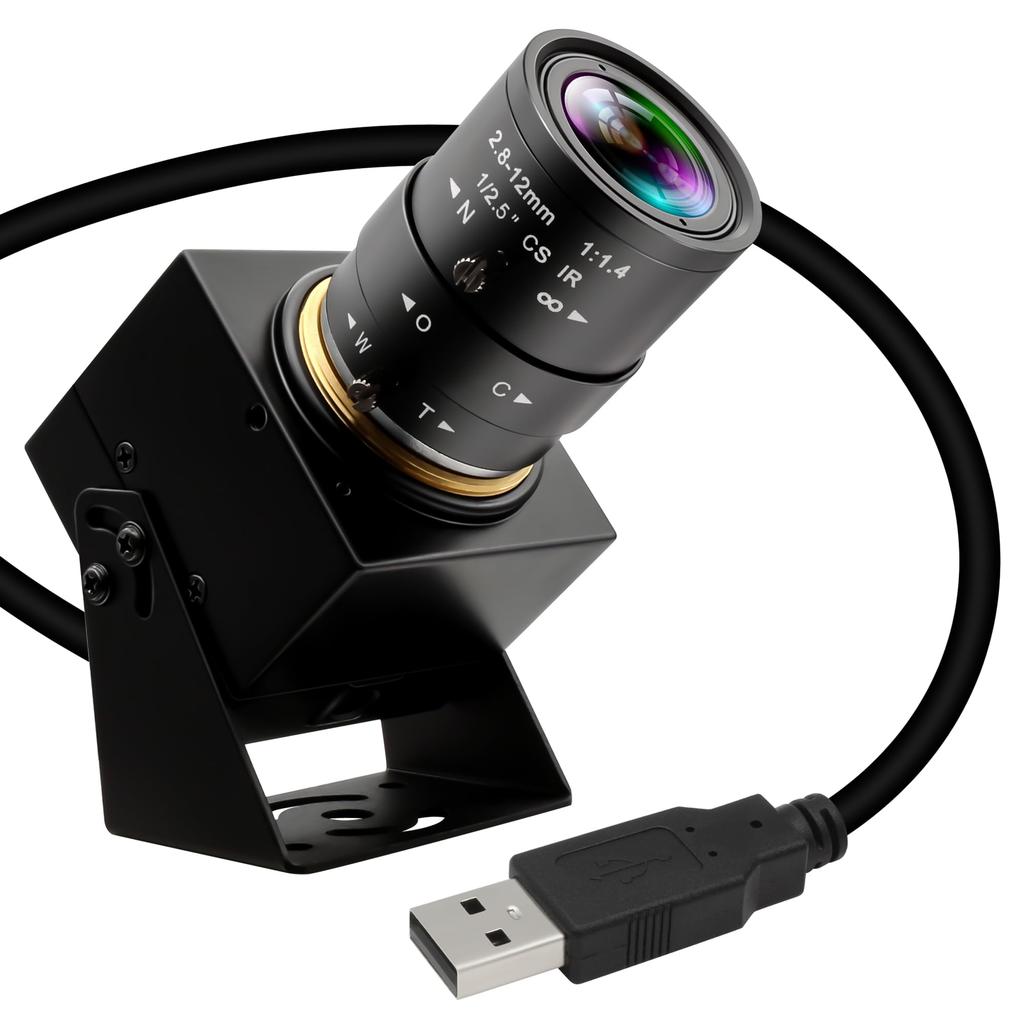

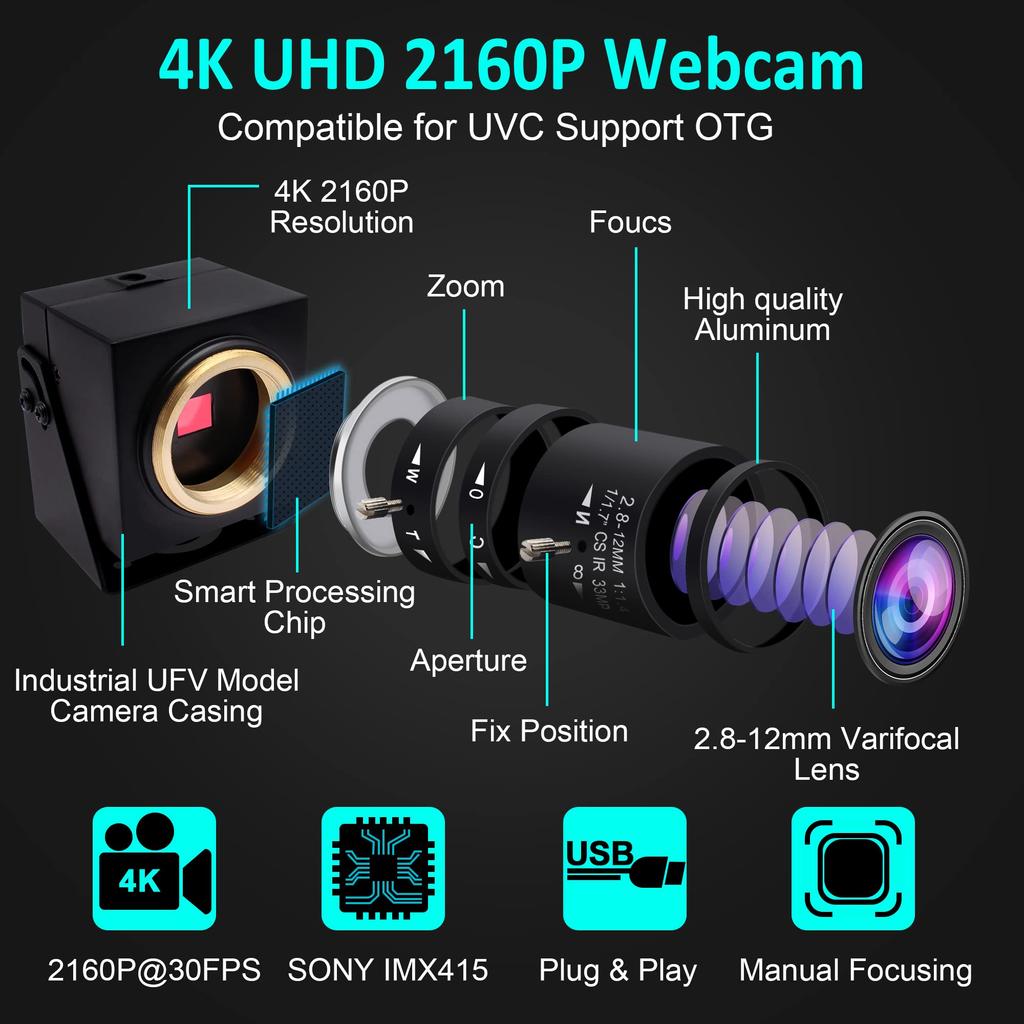

2.8-12mm Manual Zoom Lens: The ELP 4K USB webcam features a 2.8-12mm manual varifocal lens. This provides manual focus, zoom in and out, focus, aperture size adjustment, and control over illuminating the subject, and several screws on the lens allow you to lock them in place. Debugging this camera is quite technical, and different shooting angles will yield different results.

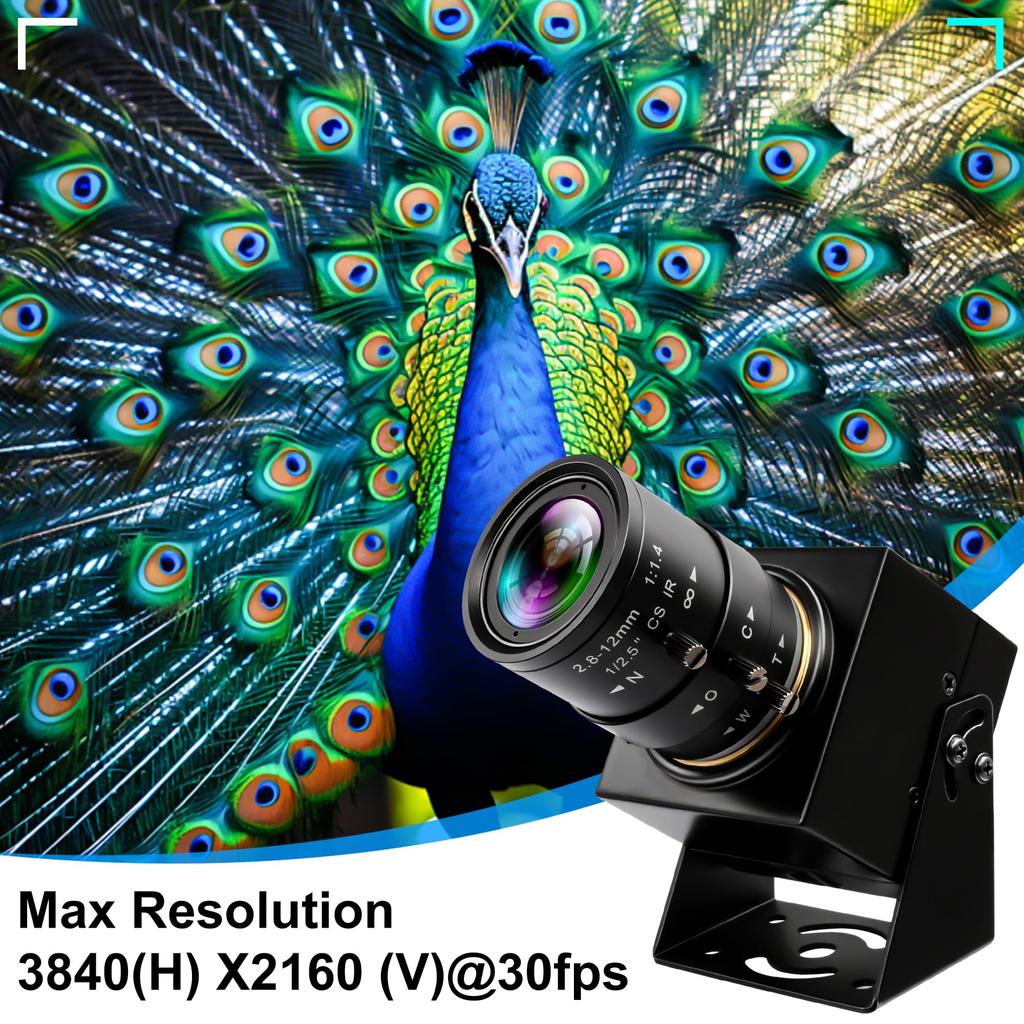

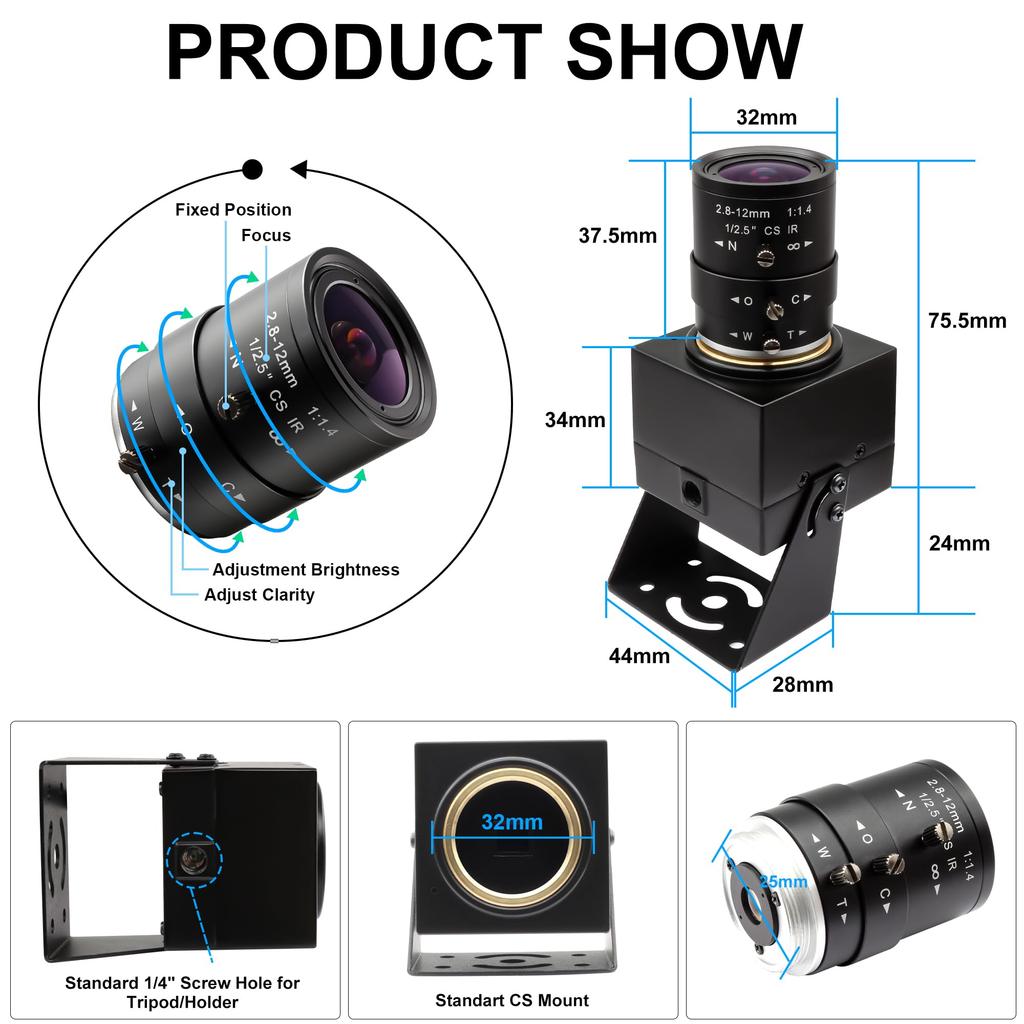

4K Ultra HD USB Camera: High-resolution webcam with 3840x2160@30fps MJPEG, 2592x1944@30fps MJPEG, 2048x1536@30fps MJPEG, and 1600x1200@30fps MJPEG resolutions. High-speed transfer is possible in two image formats: MJPEG and YUY2. Ideal for high-level video systems for personal or industrial use. This mini camera features an aluminum case with a standard 1/4-inch screw hole for tripod mounting, making it easy to attach to desktops and laptops.

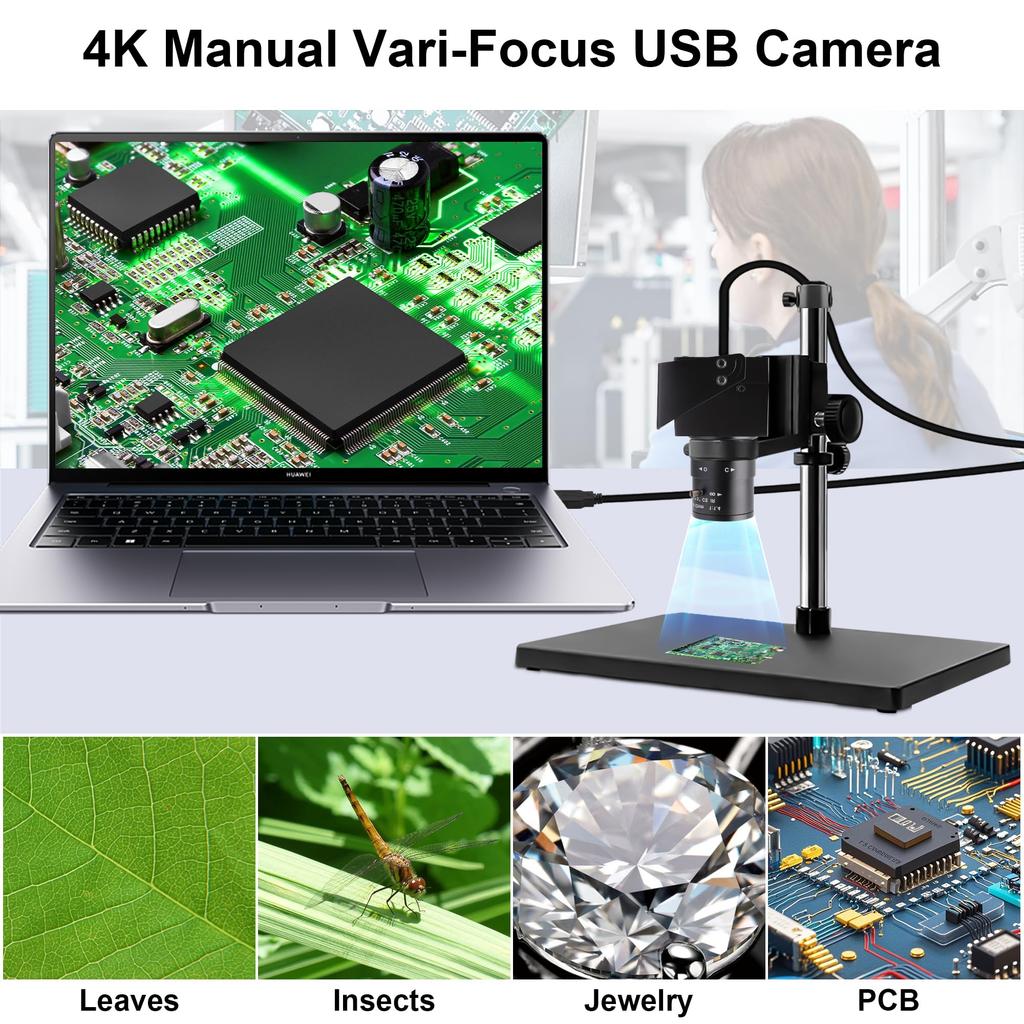

CMOS IMX415 Image Sensor: The 4K USB camera comes with an advanced CMOS IMX415 image sensor, allowing the USB Webcam 4K to deliver exceptionally clear images. It is specifically designed for professional video production, surveillance system manufacturing, and industrial vision. To enjoy the 4K UHD images or videos from this camera, ensure your software and display screen support 4K (some software or screens only support up to 1080P or 720P).
UVC Camera with IR Cut Filter: ELP Ultra HD 4K USB camera with a maximum resolution of 3840x2160, high resolution, low color reproduction deviation, and built-in IR cut filter @650nm provides HD image and video capture with realistic colors. Image purity and high saturation.
Wide Compatibility with Most Systems: The ELP USB camera is easy to set up. It's a USB webcam with a 3-meter USB 2.0 cable. Simply connect the camera's USB port to your computer, run the video software, and you can view and record video. It's compatible with Windows XP/Vista/7/8/10, Linux with UVC (linux-2.6.26 or later), MAC-OS X 10.4.8 or later, and Android 4.0 or later with UVC.
＜ b ＞规范:＜/ b ＞ ＜ br ＞ The model is missing. : ELP-USB4K03-UFV (2.8 -12) ＜ br ＞ Image sensor:SONY IMX415 (1/2.8")
Max. Separation rate: 3840(H) *2160 (V)
Sensitivity: 1000 mv / Lux-sec ＜ br ＞ Image size: 1.45µmx1.45µm
Format: MJPEG / YUY2(YUYV)
Division rate:
MJPEG / 2592x1944@ 30fps MJPEG
2048x1536@ 30fps MJPEG /1600x1200@ 30fps MJPEG
1920x1080@30fps MJPEG/ 1280x960@30fps MJPEG
1280x720 @ 30fps MJPEG / 800 x600 @ 30fps MJPEG
MJPEG / 320x240 @ 30fps MJPEG
YUY2 / 2592x1944@ 1fps
2048x1536@ 3fps YUY2 /1600x1200@ 5fps YUY2
1920x1080@5fps YUY2/1280x960@5fps YUY2
1280x720@ 5fps YUY2 / 800 x 600@ 20fps YUY2
640x480@ 30fps YUY2 / 320x240@ 30fps YUY2
Center fixed: 1000LW/PH (center)
Confidence ratio: 30dB
Sensitivity: 0.65 v / lux-sec@550nm ＜ br ＞ Minimum illuminance: 0.2lux
Type of access:Electronic gate/wall exposure
Connecting end type: USB2.0 high speed
Atomic Energy Commission: Support＜ br ＞ AEB: Support＜ br ＞ Automobile Enhancement Benefit Control System: Support＜ br ＞ Number of available options:
Brightness, brightness, hue, suffocation, lightness, white balance, light exposure
Number of mirror heads: 2.8-12mm,
Red wave generator: 650±10nm
Power source & connection: USB BUS Power 4P-2.0mm square
Power source: DC5V
Electric current: 200mA
Temperature: -20℃~70℃
Working temperature: 0°C ~ 60°C
USB cable: 3M
Operation system support:
windows XP/Vista/Win7/Win8 / Linux UVC (Linux -2.6.26 or higher) MAC-OS X 10.4.8 or higher version/Android 4.0 or higher version, UVC
