1. High adjustability: The output voltage of the boost module can be adjusted by the regulator to meet the voltage requirements of different devices, which is very suitable for the electronics industry, such as drones, robots, power tools, etc.
2. High efficiency: efficient boost conversion capacity, can better improve the efficiency of equipment, reduce energy waste.
3. Safety and stability: it can provide electric energy for the equipment stably and safely, and avoid damage caused by voltage problems.
4. Compact structure: small size, easy to integrate and carry equipment.
5. Easy to install and use: with corresponding wiring terminals, convenient and fast wiring, no other complicated operations.
Specification:

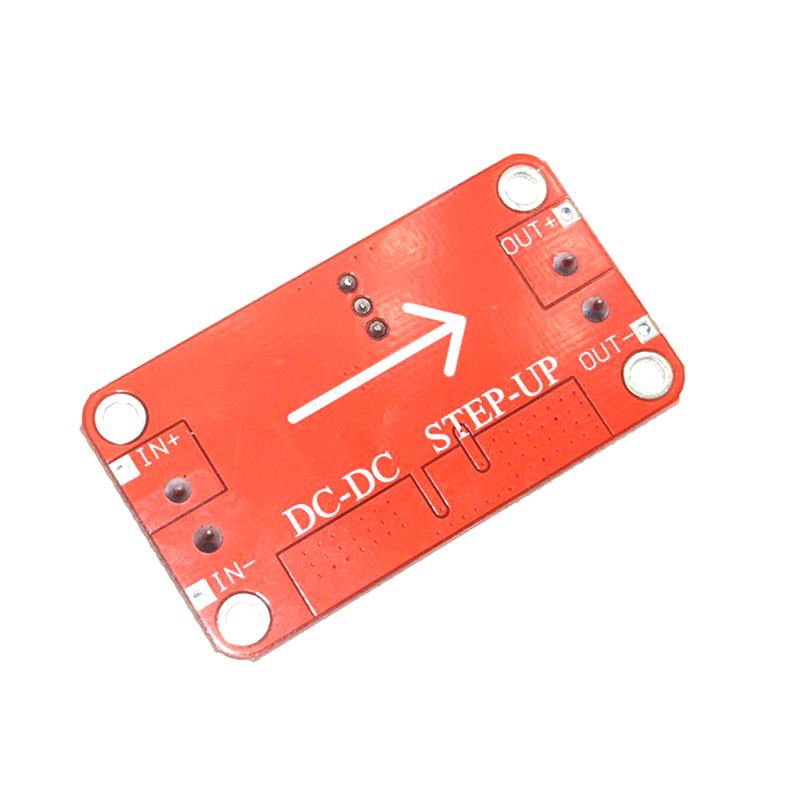

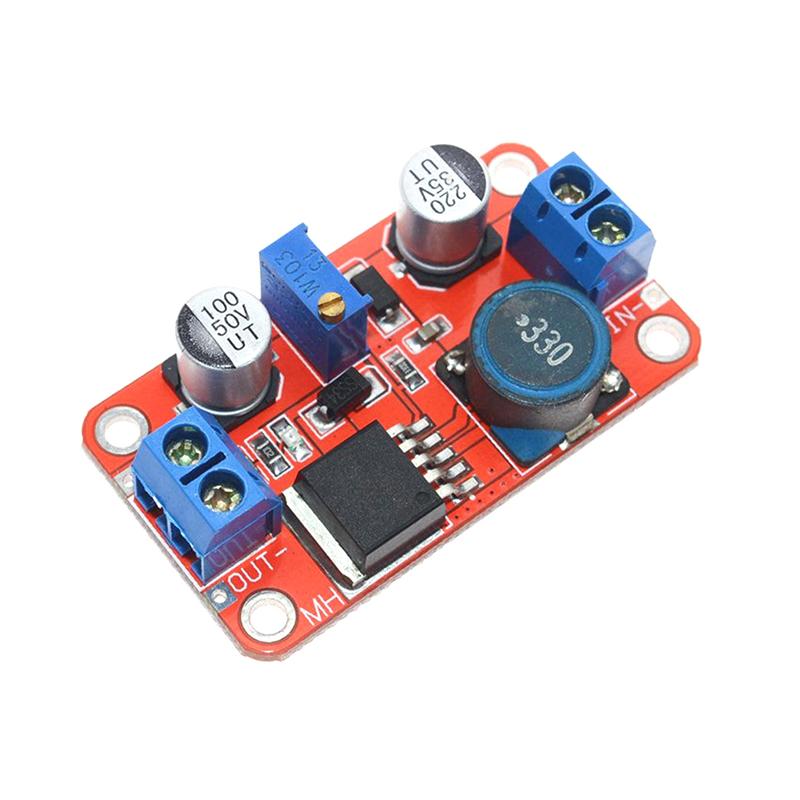

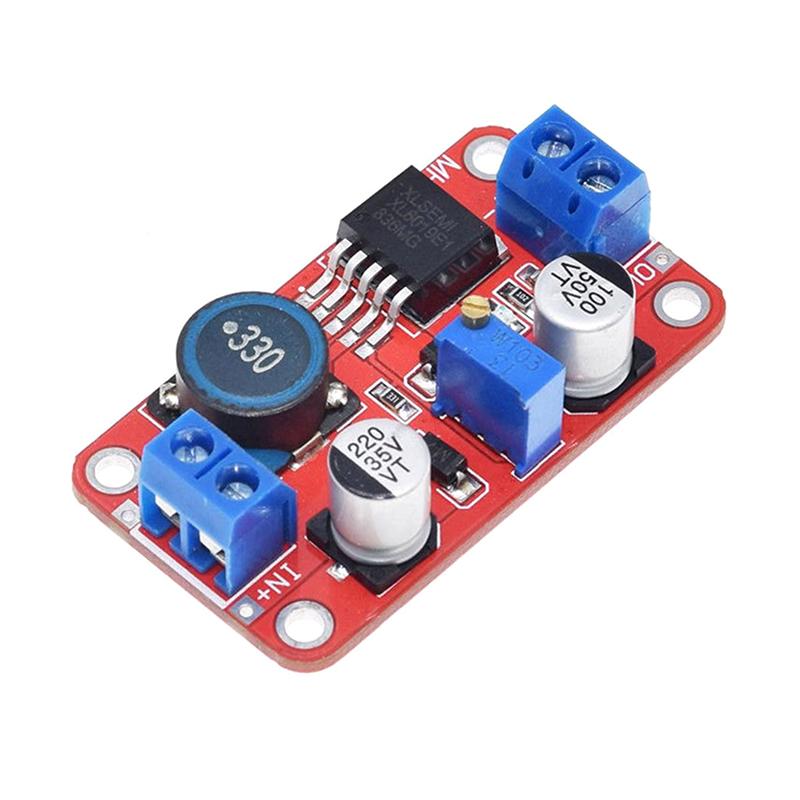

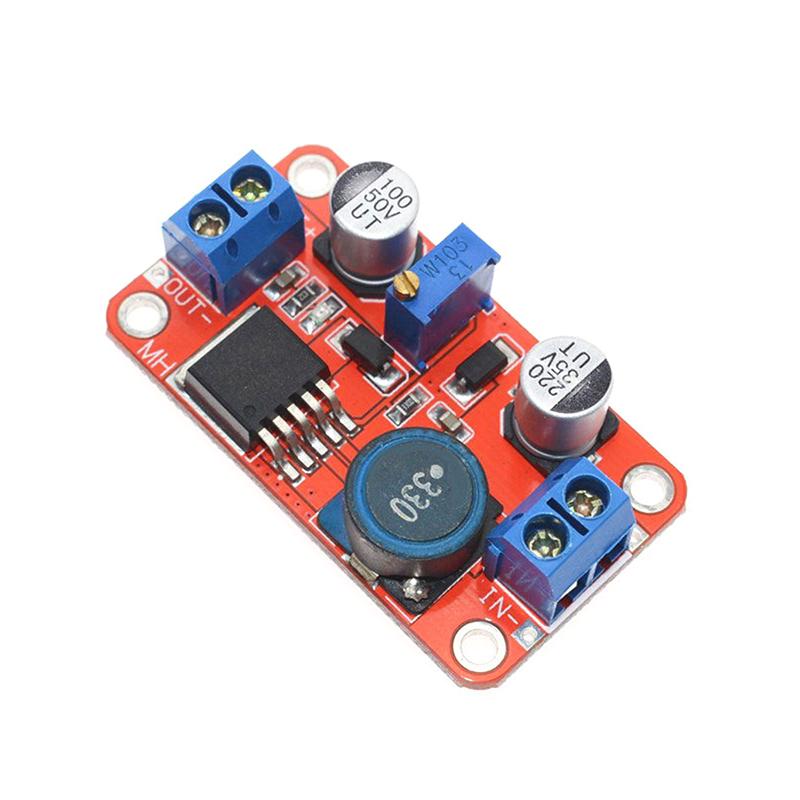

1.Module feature:XL6019 step up module
2.Module type:Non-isolated boost
3.Rectification method:Non-synchonous rectfication
4.Input voltage:3V-35V
5.Output voltage:5V-40V(notes can not step down voltage)
6.Input current:3A(maximum 5A)
7.Transfer efficiency:94%(The highest)Normal efficiency for 85%
8.Switching frequency:220KHz
9.Output ripple:<100mV
10.Load regulation:+-0.5%
11.Voltage regulation:+-0.5%
12.Operating temperature:-20°~+85°
13.Size:5cmx2.8cmx1.2cm
Package included:
1 * Boost Module
Note:
1. Due to the light and screen difference, the item's color may be slightly different from the pictures.
2. Please allow slight deviation for the measurement data and make sure you do not mind before ordering.
