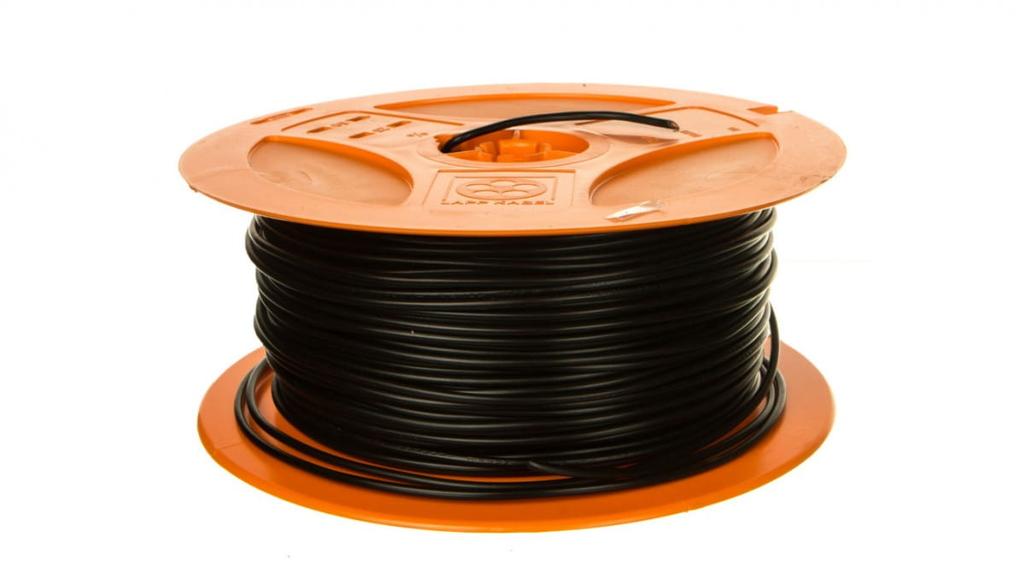

Installation Cable H07V-K 1.5 Black 4520011S /150m/

Halogen-free EN 50267-2-2: No CN: 85444995 Permissible cable temperature for flexible applications [°C] d: 70 Permissible cable temperature for flexible applications [°C] o: 5 Permissible cable temperature for permanently installed applications [°C] up to: 80 Permissible temperature of permanently installed cable [°C] from: -30 Length: 215 EAN: 4044773430820 Screen: No Manufacturer's index: 4520011S Core insulation: PVC Core class: Class 5 = flexible Insulation color: Black Nominal voltage U [kV]: 750 Nominal voltage U0 [kV]: 450 Low smoke emission (according to EN 61034-2): No Low temperature resistance (according to EN 60811-1-4): No Oil resistant (according to EN 60811-2-1): No Approximate outer diameter [mm]: 3.4000 Approximate cable weight [kg/km]: 22 series: H07V-K Width: 210 Weight: 3.3000 Height: 95 Nominal conductor cross-section [mm2]: 1.5000
