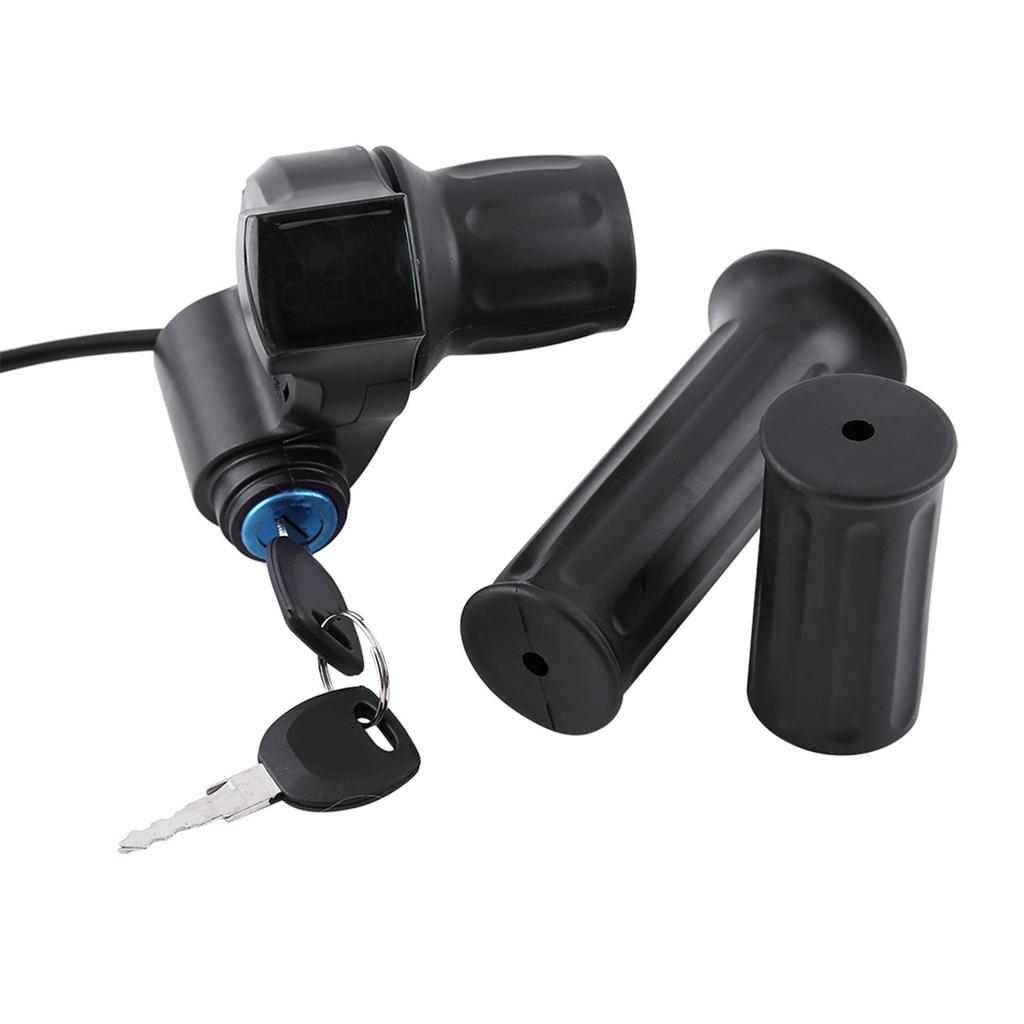

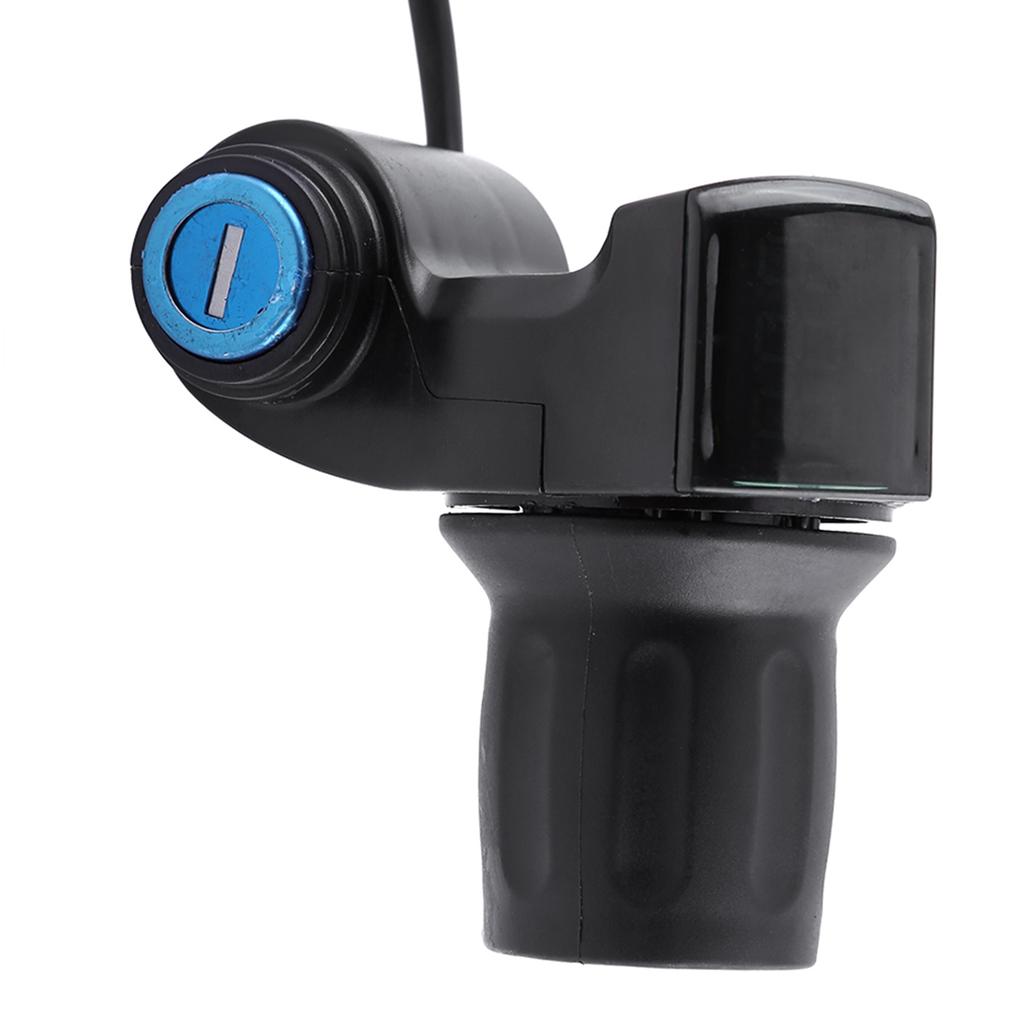

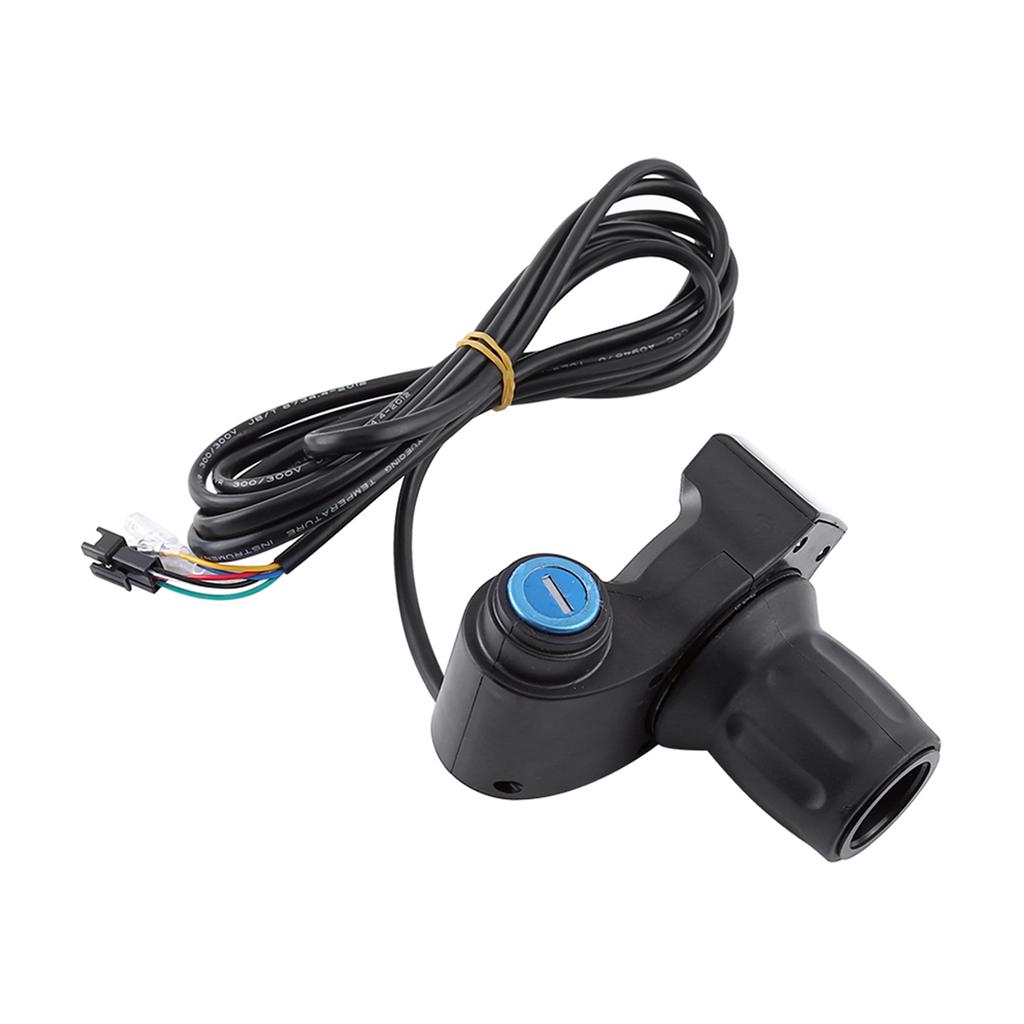

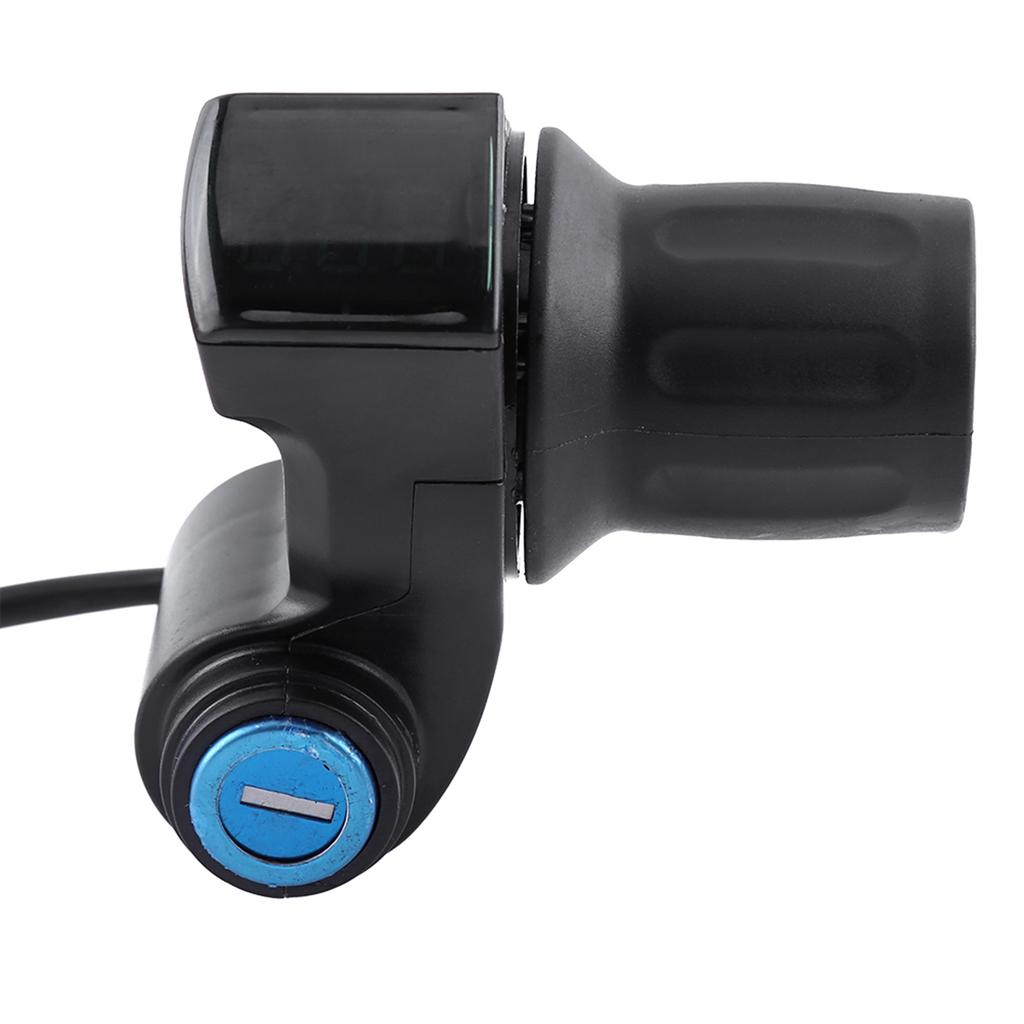

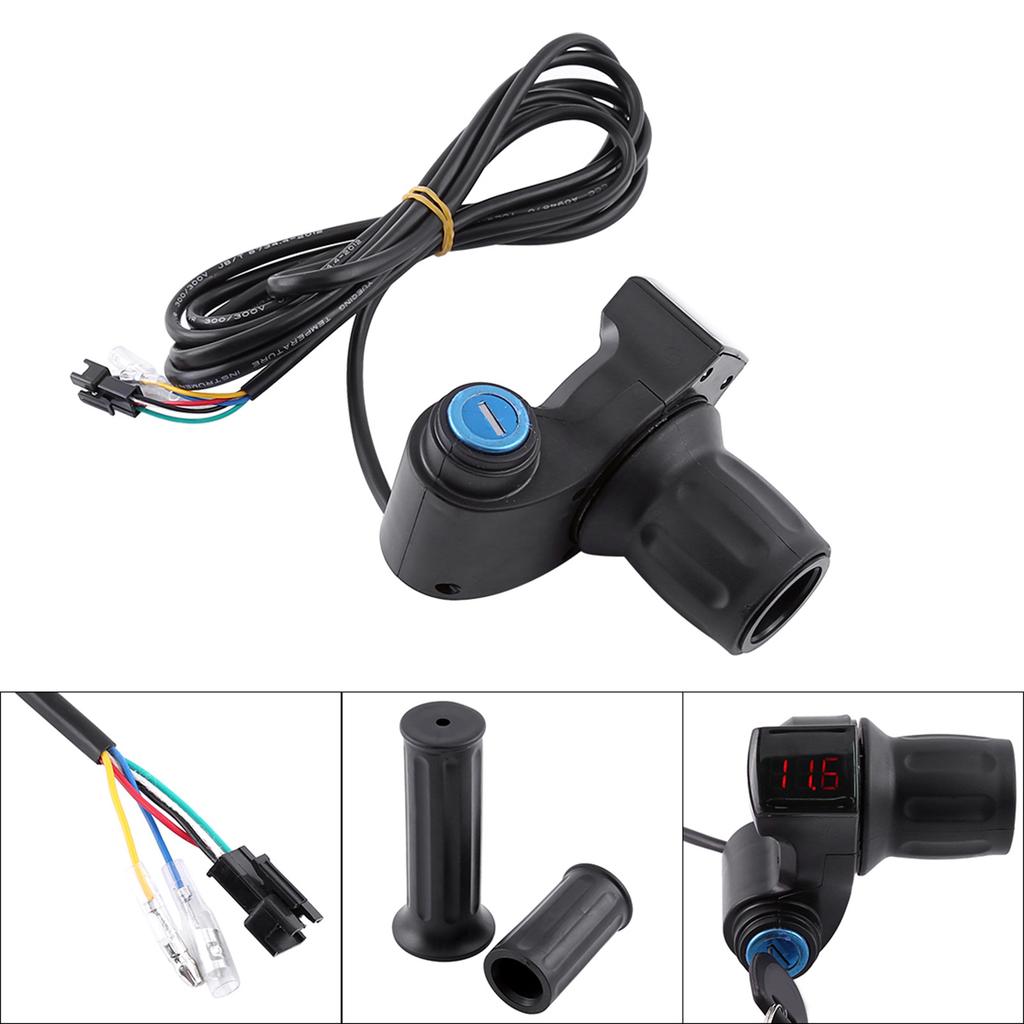

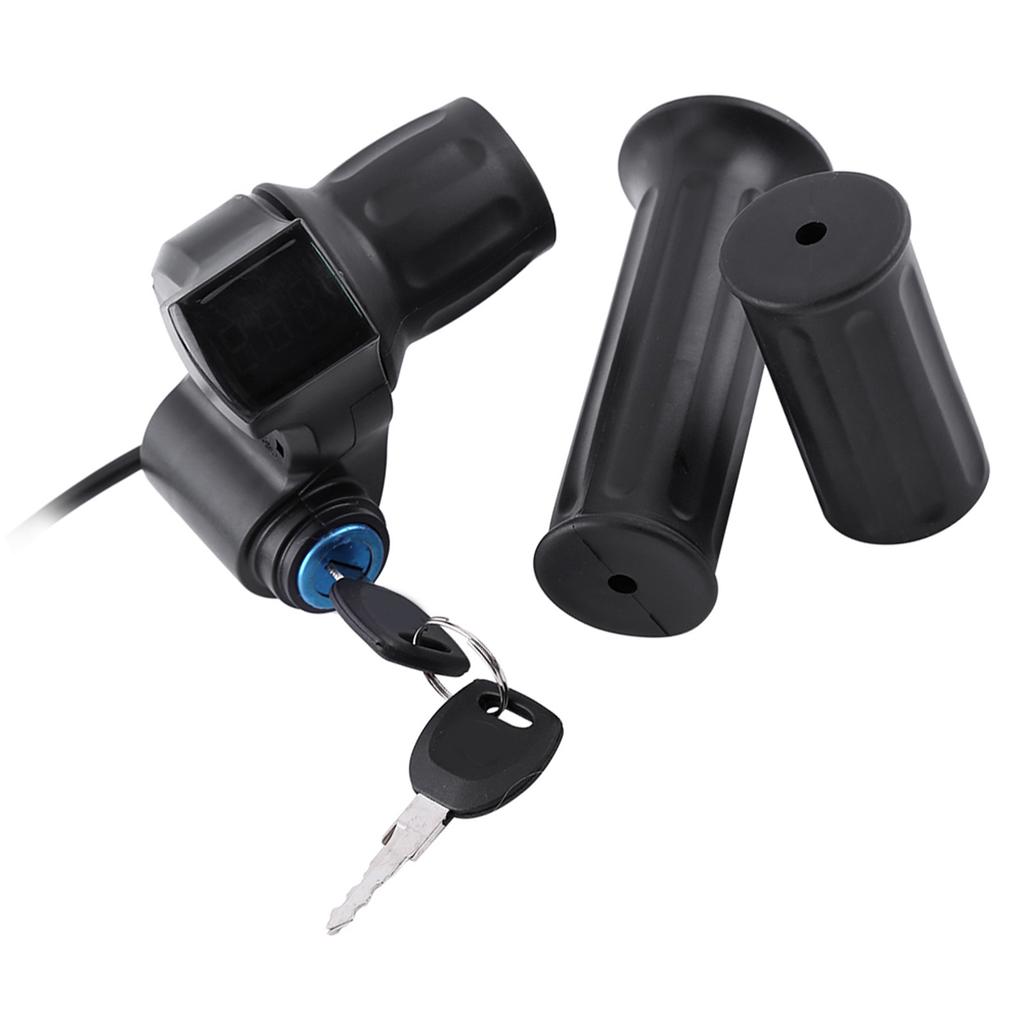

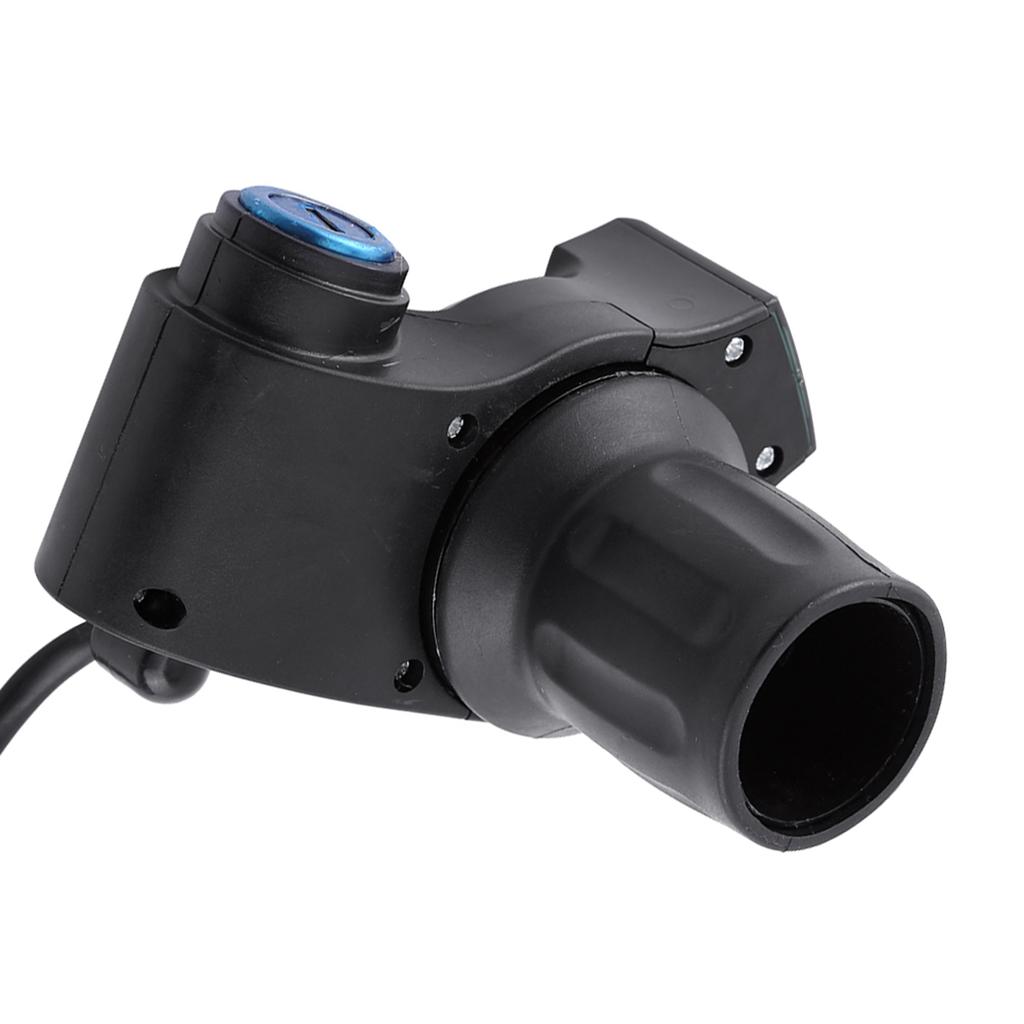

Electric Bike Throttle Display Handle Button for Voltage Identification

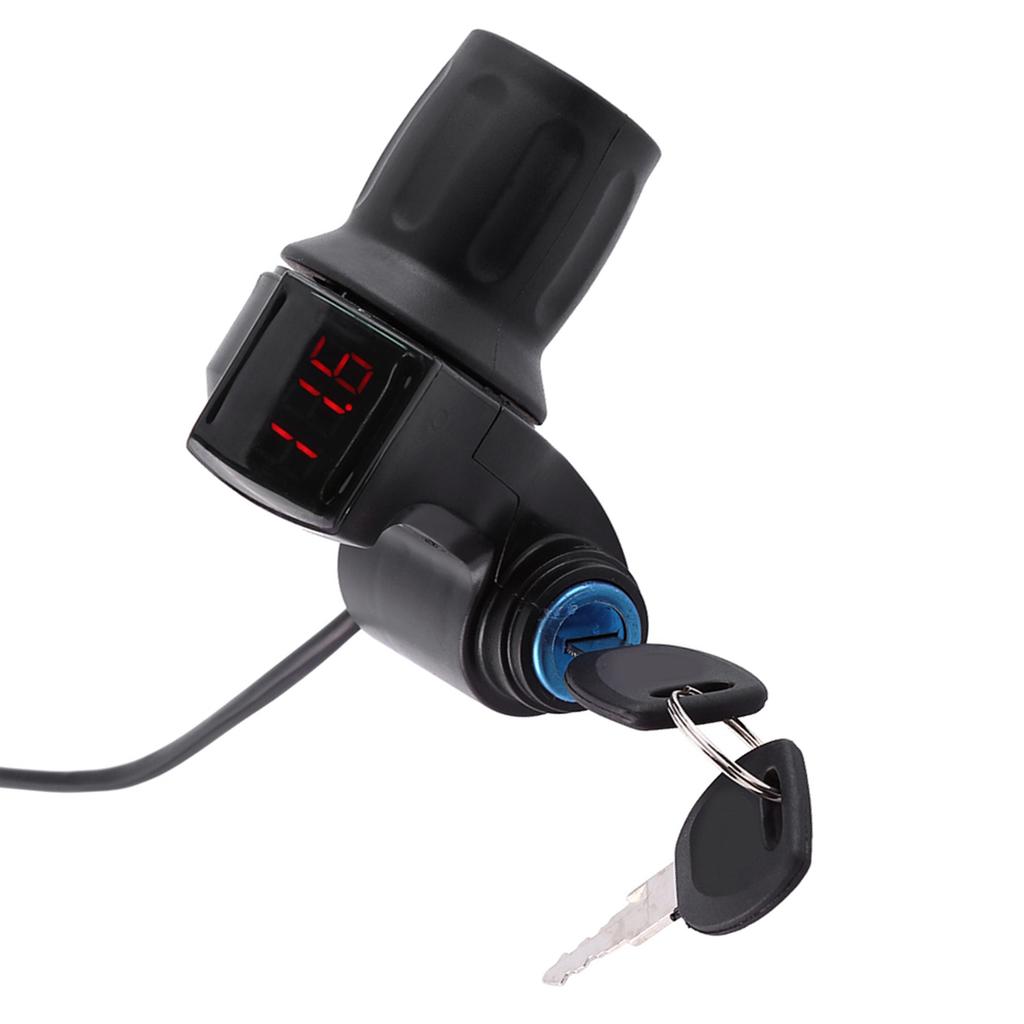

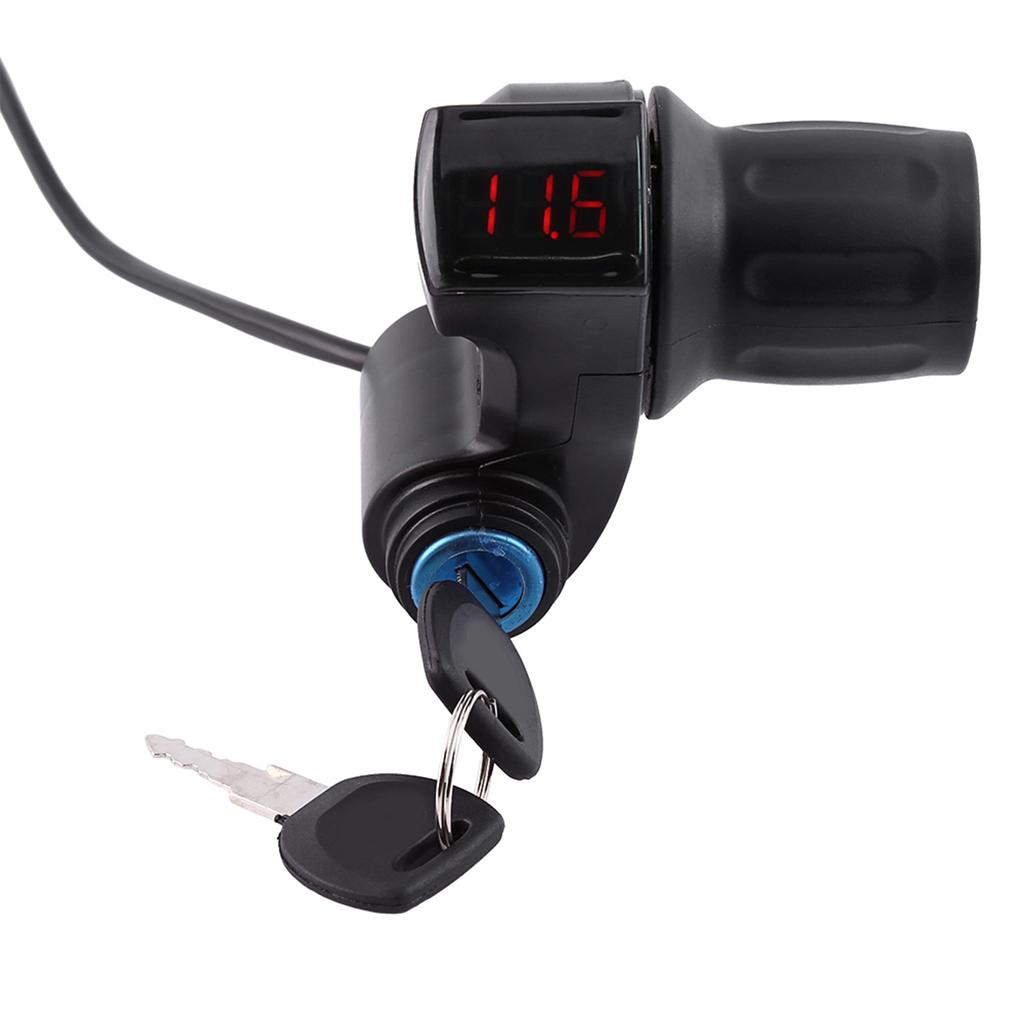

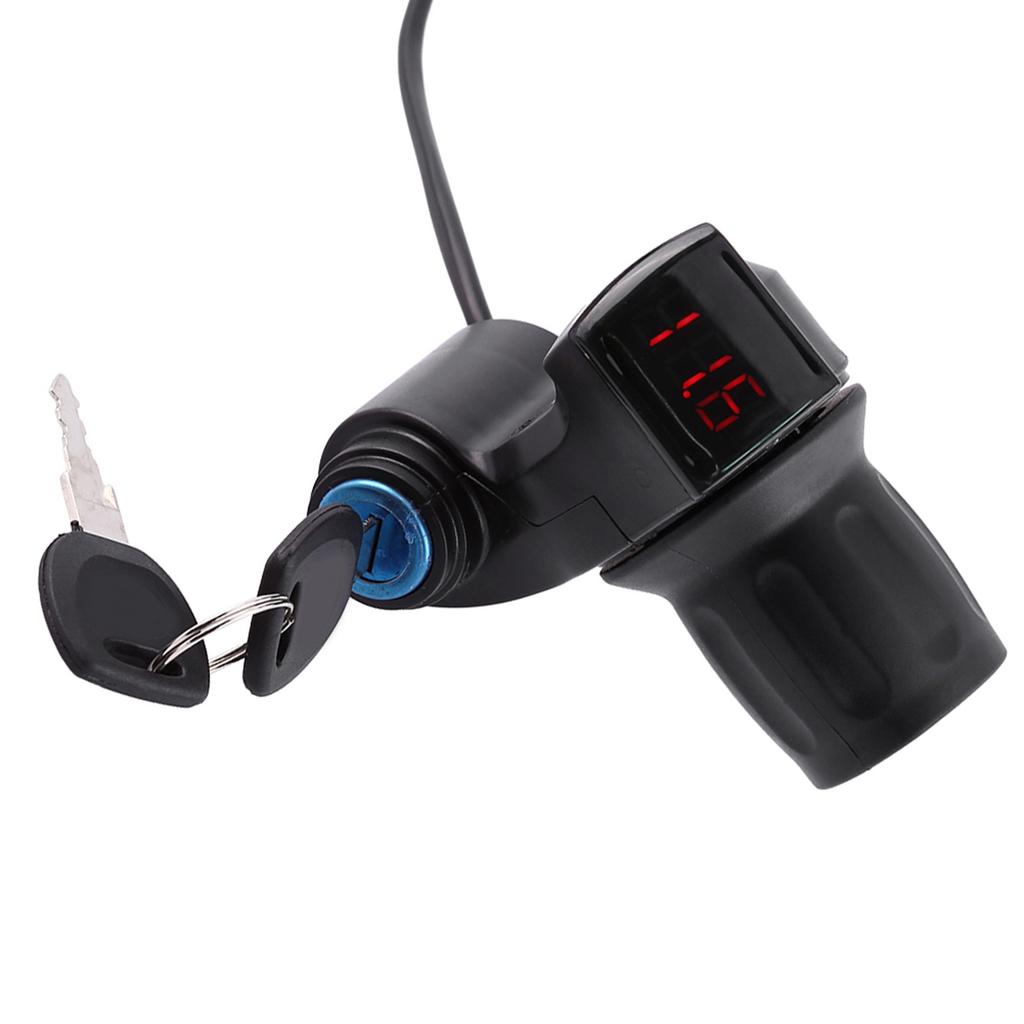

voltage, fit for 12-84V electric bike or scooters, can identify voltage automatically, timely indicating By turning the rl-time voltage value can accurately determine the amount of the remaining amount of electricity To avoid traveling on the way without electricity and accurate judgment of the lithium battery is damaged Description: The digital data display, not that common analog signal display, which can accurate judge rest battery and rest distance can indicate vehicle error according to voltage. This throttle indicates battery by digital data display, you can judge your rest battery according to your battery voltage, can also check your battery condition after you d it full. It is a throttle for electric bike, scooter , tricycle, and other electric vehicle. Ftures: 1. voltage, fit for 12-84V electric bike or scooters, can identify voltage automatically, timely indicating. (12V, 24V, 36V, 48V, 60V, 72V electric vehicles can be used directly, part of the 84V electric vehicles can also be used.) 2. By turning the rl-time voltage value can accurately determine the amount of the remaining amount of electricity. 3. To avoid traveling on the way without electricity and accurate judgment of the lithium battery is damaged. 4. By turning the rl-time voltage value can accurately determine the quality of lithium battery. 5. Automatic to identification electric vehicles' voltage under 100V, used and rl-time display. 6. throttle for electric bike, scooter , tricycle, and other electric vehicle. Specifications: Material: ABS + PVC Color: Black Package Weight: approx. 320g Type: Half digital data throttle with lock Wire Length: approx. 1.6m / 63.0" Install Hole Diameter: approx. 2.3cm / 0.9" Working Voltage: Throttle 1-4.2V, battery indicator, 12-84v automatically identitify Conpatible With: Suitable for 12V-99V Electric Fitment: Fit for 22.2mm diameter handle Five Wires Connection:  Yellow is for power positive Blue is for for controller power positive or electric , or key lock Three throttle wires: Red is for throttle positive + 5v Green is for throttle signal wire Black is for throttle negative Package Included: 2 x Handlebars (1pc right handle, 1pc left handle grip) 2 x Keys Note: 1. Digital data acquisition and display is more accurate and timely, you can check 'the rest battery , whether battery is broken the battery quality and it is sy to install. 2. When installing the non professionals, plse pay attention to the line order, can not be connected to the wrong line, otherwise it is very sy to cause the burning of Holzer and LED tube. 3. Plse allow 1-3cm error due to manual msurement. Thanks for your understanding. 4. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the rl object. Plse in kind prevail. Common sense for battery voltage Different battery materials, new/old condition of battery, and different controller data make battery voltage reflects differently. Plse check your battery voltage data according to your battery. The imum voltage indicates full . The low voltage indicates that the battery is exhausted. 12V voltage 12V, min voltage 9V 24V voltage 29V, min voltage 21V 36V voltage 42V, min voltage 29V 48V voltage 54V, min voltage 39V 60V voltage 72V, min voltage 49V 72V voltage 84V, min voltage 70V Installation : With the car key , yellow wire connected to the battery +, blue line controller car key wire +. The car key can not be used directly as the main power . Otherwise it will burn the wiring harness! Remember! The key is to turn on and off the power supply of the vehicle by controlling the internal electronic circuit of the controller.
