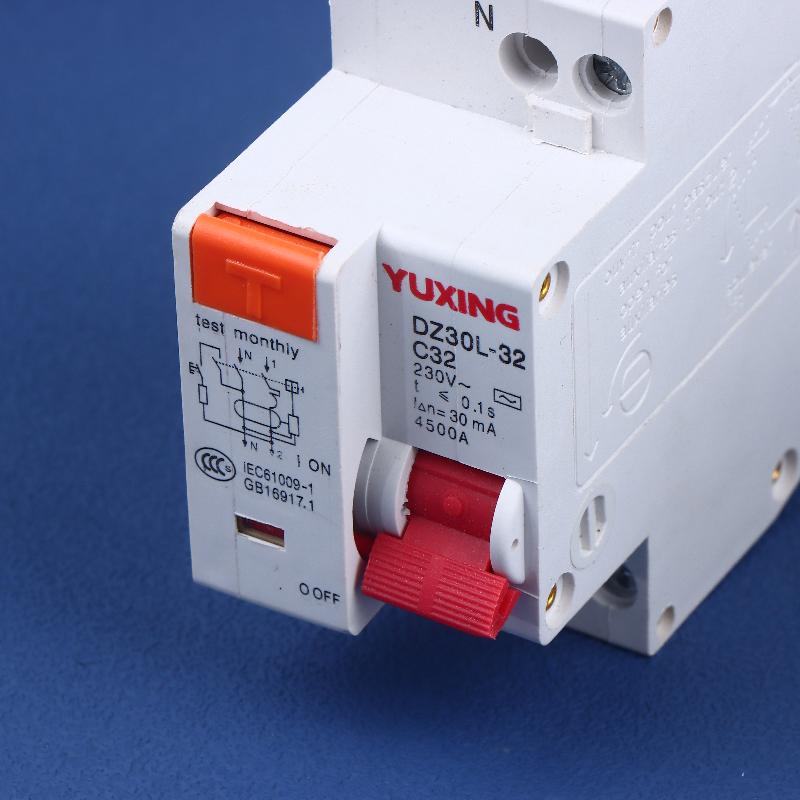

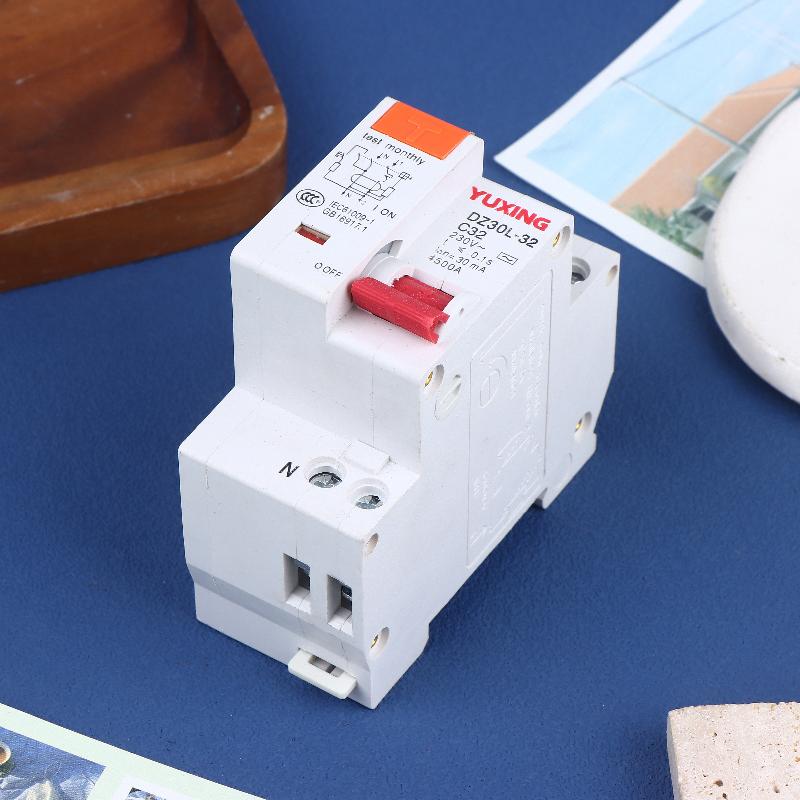

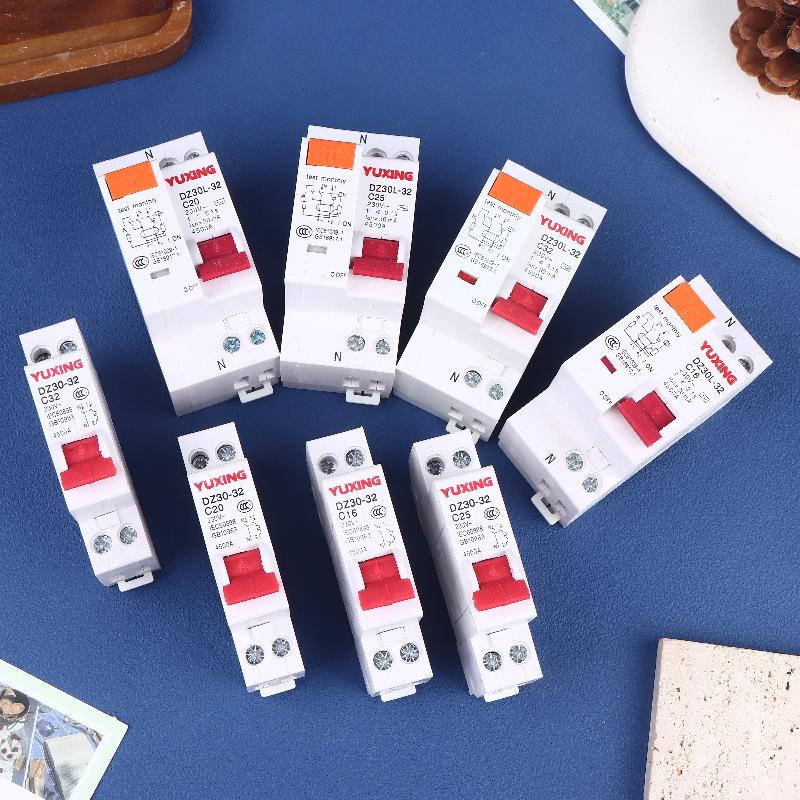

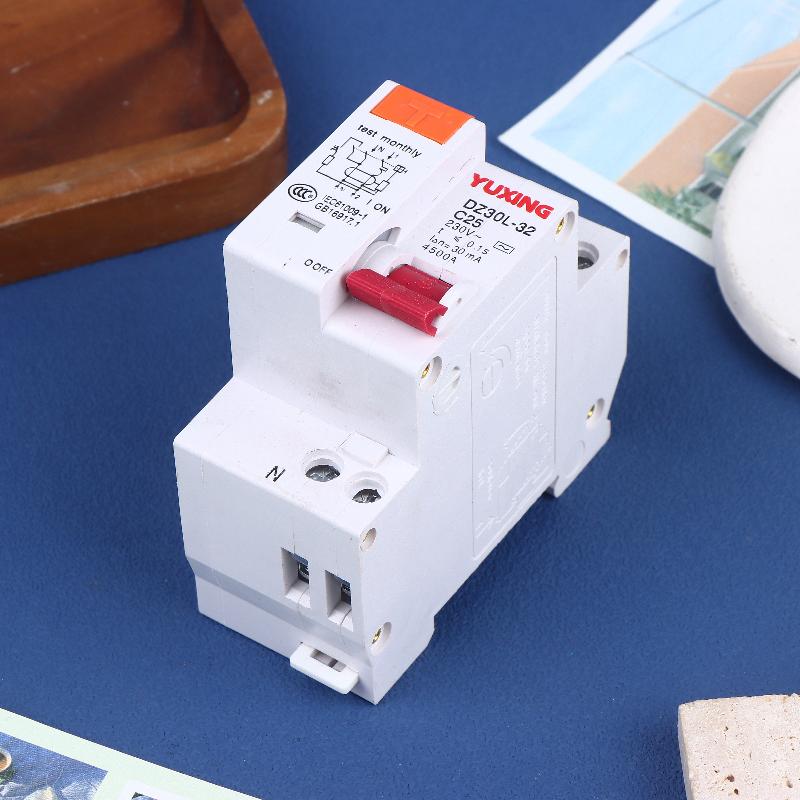

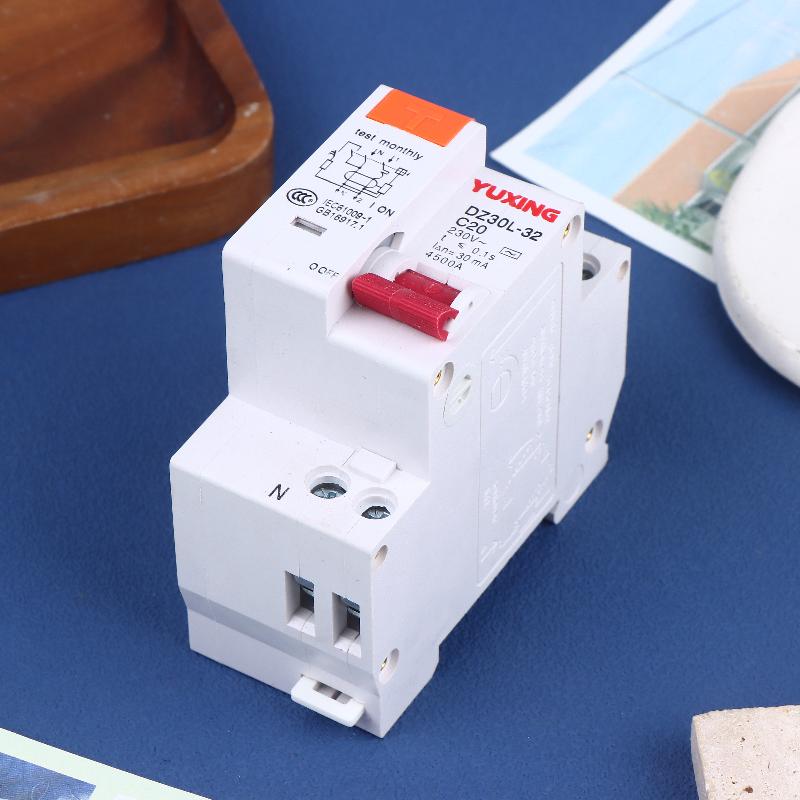

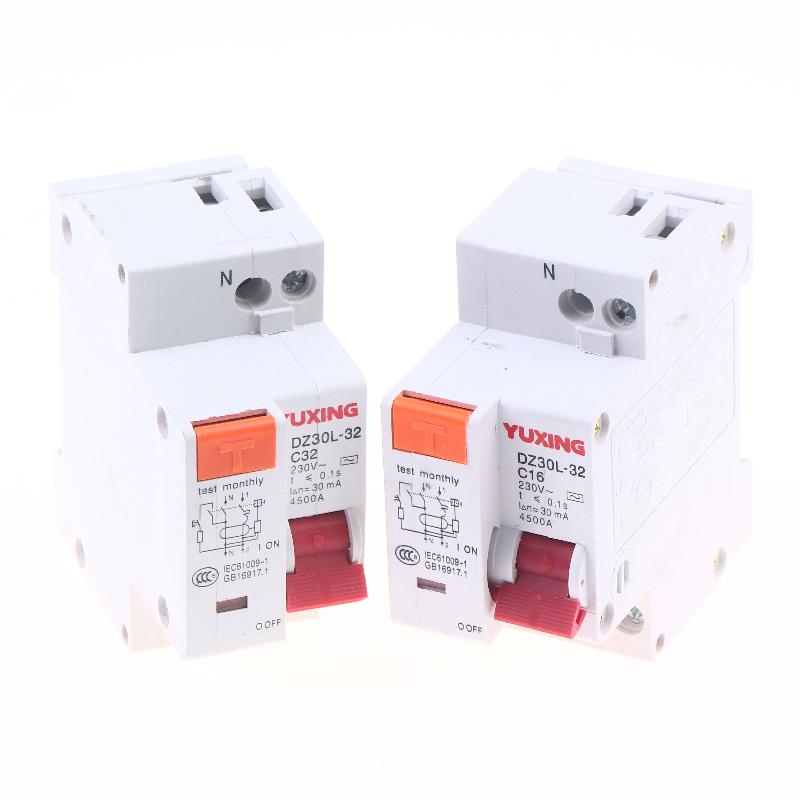

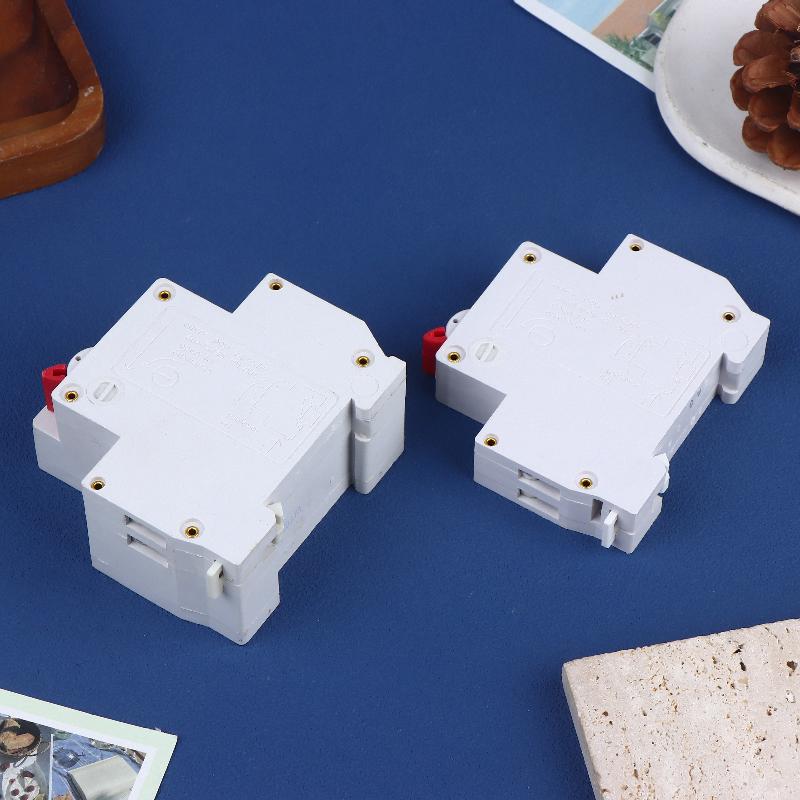

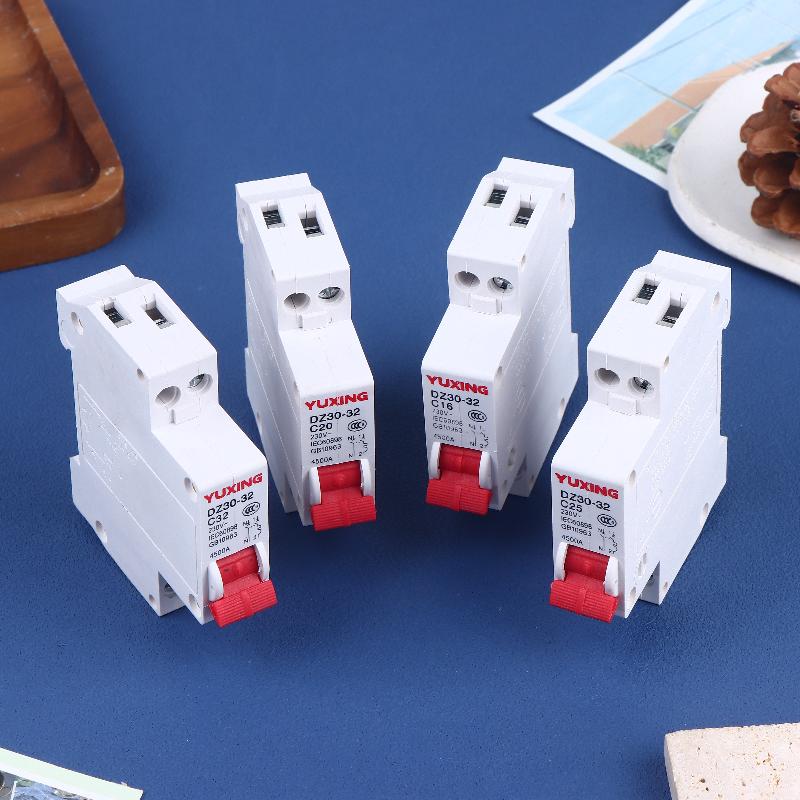

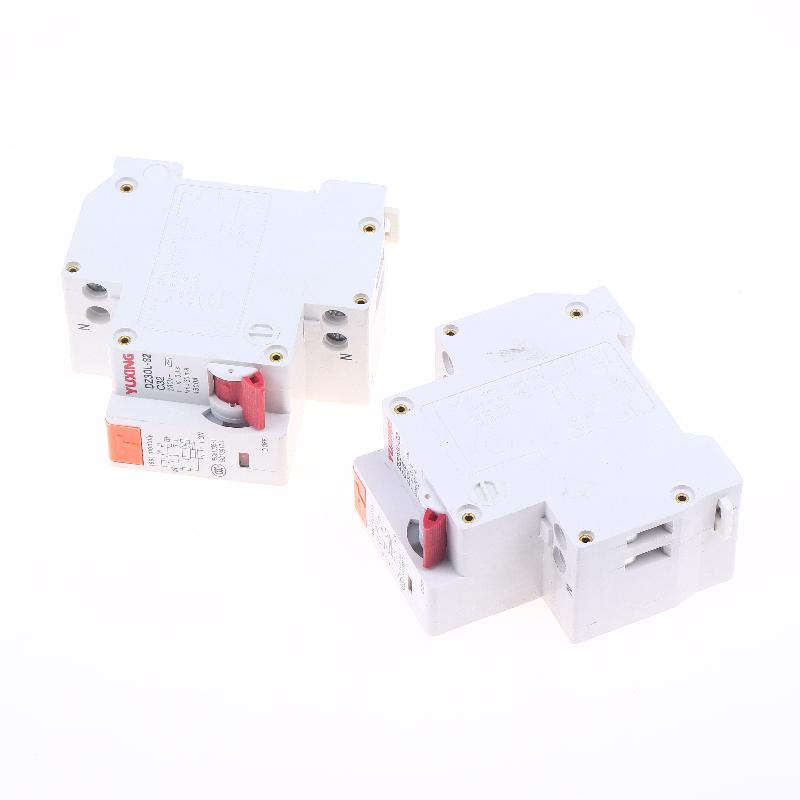

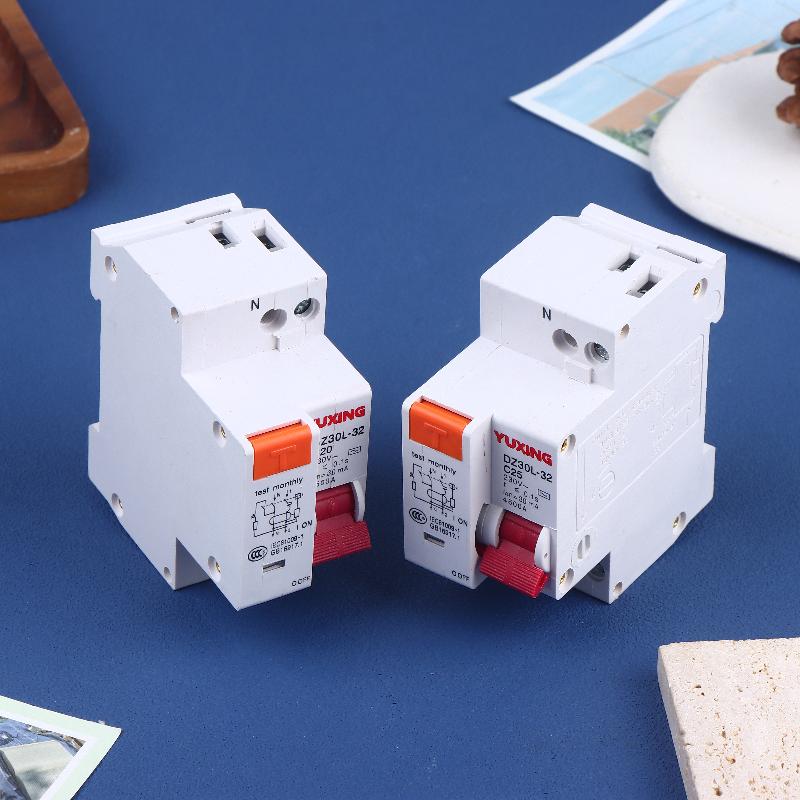

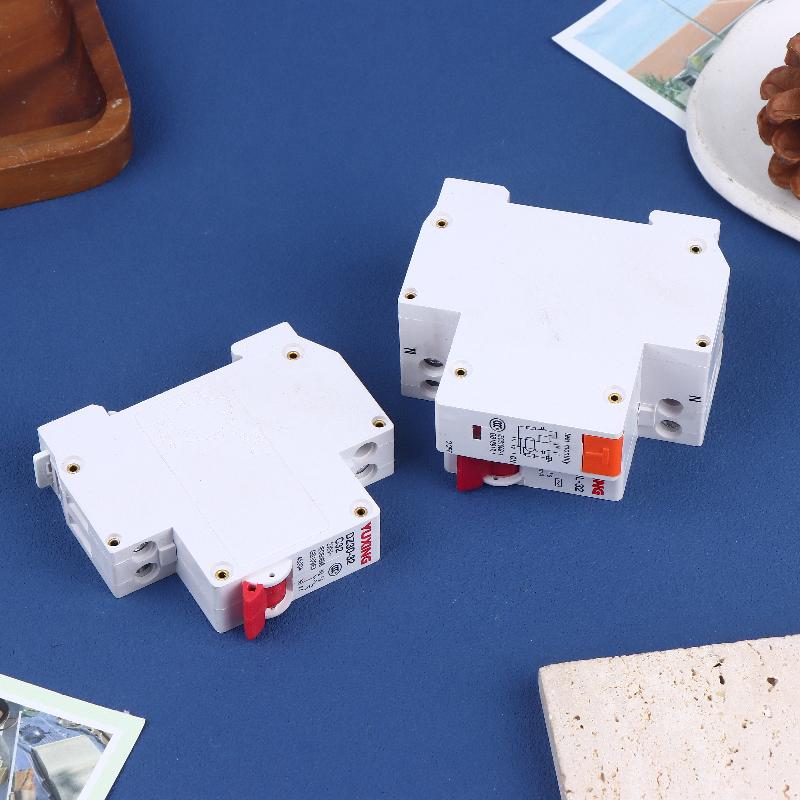

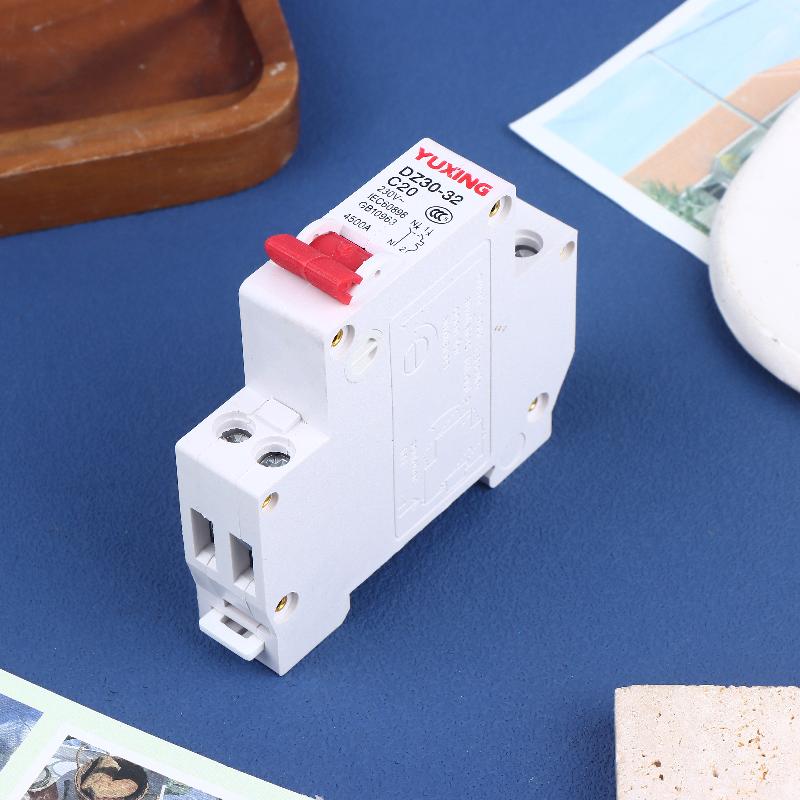

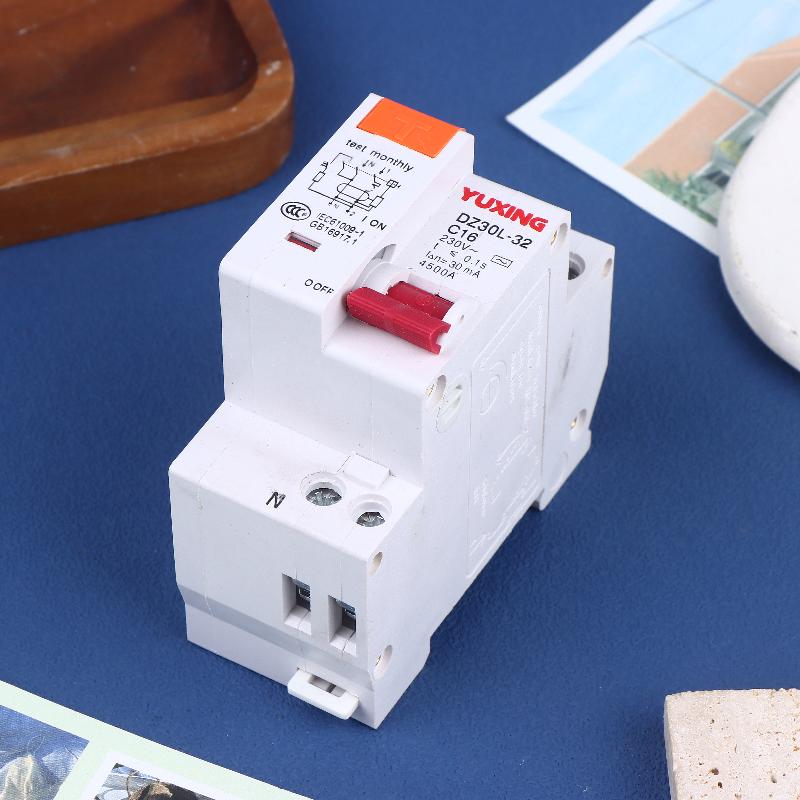

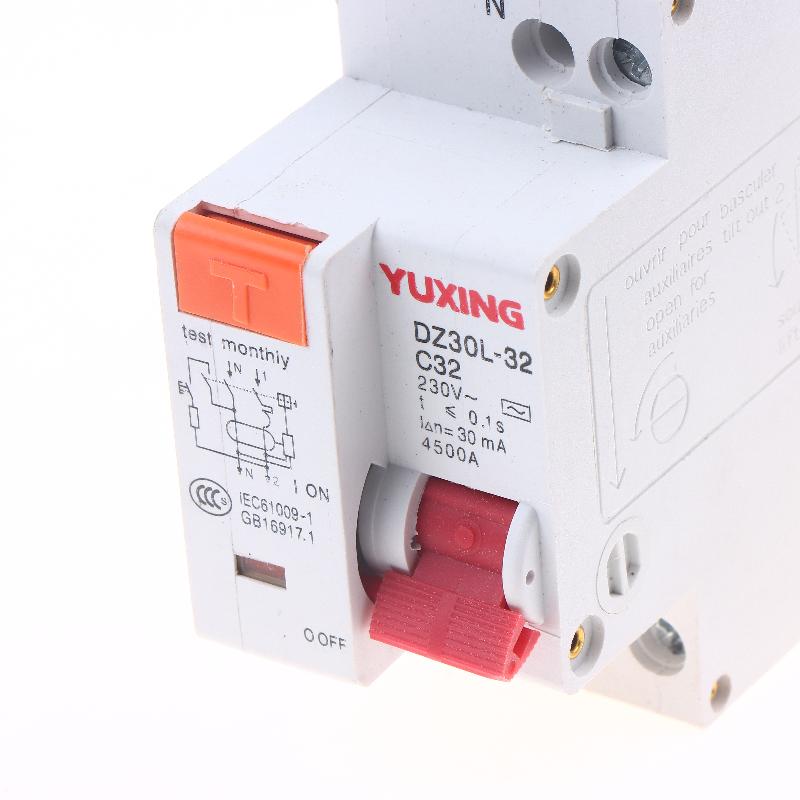

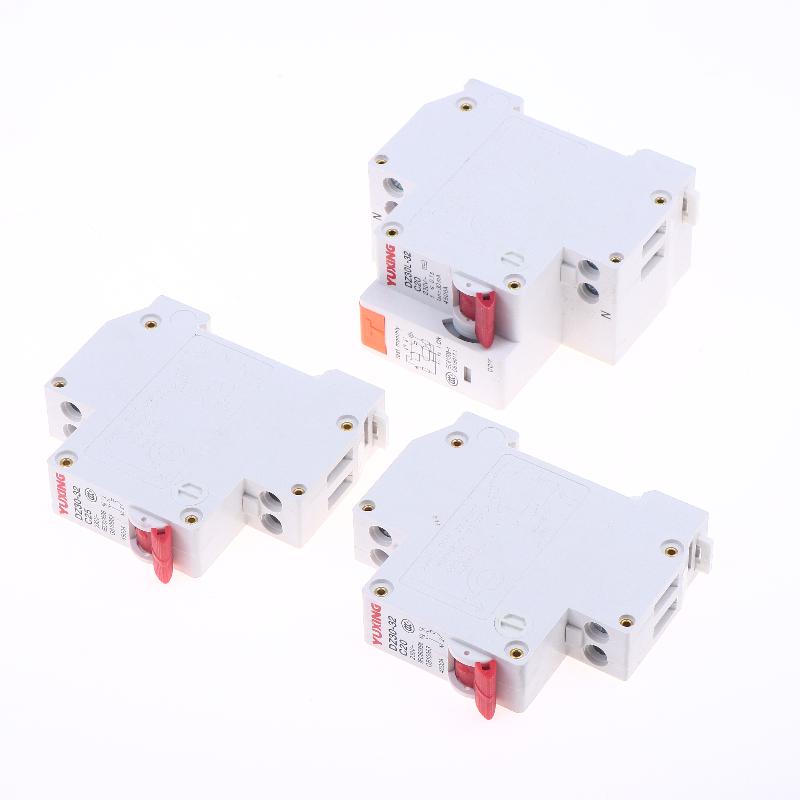

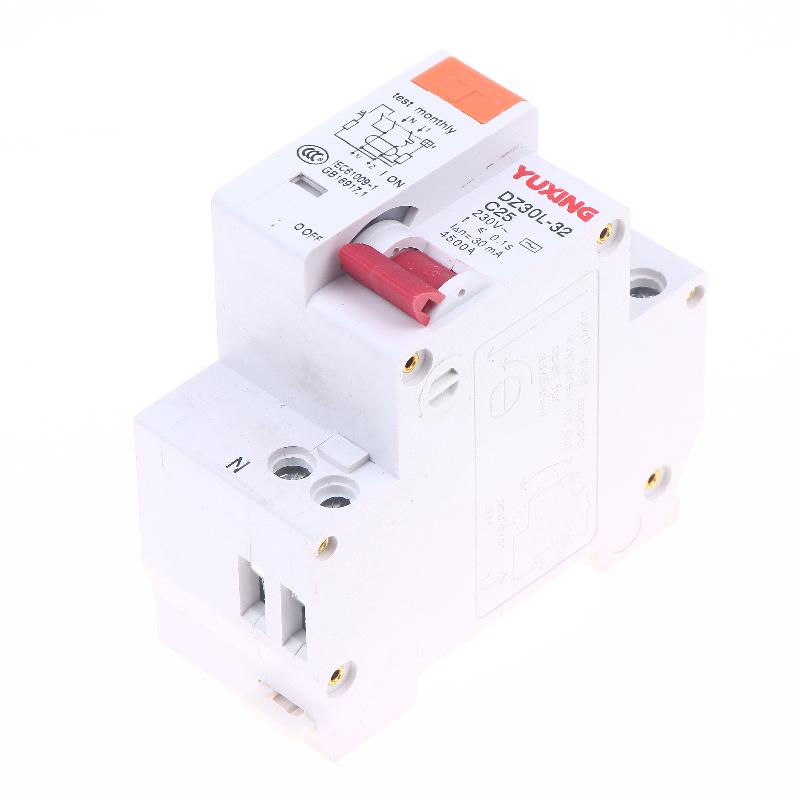

DZ30LE Residual Current Circuit Breaker 230V 1P+N Residual Circuit Breaker With Over And Short Current Leakage Protection RCBO M

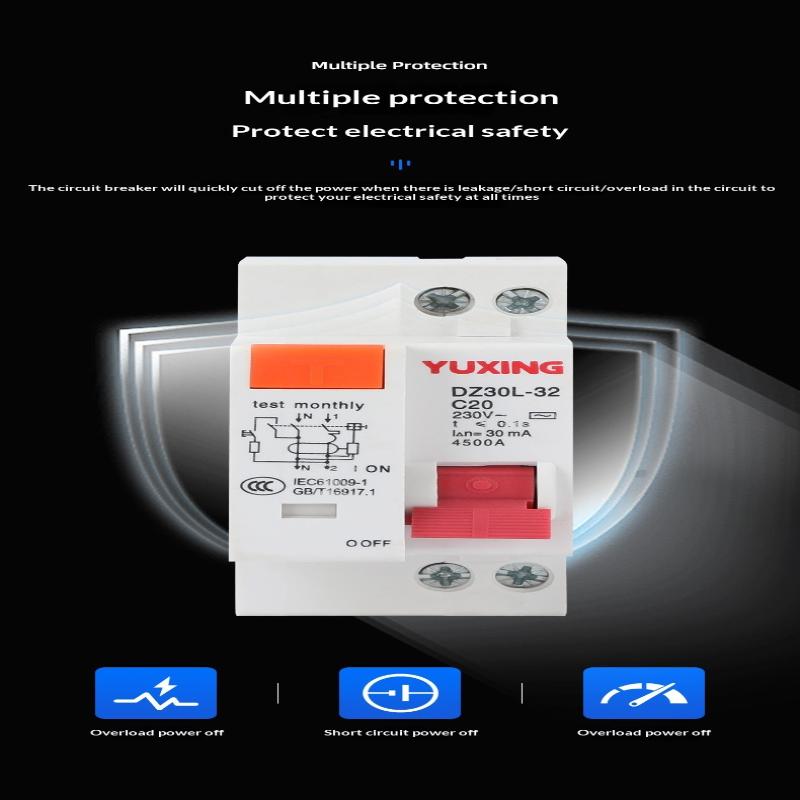

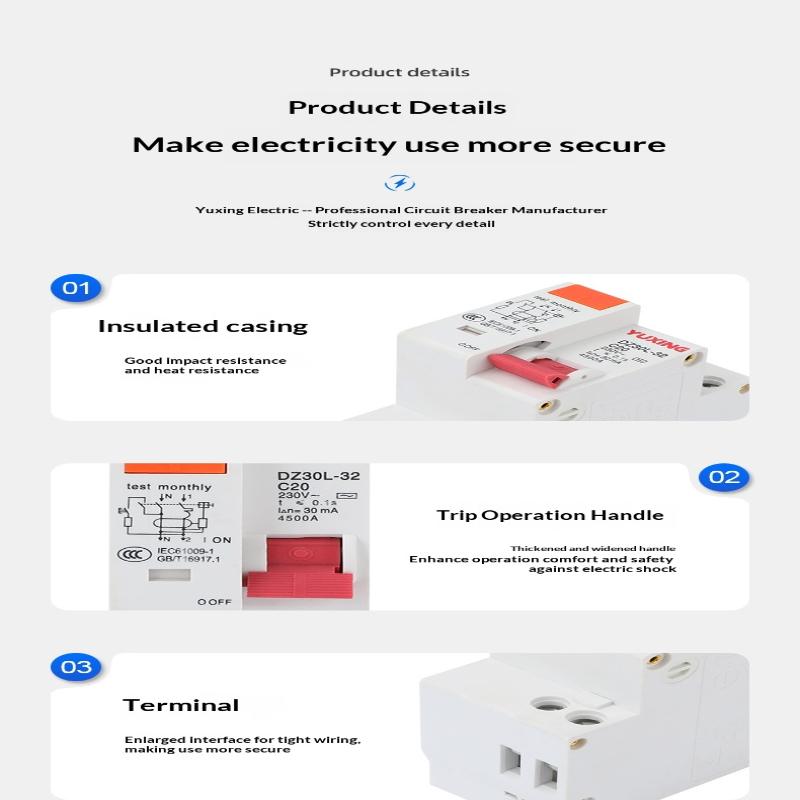

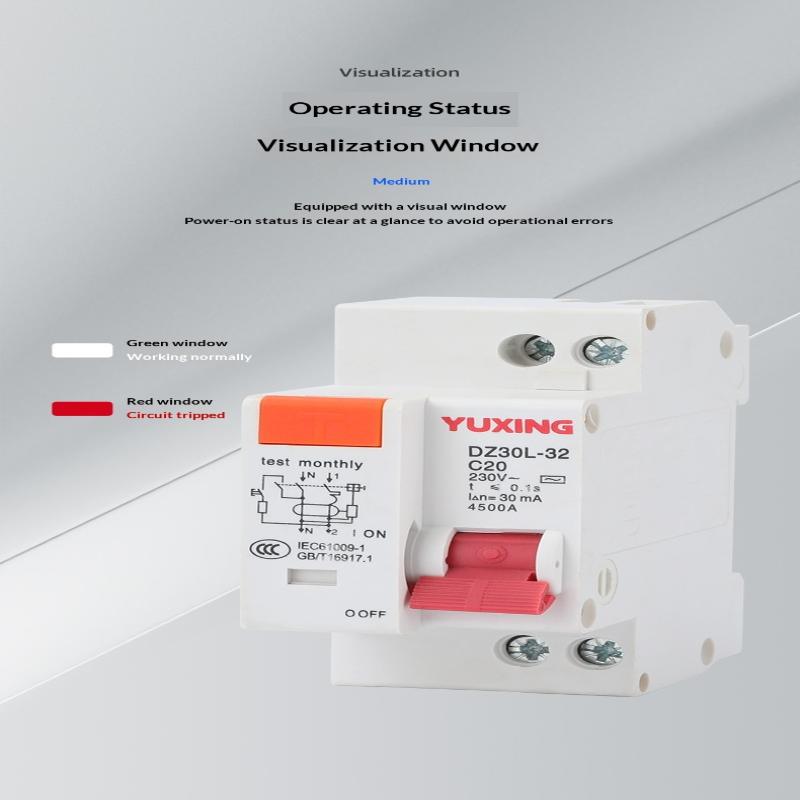

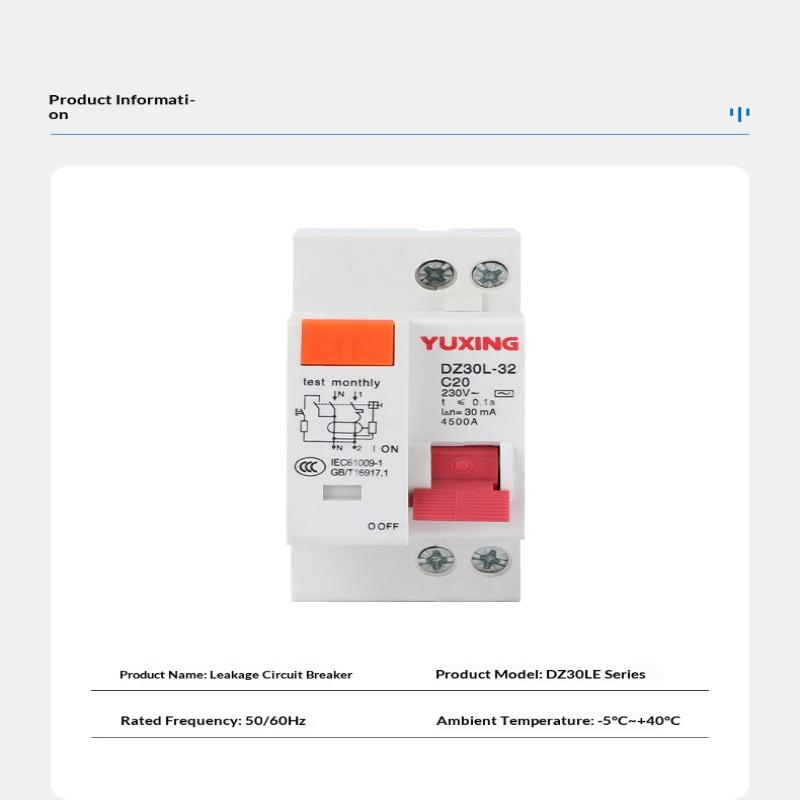

Construction and Feature 1)Provides protection against earth fault/leakage current, short-circuit,overload,and function of isolation. 2)Contact position indication. 3)Provides protection against indirect contact by human body. 4)Provides complementary protection against direct contact by human body. 5)Effectively protects electric equipment against insulating failure. 6)Equipped with switched neutral and phase pole . 7)Provides protection against over-voltage. 8)Provides comprehensive protection to household and commercial distribution systems. Technical Data 9)Type: Electronic type 10)Residual current characteristics: AC 11)Pole No.: 1P+N 12)Tripping curve: C 13)Rated short-circuit capacity: 4.5KA 14)Rated Current(A): 16,20,25,32, 15)Rated Voltage:230V AC 16)Rated Frequency:50/60Hz 17)Rated residual operating current(mA): 30 (63A is 15mA) 18)Tripping duration:instantaneous under or equal 0.1s 19)Electro-mechanical: pillar terminal with clamp. 20)Terminal Connection Height: H1=16mm ,H2=21mm 21)Over-votage tripping: 280V±5% 22)Connection capacity: Flexible conductor 10mm2 , Rigid conductor 16mm2 . 23)Installation: On symmetrical DIN rail 35mm, Panel mounting Accessories 24) S2 Shunt Tripper 25) U2+O2 Over-voltage and under-votage tripper. The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
