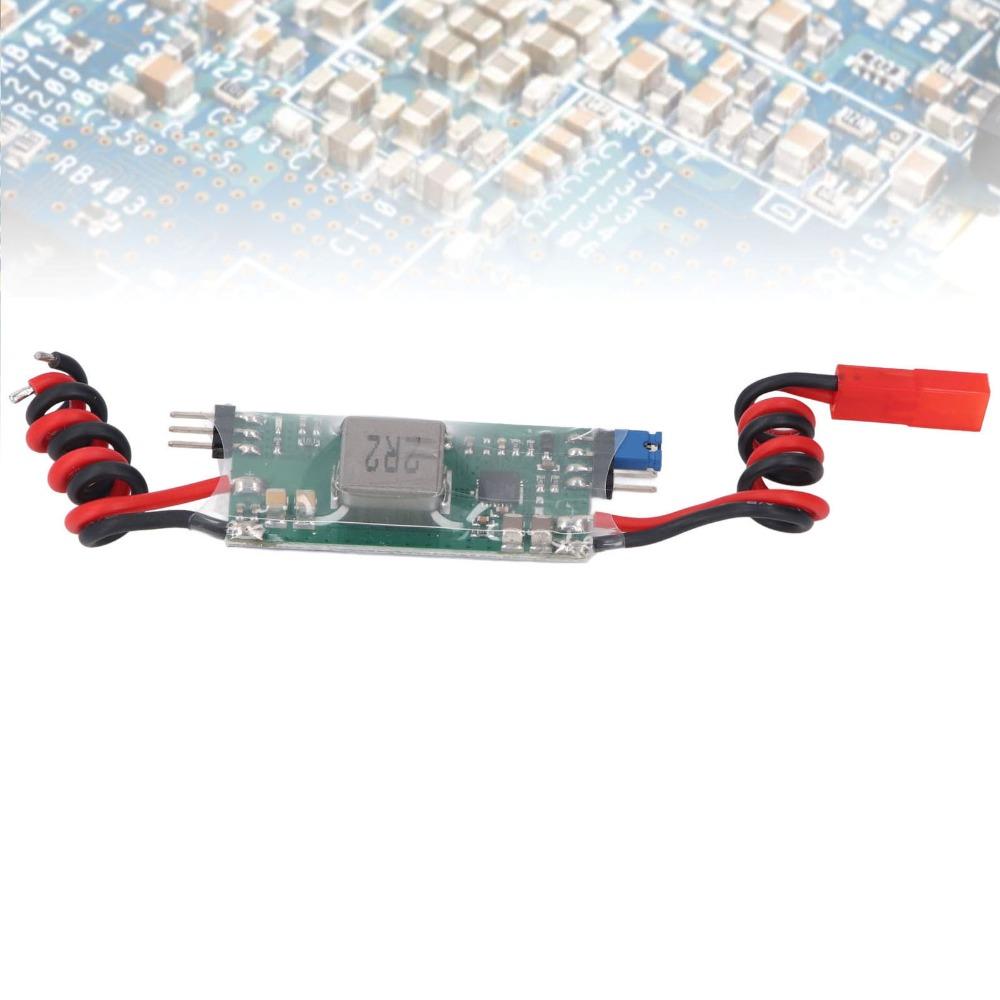

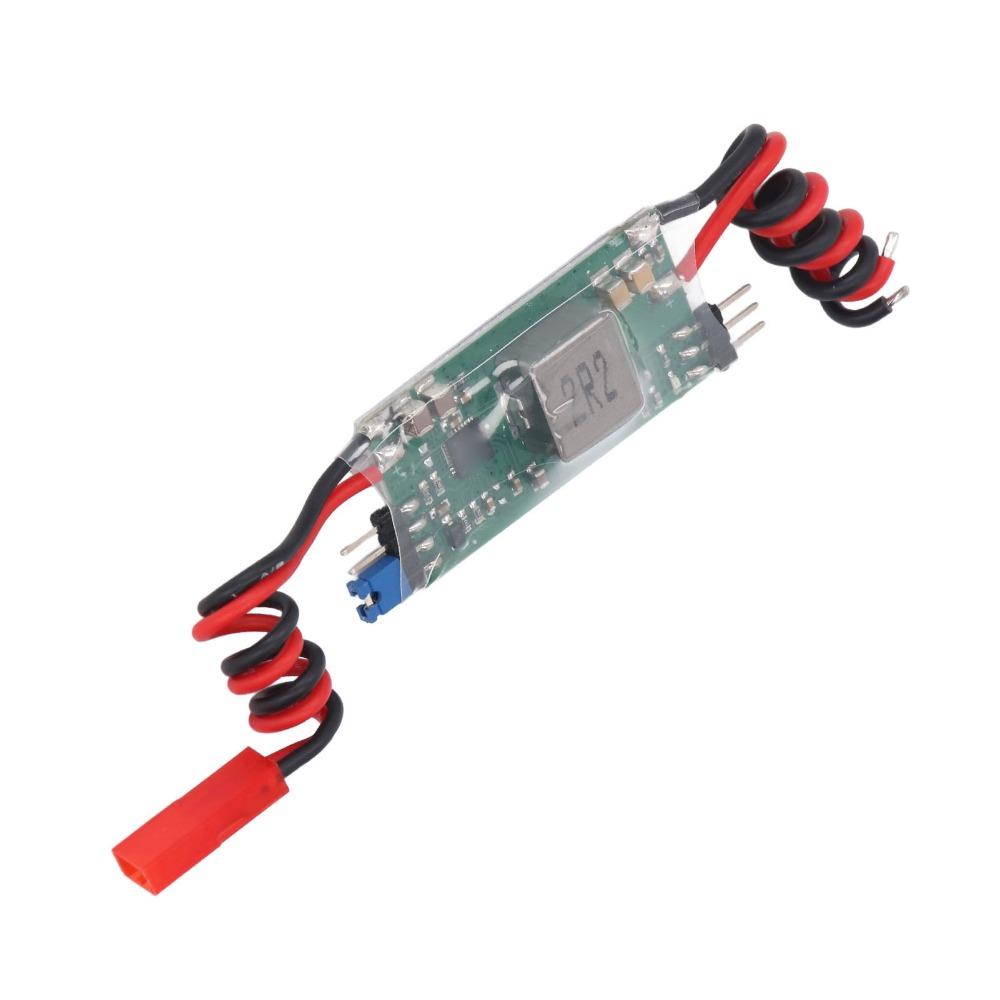

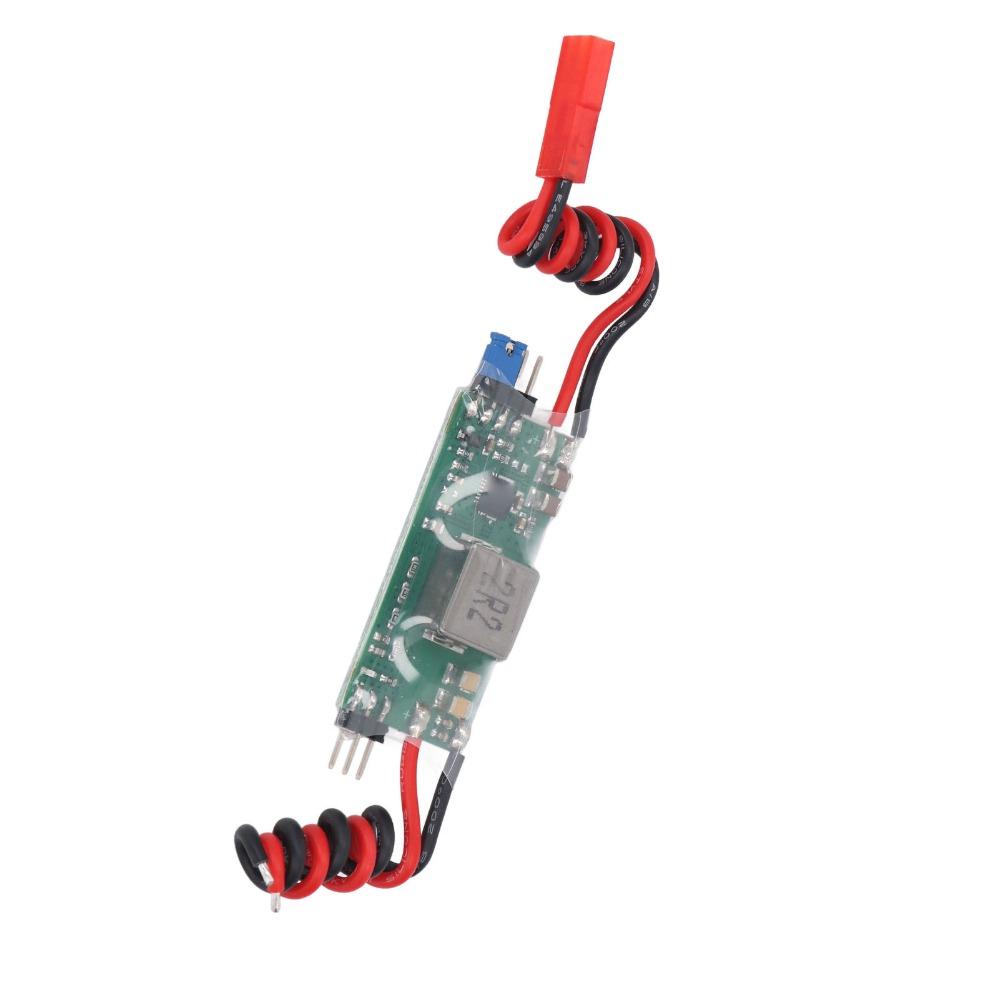

7V-25.5V Input 8A UBEC Voltage Regulator Module 8A UBEC Voltage Regulator Board RC Helicopter

Label:Yes Noise Reduction Technology: Equipped with an anti interference circle on the output line, this module significantly reduces electromagnetic interference, ensuring stable performance of your receivers in any setting. Compact and Lightweight: Measuring just 45mm(1.77in) x 22mm(0.87in) x 7.5mm(0.30in), this UBEC is both small and lightweight, offering a continuous output current of 8A and a maximum of 12A to meet demanding power needs. Versatile Compatibility: With built in reverse polarity safety and an operational voltage range of 7V to 25.5V, this UBEC simplifies your setup, eliminating the need for a separate receiver battery pack. High Performance Power: This UBEC module converts input voltages from 7V to 25.5V, reliably providing up to 8A of output current to power receivers, gyros, and multiple servos. Efficient Design: Featuring a synchronous rectification switching power controller, this UBEC achieves an impressive efficiency of up to 93%, complemented by over current and over temperature safety functions.

Specification Item Type: 8A UBEC Voltage Regulator Module Material: PCB Output: 5.0V 8A or 6.0 V8A or 7.4 V8A (switchable with jumper hat) Maximum Output Current: 12A (not exceeding 15 seconds) Input: 7-25.5V (2-6S LiPo, 6-16 Cell Ni Mh battery pack) Fluctuation: Less than 355mVp-p (at 8A 12V) Size: Approx. 45 x 22 x 7.5mm/ 1.77 x 0.87 x 0.3in Color: As picture shown

Package List 1 x UBEC Voltage Regulator Module 1 x 3 Pin Connector 1 x User Manual
