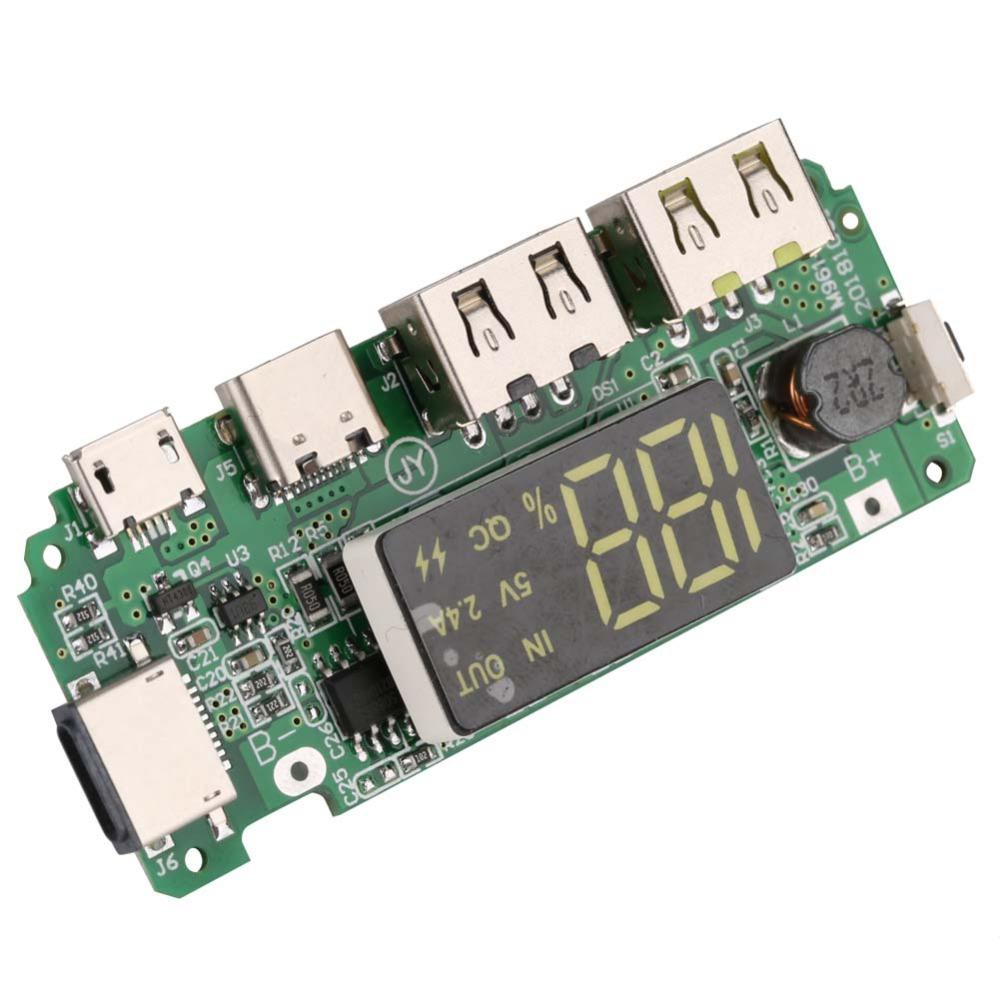

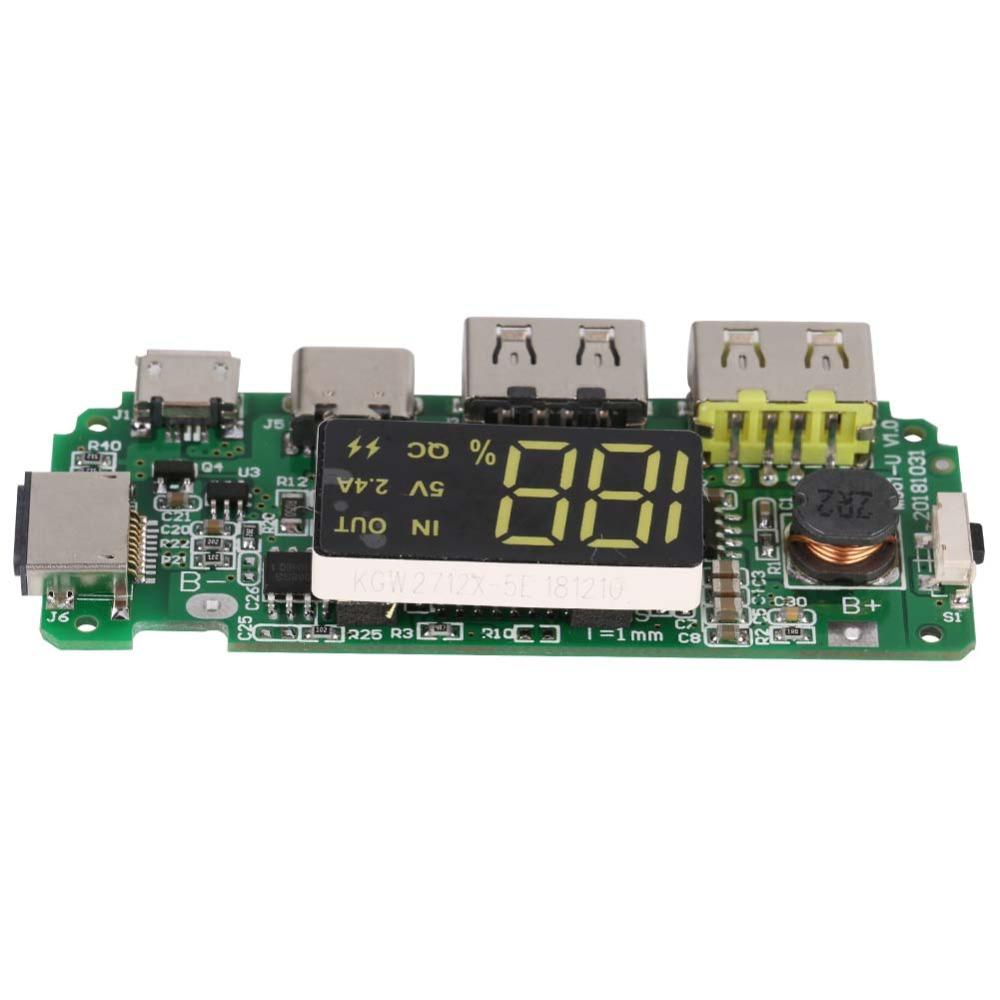

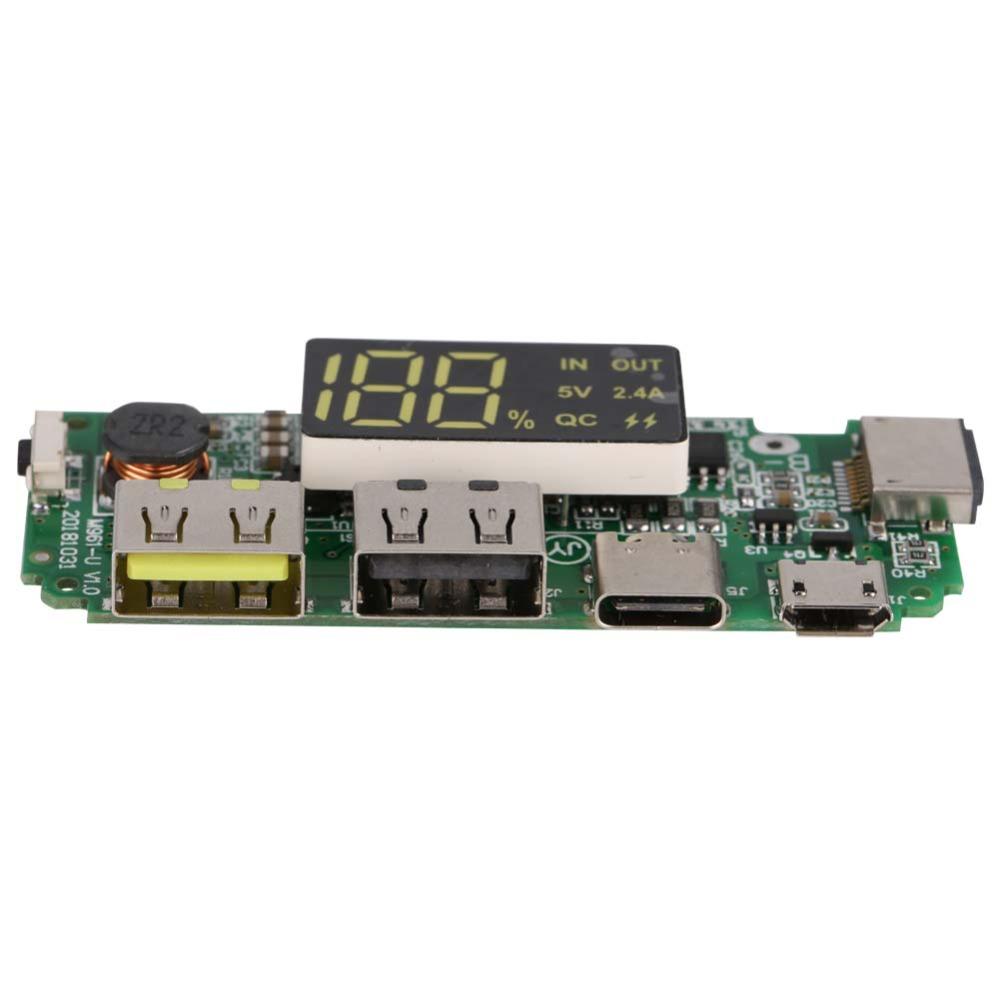

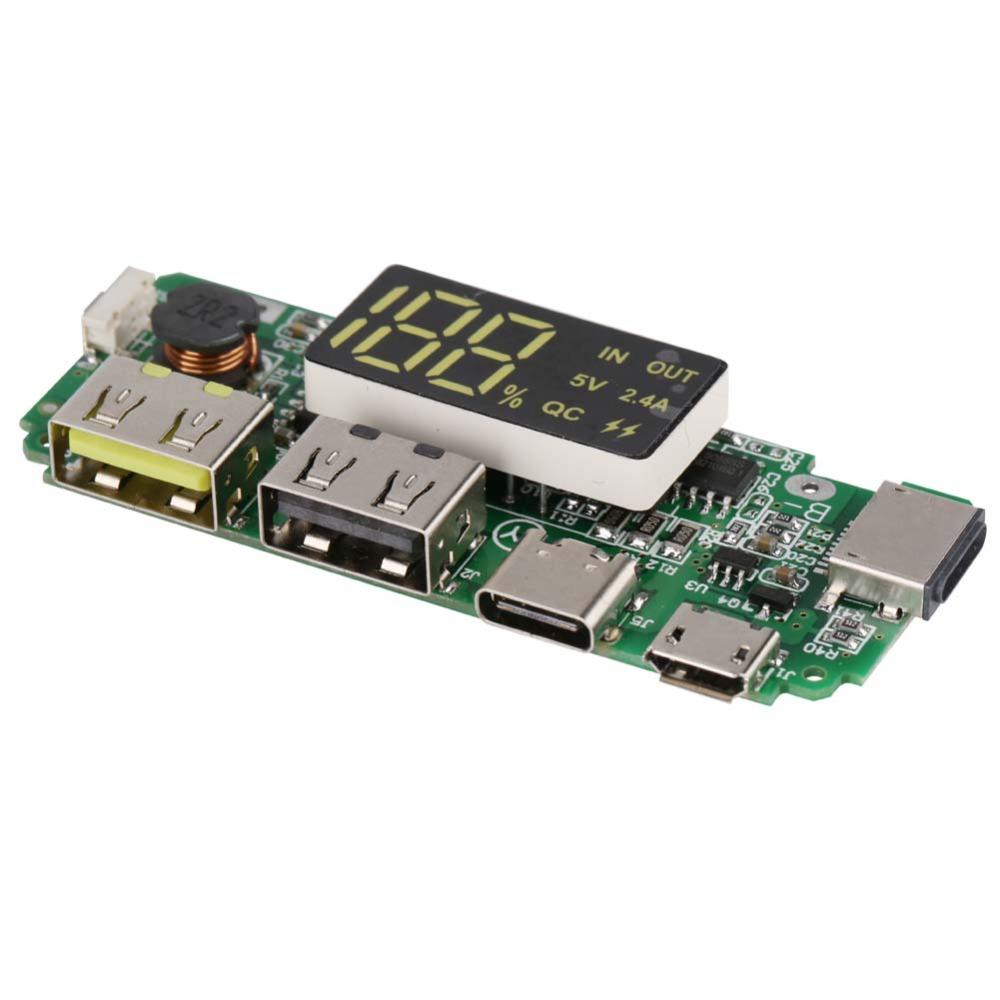

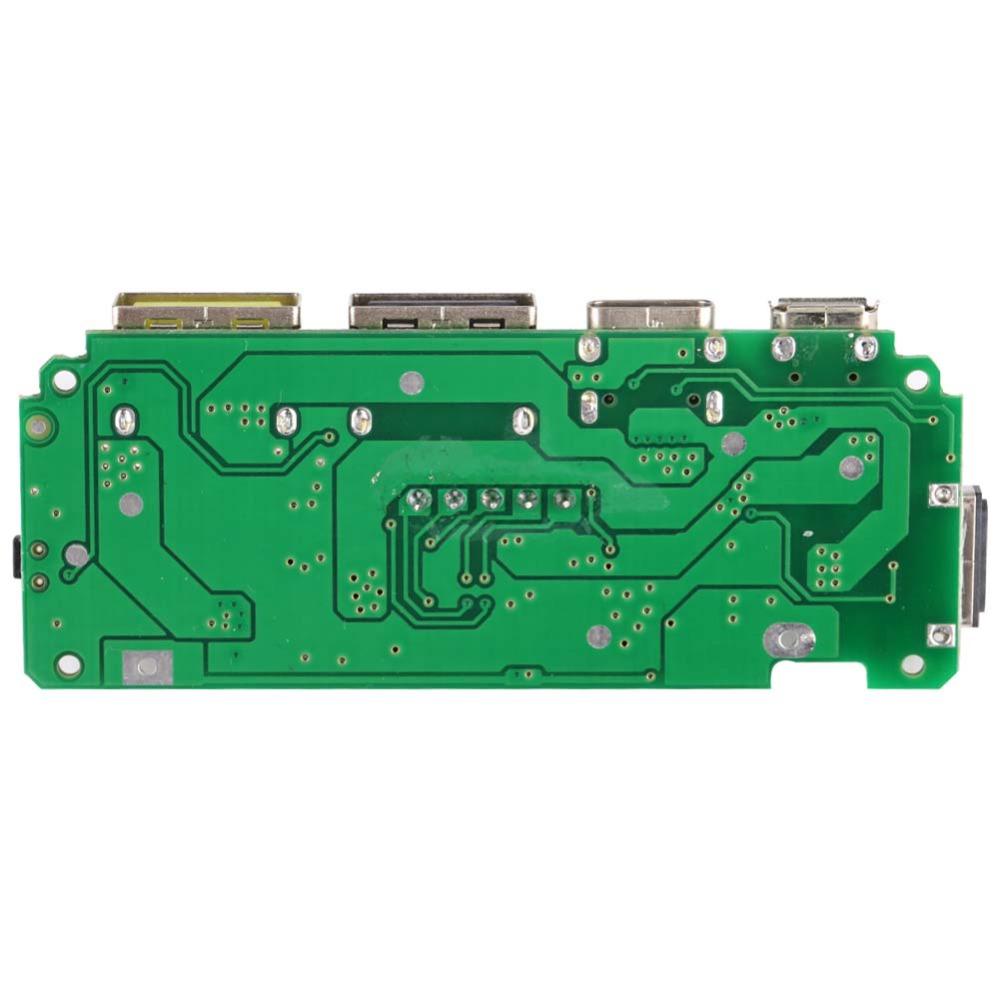

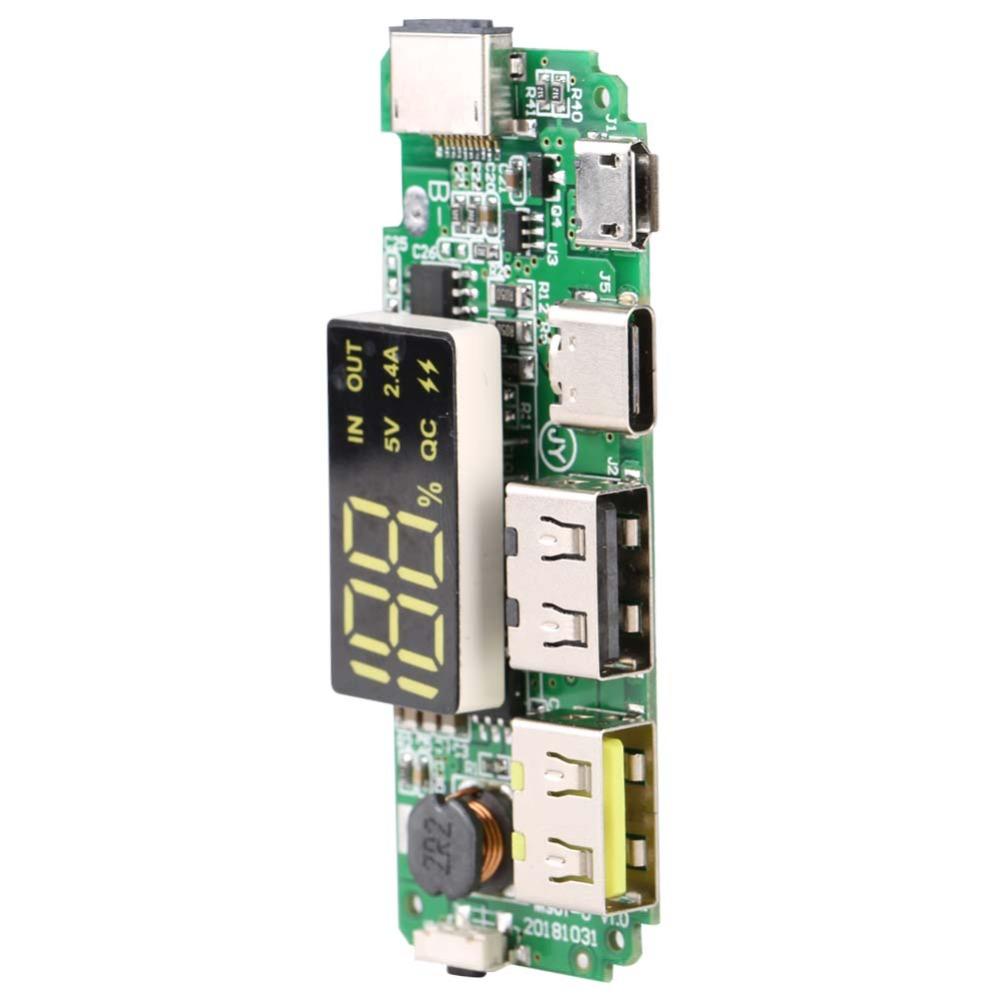

2Pcs 5V 2.4A Charging Board Overcharge Protection Mobile Power Bank Module Electronic Projects

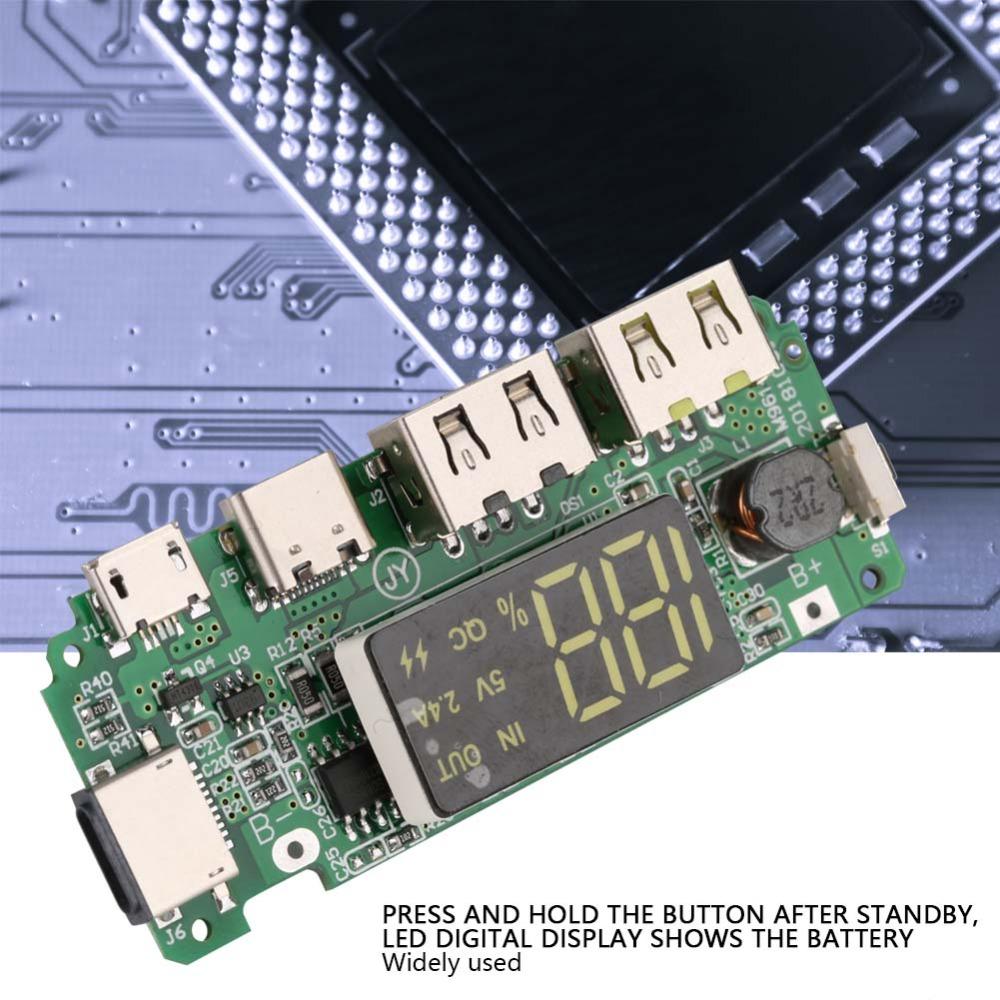

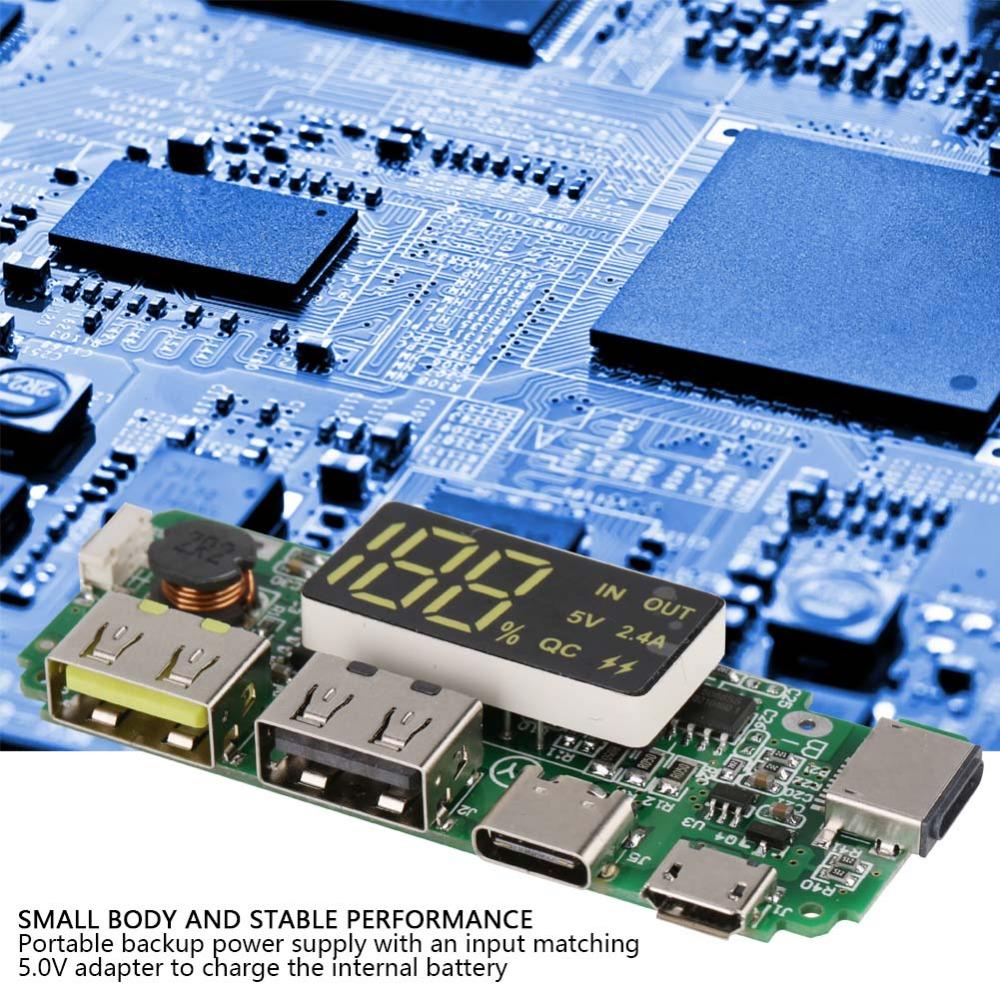

Label:Yes Portable backup power supply with an input matching 5.0V adapter to charge the internal battery. Small body and stable performance. Press and hold the button after standby, LED digital display shows the battery. Widely used. Crafted with premium material for reliable performance.

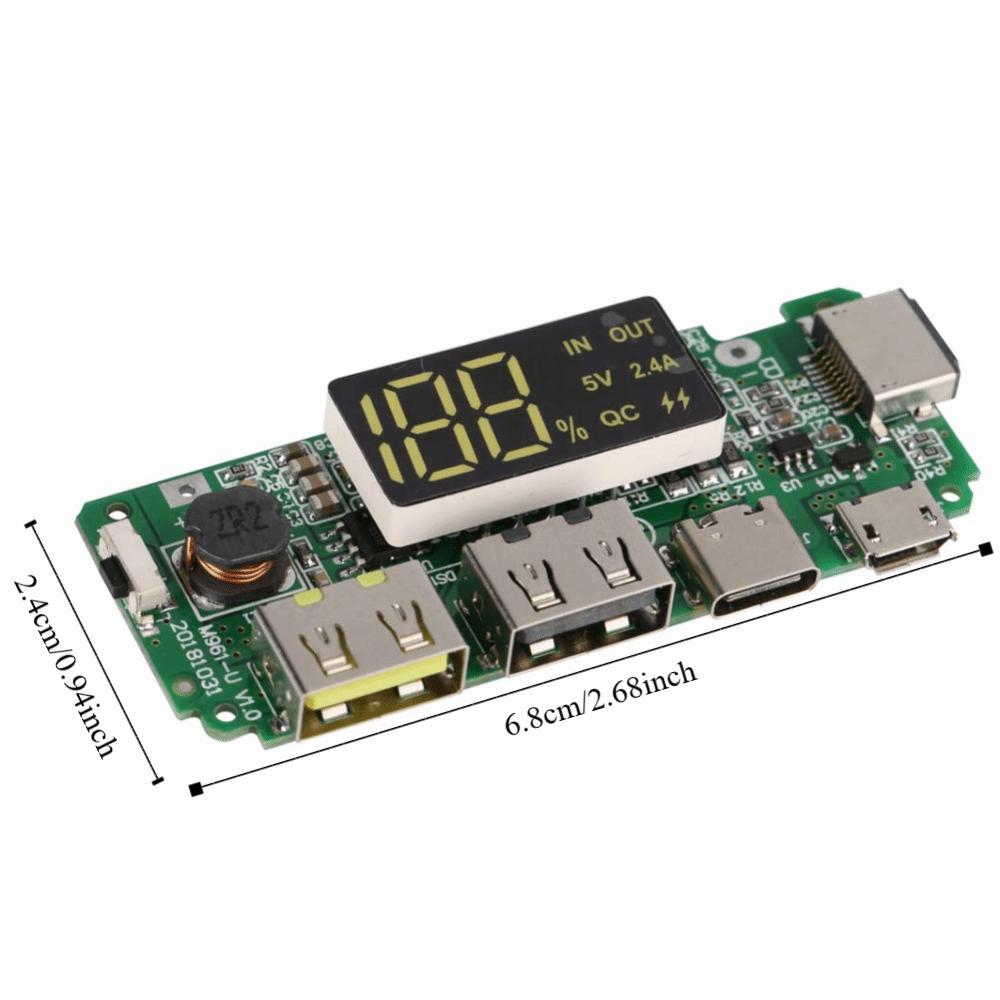

Specification: Model: H961-U Quick Charge Port: 5V 2.4A Color: As picture shown Board Size: 68*24mm(2.68*0.94in) Weight: Approx. 15g / 0.5oz

Input Voltage Input Voltage (B+ to B-): 3.0-4.2V

Overcharge Detection voltage: 4.20±0.05V Release voltage: 4.100±0.05V Detection delay time: <200 ms

Over discharge Detection voltage: 3.0±0.10V Release voltage: 3.10±0.10V Detection delay time: <100 ms

Output constant current constant current: 2A

Short Circuit Protection Short detection delay time: <50uS Release Conditions: Cut off load

Normal current consumption Normal current consumption of PCM: Maximum 60uA Standby current consumption: Maximum 50uA

0V charger allowed 0V change: Y

Suggest working conditions maximum continuous charge/discharge current: 1.5/2A suggest working temperature: -5-45℃

IR resistance IR of PCM: ≤65 m ohm

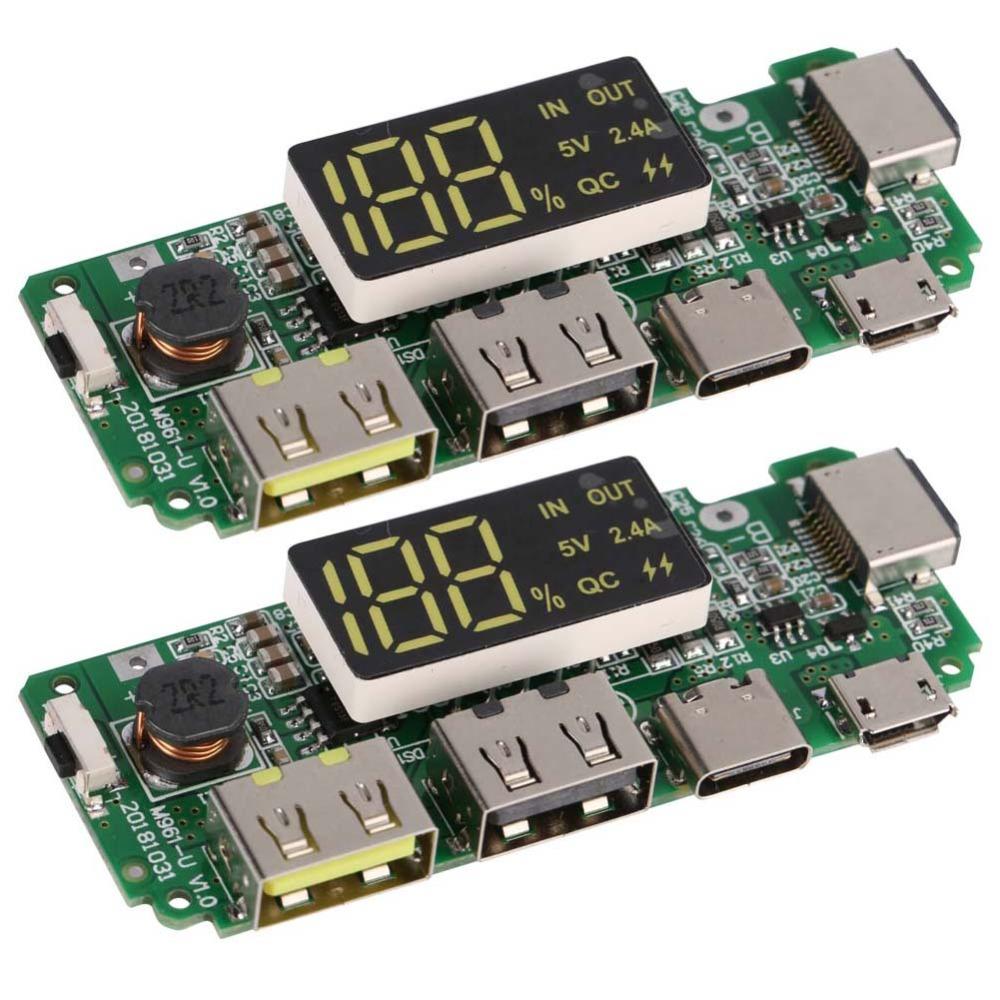

Package List: 2 * PCBA(Printed Circuit Board +Assembly)
