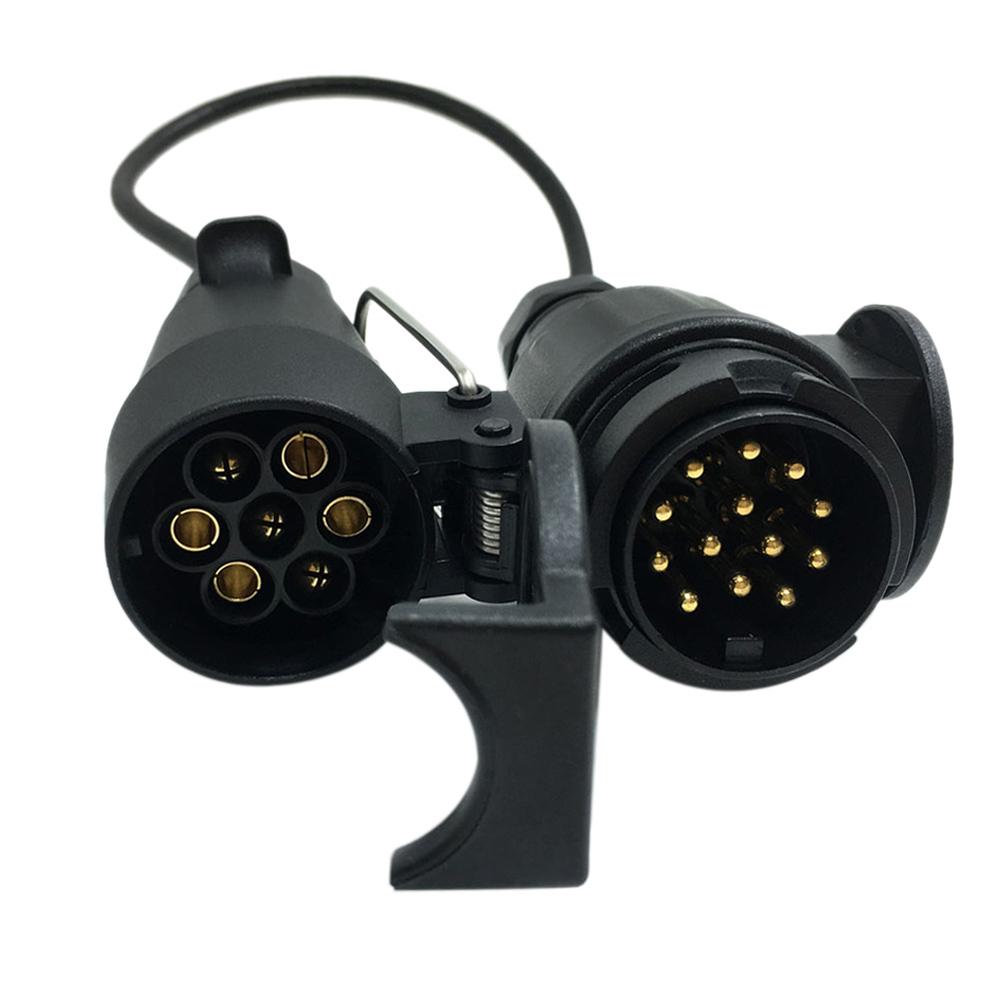

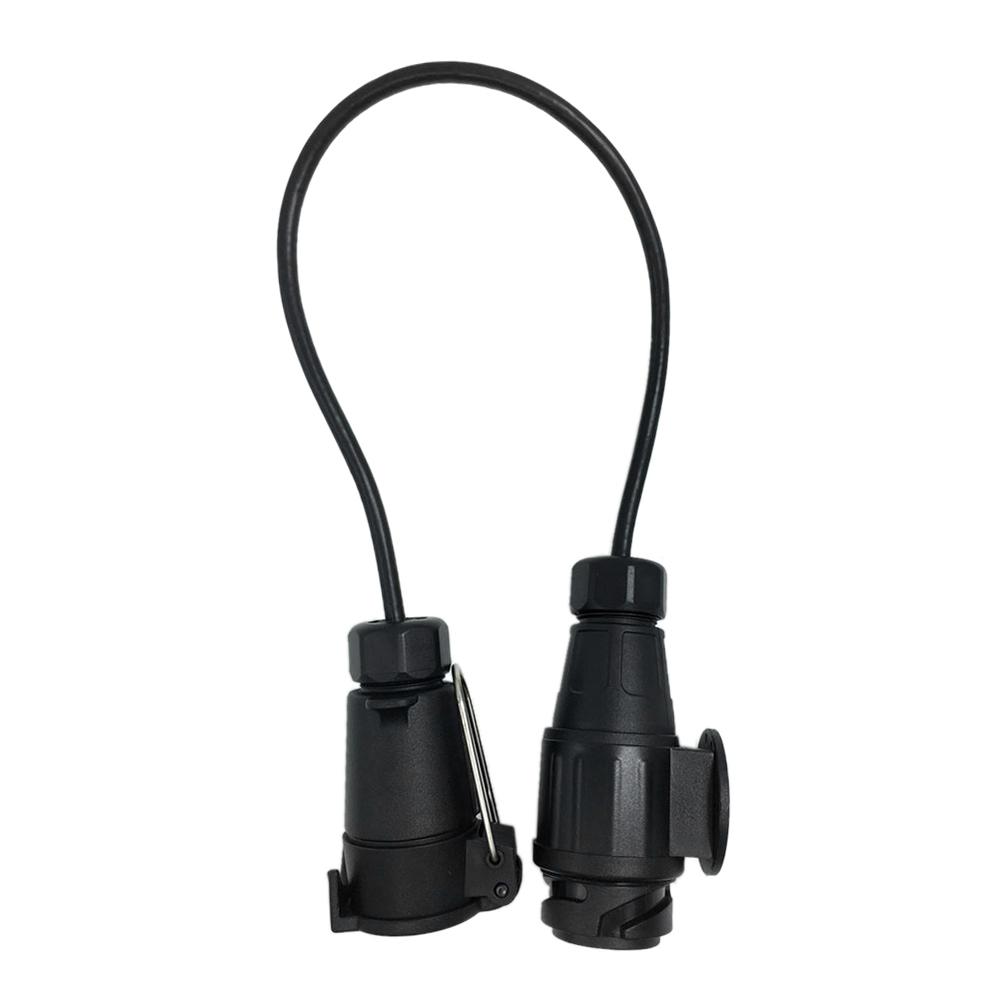

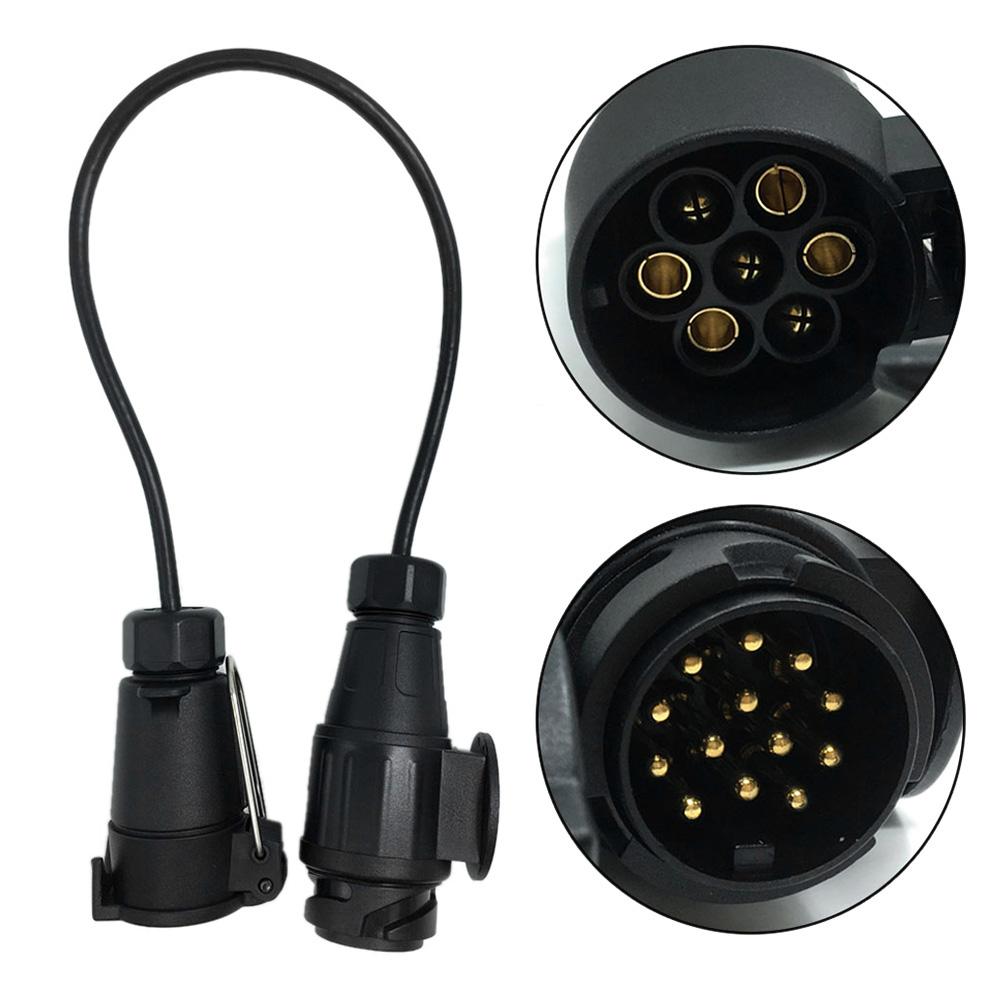

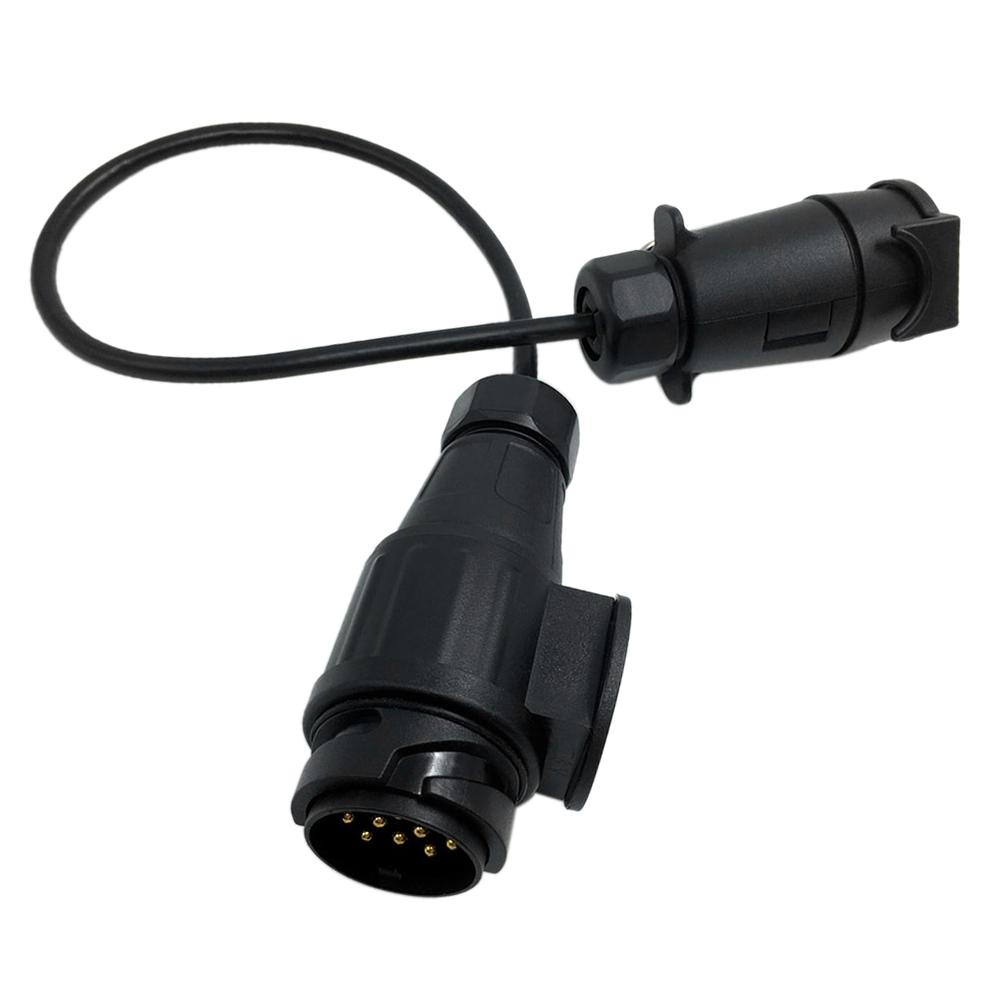

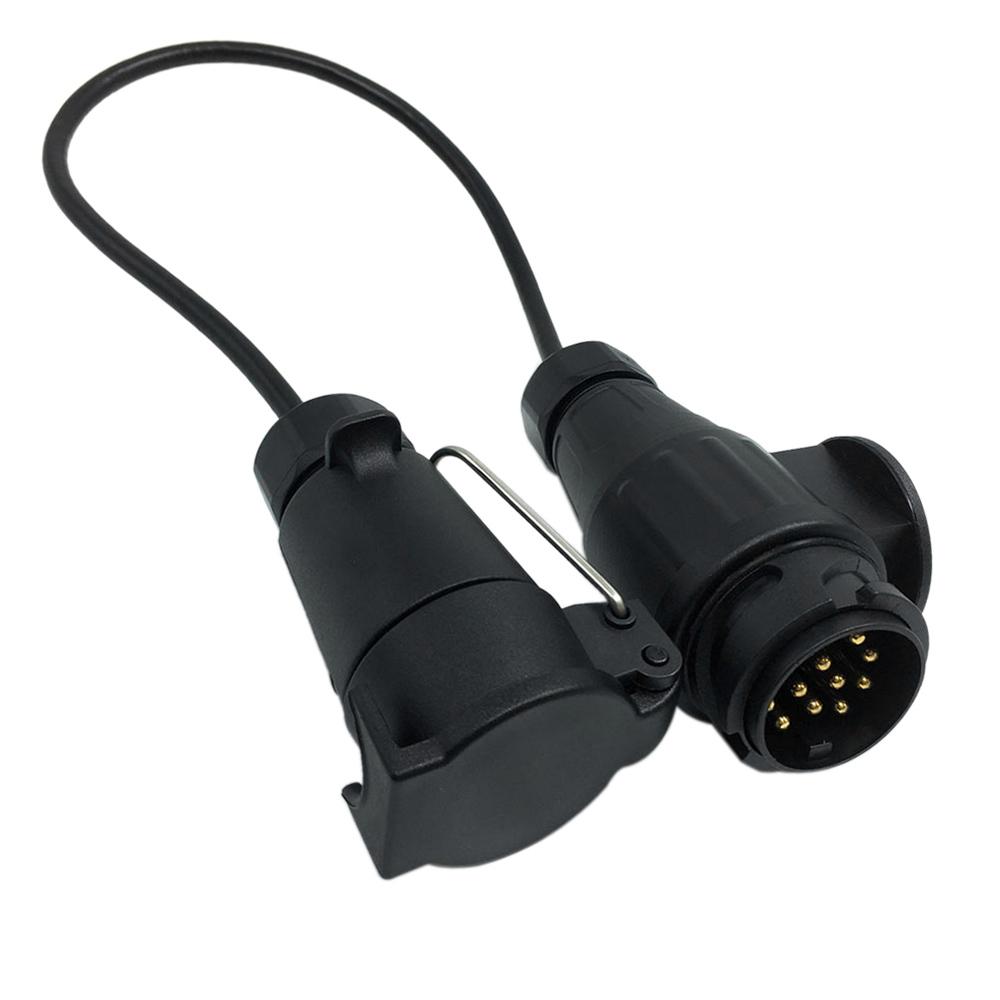

Tirol 12V 7 To 13 Pin Trailer with Cable Adapter Wiring Connector Towbar Plug & Socket

Feature: 1. Converts 7 to 13 pin towbar electrical converter 12V Europe style fitting on most caravans trailers. 2. Adapter 7pin socket to 13pin plug, 12 volt car trailer. 3. Will operate all road legal lighting for your trailer caravan. 4. Slim line design same Diameter as a normal trailer plug and just over half the length. 5. Please do not mistake this item for the 13 to 7pin one, please check the socket male or female type before purchasing; we do sell the 7 to 13 pin converter. Specification: Connect the major vehicle and the additional trailer; Transfer the electronic signature from the vehicle to trailer. Features: Converts 7 to 13 pin towbar electrical converter 12V Europe style fitting on most caravans trailers. Adapter 7pin socket to 13pin plug, 12 volt car trailer. Will operate all road legal lighting for your trailer caravan. Slim line design same Diameter as a normal trailer plug and just over half the length. Please do not mistake this item for the 13 to 7 pin one, please check the socket male or female type before purchasing; we do sell the 7 to 13 pin converter. Specifications: Brand: Tirol Item NO.: T22468 Item Type: Electrical Plug & Sockets Item Name: 7 To 13 Poles Adapter Color: Black Material: ABS+ copper Voltage: 12V Cable Length: 42cm Wire gauge: 7 * 0.5mm Line diameter: 6.4mm Package Size: 15 * 10 * 8cm 6 * 4 * 3.2in Package Weight: 300g 10.6oz Package List: 1 * 7 To 13 Pin Trailer Plug Wiring configuration: 7 Pin Lighting Connections 12 N Black Cable Function PIN 1 Yellow Wire (Left H Direction Indicator) PIN 2 Blue Wire ( Rear Fog Lamps ) PIN 3 White Wire ( Earth Return ) PIN 4 Green Wire (Right H Direction Indicator) PIN 5 Brown Wire (Right H Tail & No. Plate Lamp ) PIN 6 Red Wire (Brake lights) PIN 7 Black Wire (Left H Tail & No. Plate Lamp ) 13 Pin Lighting Connections – Cable Function Pin 1 Yellow Wire ( Left Indicator ) Pin 2 Blue Wire ( Fog Light ) Pin 3 White Wire ( Earth Return ) Pin 4 Green Wire ( Right Indicator ) Pin 5 Brown Wire ( Right tail Side Light ) Pin 6 Red Wire ( Brake Stop Lights ) Pin 7 Black Wire ( Left tail Side Light ) Pin 8 Pink Wire ( Reversing Light ) Pin 9 Orange Wire ( 12V Pemanent power from battery ) Pin 10 Grey Wire ( 12V Ignition on ( Battery charging or Fridge ) Pin 11 White Black Wire ( Earth for Teminal 10 ) Pin 12 White Blue Wire ( NOT usually used ) Pin 13 White Red Wire ( Earth for Teminal 9 ) Note: This shows the standard wiring colours, but your car might not be standard. If it is not then you should note which pin number each wire goes to before removing the old socket and simply connect the new one the same. Package List: 1 * 7 To 13 Pin Trailer Plug Wiring configuration: 7 Pin Lighting Connections 12 N Black Cable Function PIN 1 Yellow Wire (Left H Direction Indicator) PIN 2 Blue Wire ( Rear Fog Lamps ) PIN 3 White Wire ( Earth Return ) PIN 4 Green Wire (Right H Direction Indicator) PIN 5 Brown Wire (Right H Tail & No. Plate Lamp ) PIN 6 Red Wire (Brake lights) PIN 7 Black Wire (Left H Tail & No. Plate Lamp ) 13 Pin Lighting Connections – Cable Function Pin 1 Yellow Wire ( Left Indicator ) Pin 2 Blue Wire ( Fog Light ) Pin 3 White Wire ( Earth Return ) Pin 4 Green Wire ( Right Indicator ) Pin 5 Brown Wire ( Right tail Side Light ) Pin 6 Red Wire ( Brake Stop Lights ) Pin 7 Black Wire ( Left tail Side Light ) Pin 8 Pink Wire ( Reversing Light ) Pin 9 Orange Wire ( 12V Pemanent power from battery ) Pin 10 Grey Wire ( 12V Ignition on ( Battery charging or Fridge ) Pin 11 White Black Wire ( Earth for Teminal 10 ) Pin 12 White Blue Wire ( NOT usually used ) Pin 13 White Red Wire ( Earth for Teminal 9 ) Note: This shows the standard wiring colours, but your car might not be standard. If it is not then you should note which pin number each wire goes to before removing the old socket and simply connect the new one the same.
