Feature:
1. Fine Craftsmanship: The aluminum alloy rim is selected and treated with fine craftsmanship, which effectively enhances the edge of the rim, making it look light and high end.
2. Strong Bearing Capacity: With strong bearing capacity and far more comfort than other types of motors. Fits wheel size are 16 inch, 20 inch, 24 inch, 26 inch, 27.5 inch, 28 inch, 29 inch, 700c.
3. Good Performance: Easy to maintain, 48V rated voltage, 1000W rated power, rated speed is about 45‑55km h, 414‑487 rpm speed, 71‑74.6 N.M torque, matching 35A controller current, V brake.
4. Suitable for Modification: Electric bicycle, moped, mountain bike modification conversion motor, high efficiency, greatly improving riding fun, suitable for cyclists who like challenges.
5. Scope of Application: Suitable for installing rear drive cassette flywheels, fit DIY electric bicycles, electric vehicles, electric scooters, scooters, folding bicycle, wheelchairs, light electric four wheelers, etc.
Specification:

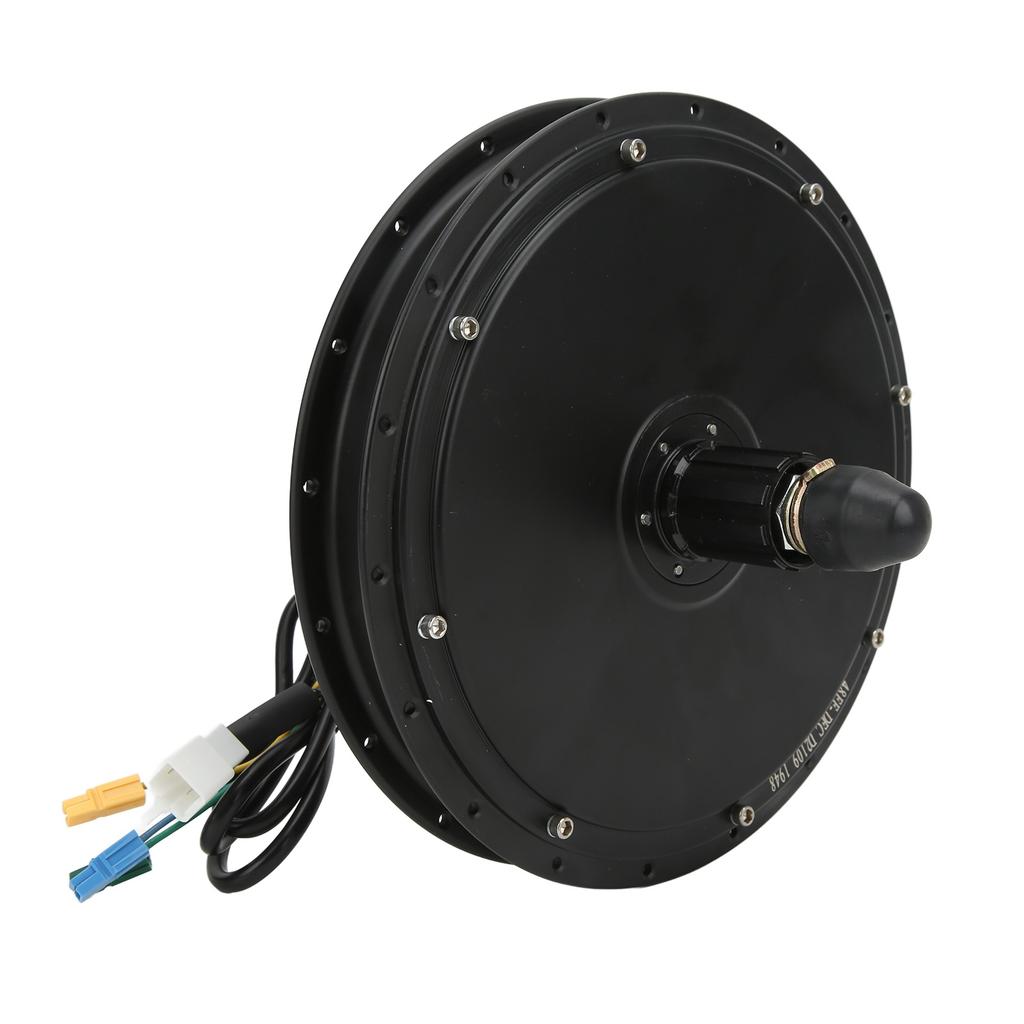

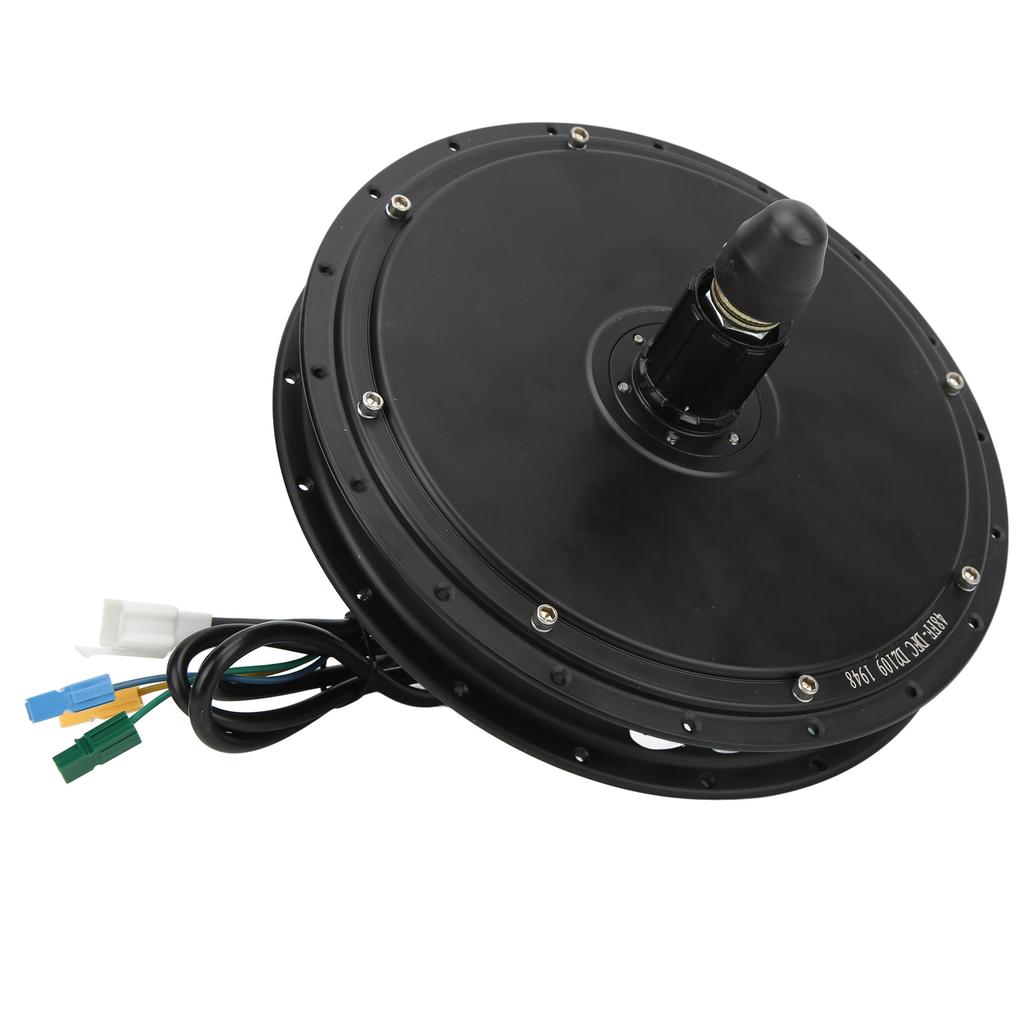

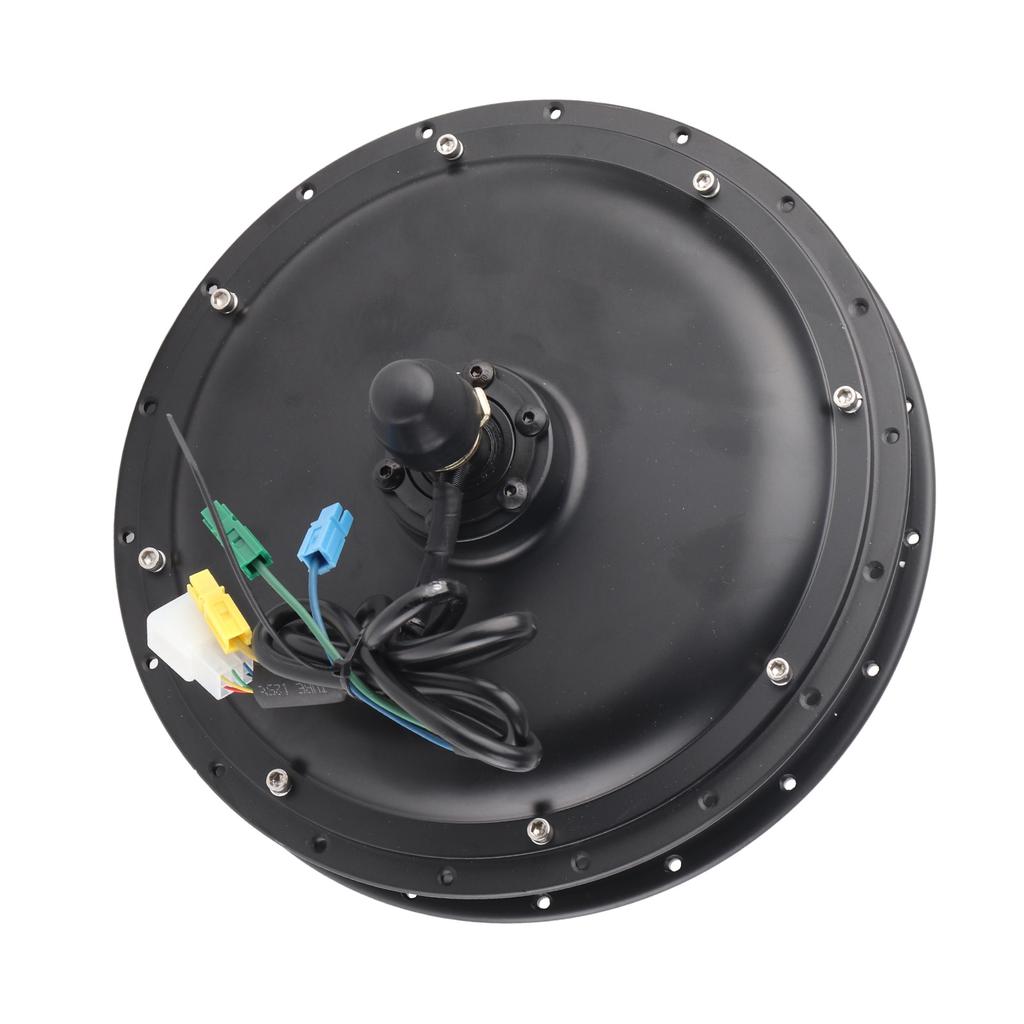

Item Type: 48V 1000W Electric Bike Rear Hub Motor
Material: Stainless Steel + Aluminum Alloy
Type: Rear Drive Cassette Flywheel Motor
Rated Voltage: 48V
Rated Power: 1000W
Rated Speed: About 35 45KM H
Speed: 325 331 RMP
Torque (N.M): 57.5 59 N.M
Opening Size (mm): Approx. 142mm 5.6inMatching Controller Current: 30A
Wheels: P25D
Moment Arm: M14
Applicable Brake Disc: Approx. 160mm 6.3in
Brake Type: V Brake and Disc Brake Universal
Location: Rear Drive
Motor Structure: Brushless Gear Hub Motor
Magnet Height: 30H
Number of Magnet Poles: 46
Working Temperature: 20 degrees 45 degrees
Fits Wheel Size (Inches): 16 Inch, 20 Inch, 24 Inch, 26 Inch, 27.5 Inch, 28 Inch, 29 Inch, 700C.
Package List:
1 x Motor
Note:
Note that it is only suitable for high power motor modification, the same interface and the same voltage products are applicable.
