ZK-1002T AUX+Bluetooth-Compatible Amplifier Board HIFI 2.0 Channel 100Wx2 Audio Module Stereo Subwoofer Speaker Treble Bass Accessory
Feature:
Bluetooth-compatible audio amplifier module 2.0 dual-channel stereo output, maximum output power 2X100W
AUX and Bluetooth-compatible audio input mode, two in one power amplifier board. Bluetooth-compatible 5.0, transmission efficiency is higher, transmission distance is longer
With short circuit protection and over current, over heat, anti-reverse connection protection, to prevent comprehensive failure. When an overload occurs, the device reports the failure to the processor to protect itself from damage
Use copper DC connector and fence terminal. Can withstand large current, do not heat, do not damage the wire.

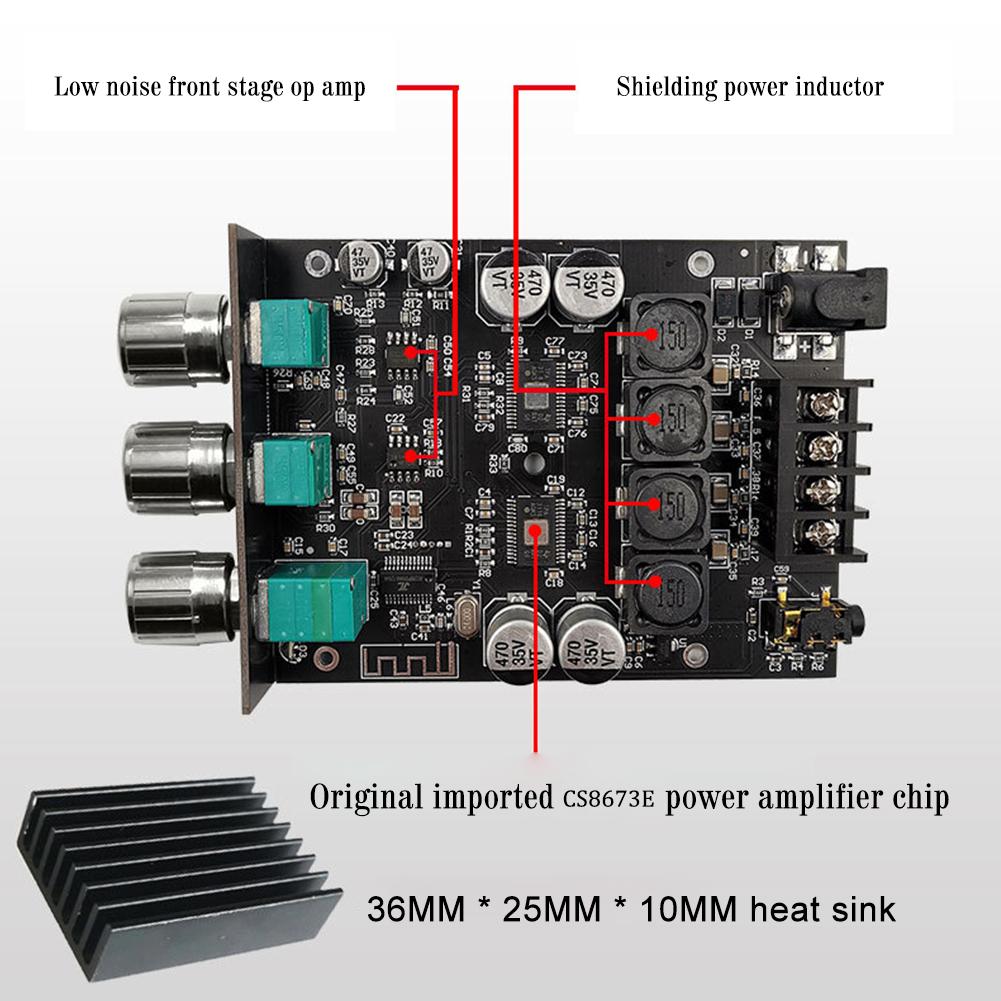

Adopt professional 36MM*25MM*10MM large area heat sink. Close to the shell of copper heat dissipation, heat dissipation area doubled, to ensure the full power of the product high-performance operation.
With bass, treble, subwoofer frequency and volume control, easily adjust the volume, enjoy the music you want to sound. Widely used in shopping malls, home theaters, speakers and so on
Specification:
Model: ZK-1002T
Bluetooth-compatible Version: 5.0(no occlusion, 10m)
SNR: >90dB
Input mode: AUX+ Bluetooth-compatible
Number of channels: left and right double channels (stereo)
Amplifier chip: CS8673E
Adaptive power supply: DC12~24V/5A or above (the higher the voltage, the higher the output power)
Adapter horn: 20~200W, 4~8
Output power:
20W*2 12V, 8 ohms; 35W*2 12V, 4ohm
35W*2 19V, 8 ohms; 60W*2 19V, 4ohm
50W*2 24V, 8 ohms; 100W*2 times 24V, 4ohm
Protection mechanism: overvoltage, undervoltage, overheat, DC detection, short circuit protection

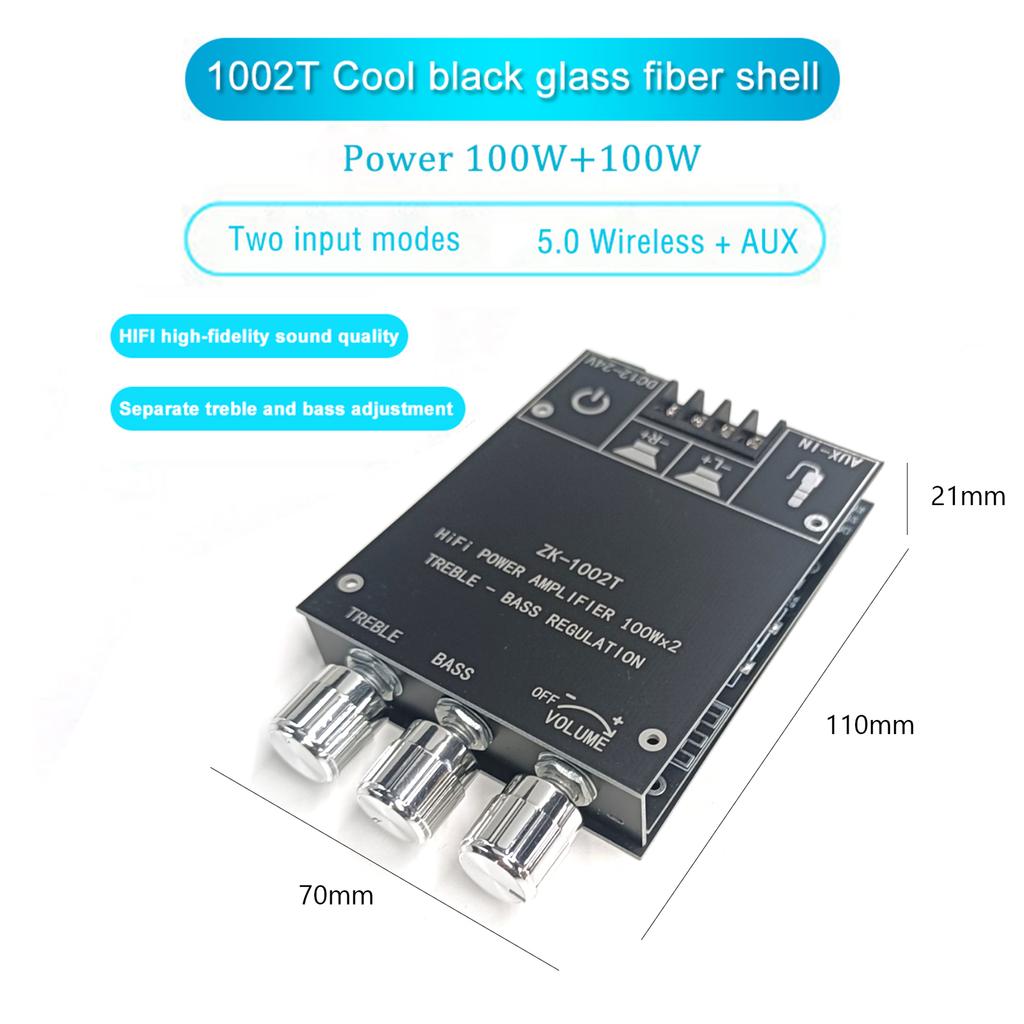

Size: 110mm*70mm*21mm/4.3X2.8X0.83in
Weight: 161g(including packaging)
Tip:
Only when the audio input is enough and the power supply voltage/current is enough will there be enough output power!!
The higher the power supply voltage, the greater the output power, the smaller the horn impedance, the greater the output power!!
Please ensure that the adapter power is greater than the actual working power of the amplifier!!
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
1 x Subwoofer Amplifier Board (with Accessory Bag)
