Good luck with your favorite purchasesProfessional metal markinglaser module, easy to install, with lower loss, provides 1064nm wavelengt,an engraving accuracy of 0.001 mm, life up to 20,000 hours, suitable for a wide range of engraving machines.It needs to be used with an engraving machine，allows you to engrave clearly and quickly on a variety of surfaces.
Features:
【Metal Marking Laser Module】With 1064nm infrared fiber laser,industrial grade optical sensor, dual optical lens, accurate focusing, low light loss, precise and fast laser focusing . With large size cooling fan for heat dissipation.It is the best choice for metal marking enthusiasts.
【Quality Matetrial】Made of premium quality aluminum alloy casing with great durability.
【Wide Application】Can carve any plastic (excluding transparent plastic), any metal and alloy, rare metal (gold, silver, titanium), metal oxide (aluminum oxide
carving effect is very good), objects with paint (such as painted glass, painted wood, painted paper and other materials with paint), artificial PU leather;
Can't carve transparent materials, logs, raw bamboo, kraft paper, other materials besides these can be basically carved.
【Fine Engraving & Precise Positioning】0.01-0.02mm ultra-long and ultra-fine infrared laser can display every detail of engraving and present pixelsThe laser module adopts infrared light positioning design, which can accurately locate the marking position without offset and good position.

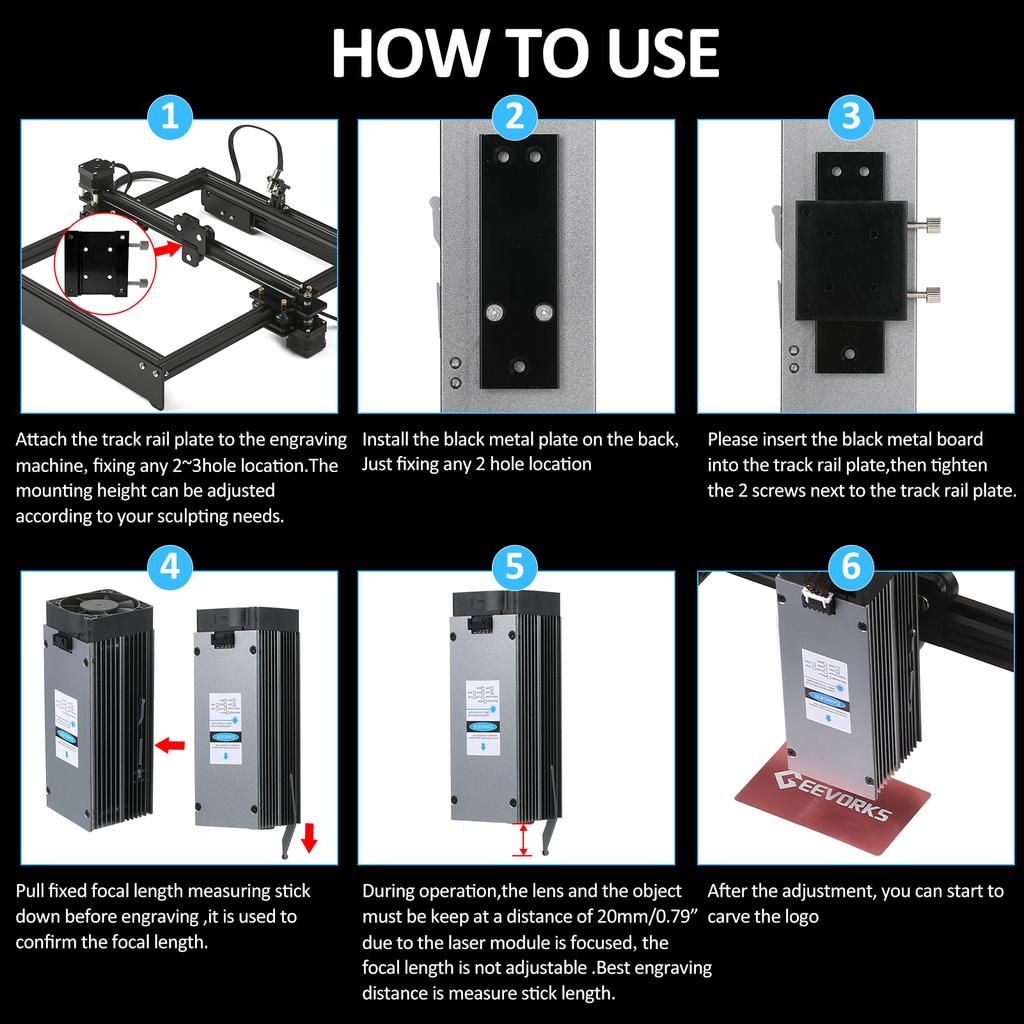

【Adjustable Installation Position】Metal Plate for adjusting the mounting height is included in the package. It allows the laser head to move up and down according to your installation height requirements.
Note: The laser module is suitable for engraving and has no cutting function.
Specifications:
Shell Material: Aluminium Alloy
Voltage: 12V
Laser Power：20W
Optical Power: 8000mw
Laser Wavelength: 1064nm
Lens: Fixed Focus Lens
Engraving accuracy: ≤0.01mm
Repeat marking accuracy: ≤0.01mm
Control Signal: PWM/TTL
Luminous Color: Red (invisible light design）

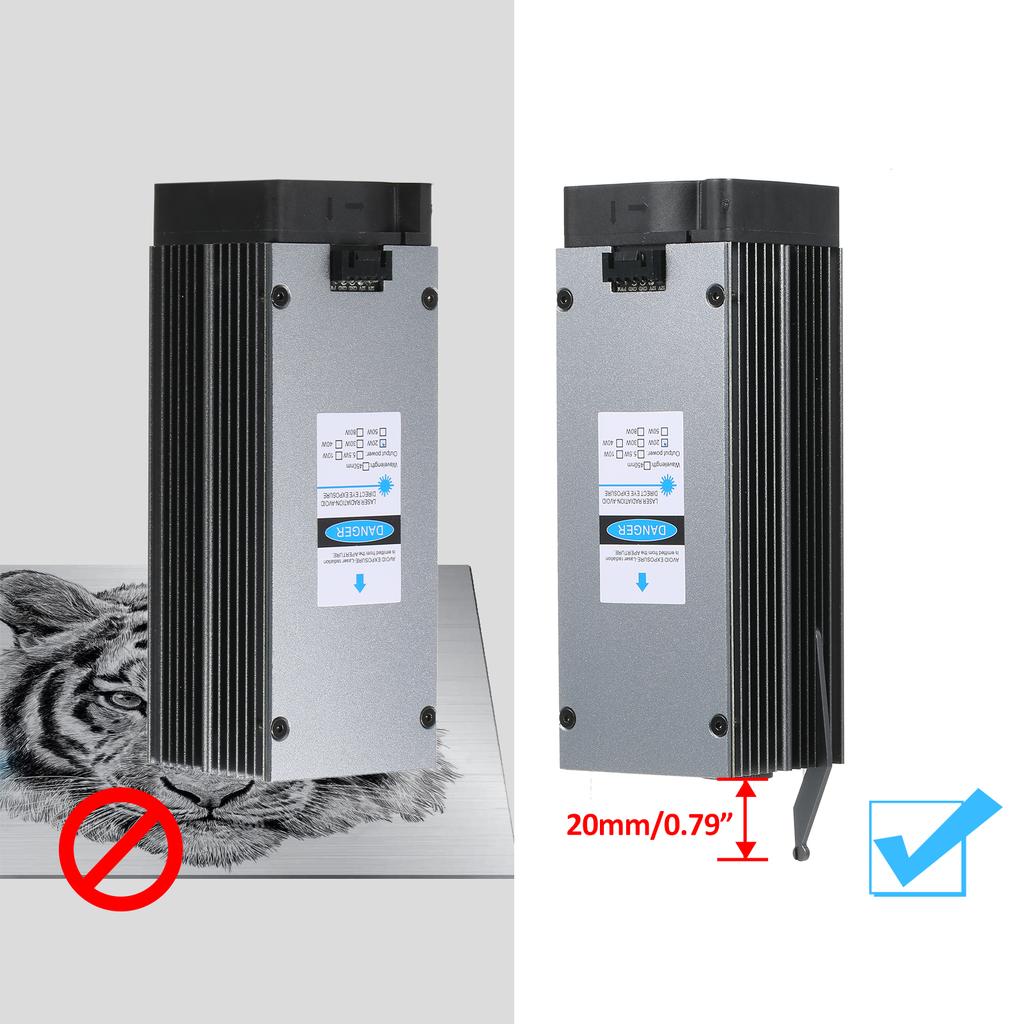

Best Distance From The Object toThe Lens: 20mm/0.79in
Life Time: ≥20,000 hours
Connector Type：3pin (If you need 2pin connector, you can contact us)
Product Size:145*50*50mm /5.7*1.97*1.97in
Product Weight: 468g/16.5oz
Package Size:167*79*60mm/6.57*3.1*2.4in
Package Weight: 552g/19.5oz

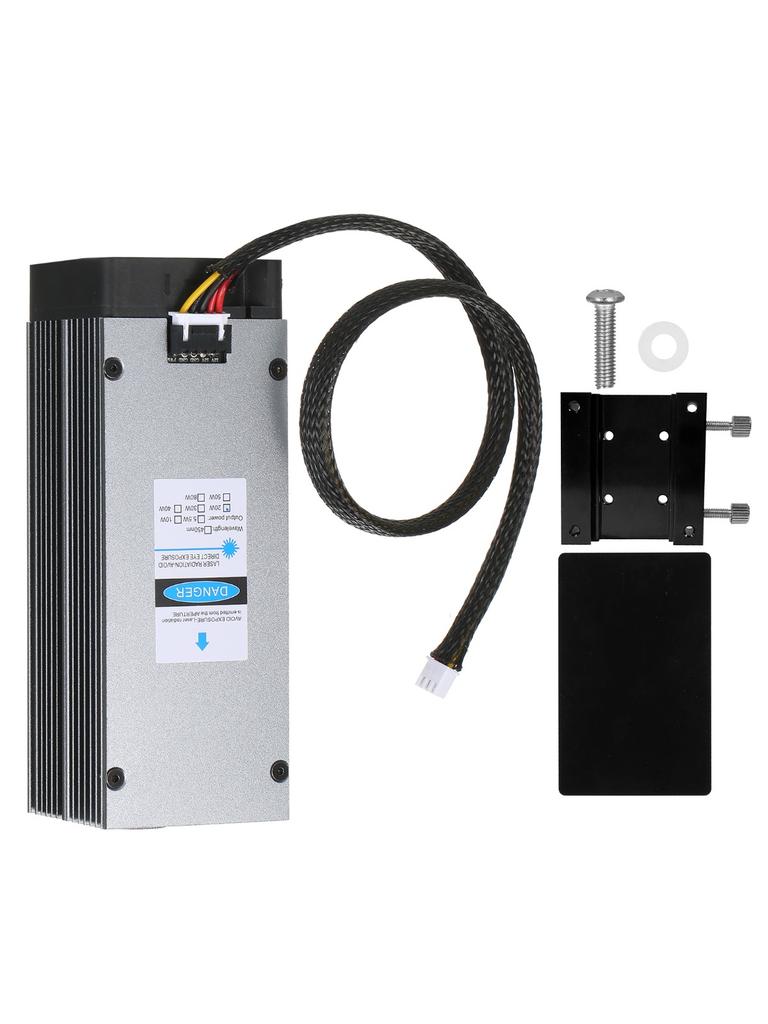

Package List:
1*Laser Module
1* Adjustable Mounting Plate
2* Auminum sheet (Used for DIY test)
3 * Screw
3 * Plastic Hoop
