Basic Information
Product Name: Fish tank water thermometer Model: T1

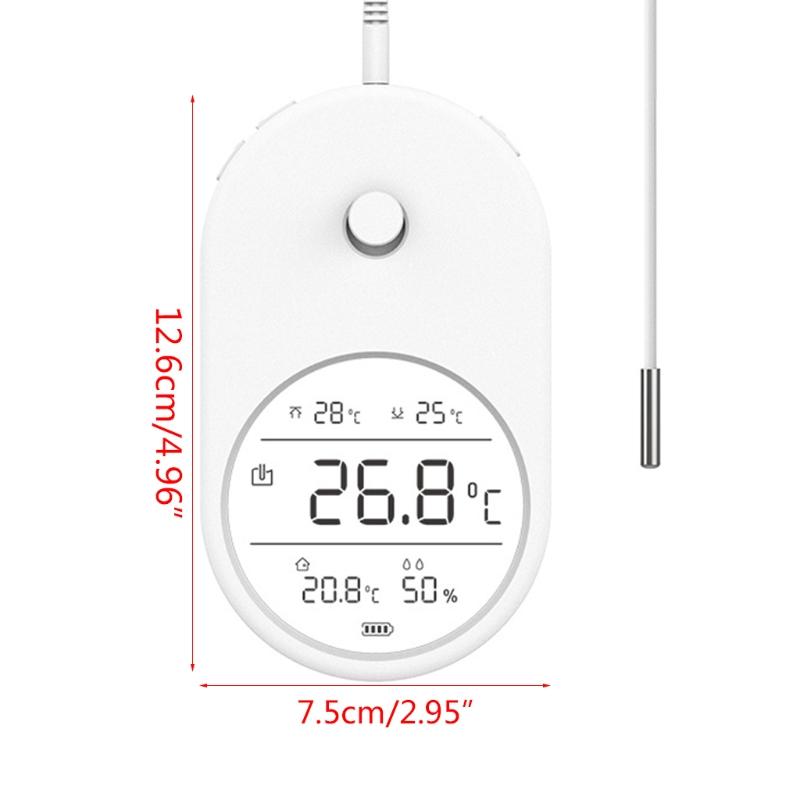

Product size: 75mm* 126mm* 9mm Color box size: 160*85*20mm
Net weight of the machine: 90g Gross weight of the machine: 100g
Temperature probe line: 1m
Battery power supply: CR2032 button battery 3V Battery operating hours: 4 months
Material: ABS
Product features
1）Pure transparent screen, different visual experience
(2) high precision temperature probe, can be immersed in water for a long time, the real measurement of fish tank water temperature
(3) fish tank water temperature, room temperature, indoor humidity, three in one
4) independent setting of high and low temperature threshold, over the threshold automatically alarm.
(5) wall-mounted design, easy to pick up
(6) taking into account the indoor temperature and humidity measurement.
Technical parameters:
Room temperature measurement range -20--85℃, error ±0.3℃, refresh frequency 12s.
Humidity measurement range 0 ~ 100%, error ± 2%, refresh frequency 12s.
Water temperature measurement range -10~50℃, error ±0.5℃, refresh frequency 12s.
Core component specification data
# Sensor introduction
The temperature probe uses a high-precision temperature-sensitive resistor as the temperature-sensing device, and the exterior is wrapped by copper nickel-plated metal, which can play the role of waterproof as well as fast sensing temperature changes. The output of the temperature probe is a 2.0mm headphone jack, which is connected to the temperature sensor via PVC wire.
# Features
* Wide temperature measurement range
* Stable performance
* Waterproof
* Pluggable
# Parameters
* Resolution: 0.1 degree Celsius
* Accuracy error: ±2℃
* Measuring range: -9~50℃
Temperature and humidity model: AHT20
# Sensor introduction:
AHT20, the new generation temperature and humidity sensor sets new standards in size and intelligence: it is embedded in a reflow-compatible, double-row, flat, pinless SMD package with a 3 x 3mm bottom surface and 1.0mm height.
The AHT20 is equipped with a newly designed ASIC dedicated chip, a modified MEMS semiconductor capacitive humidity sensing element and a standard on-chip temperature sensing element, which has greatly improved the performance and even exceeded the reliability level of the previous generation of sensors.
Each sensor is calibrated and tested, and the product lot number is printed on the surface of the product. Thanks to the improvements and miniaturization of the sensor, it is more cost effective and ultimately all equipment will benefit from the cutting edge energy saving operation mode.
# Parameters:
## Humidity
* Resolution: 0.024%
* Accuracy error: ±2%
* Measuring range: 5~99%
## Temperature
* Resolution：0.01℃
* Accuracy error：±0.3℃
* Measuring range: -9~50℃
## Characteristics
* Fully calibrated, no calibration required
* Digital output, I2C interface
* Excellent long-term stability
* Fast response and high interference immunity
