【Voltage Compatibility】
Our products are selected to support international voltage ranges (e.g. 100–240V).
However, please make sure your local voltage is compatible before use, as incorrect voltage may still cause malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without appropriate voltage or equipment.
---------------------------------------------------

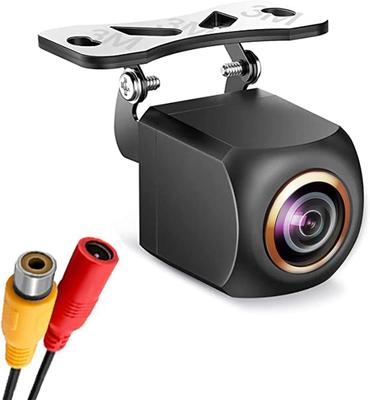

✅ [See behind you right to the side! Achieve an overwhelmingly wide viewing angle: 180° horizontal viewing angle, 140° vertical viewing angle, and 258° ultra-wide viewing angle] The lens features an ultra-wide viewing angle of approximately 180° horizontally, 140° vertical viewing angle, and 258° viewing angle, allowing you to check for obstacles across a wide area, right to the side and behind you. This wide field of view leads to greater peace of mind and safety, allowing for safe parking. Combined with a highly sensitive sensor, it achieves high visibility even at night. Furthermore, the high-performance lens unit with a glass exterior and the high-quality design using AR code processing deliver excellent performance.
✅ [High-quality 1 million pixels achieved by CCD sensor and ultra-high night vision] While most manufacturers' products have 300,000 pixels, our backup camera features a high-sensitivity CCD sensor with approximately 1 million effective pixels, providing exceptional image quality. The F-number, which indicates lens brightness, has been increased from 2.0 on previous models to 1.0. By developing a bright, highly sensitive lens with excellent color reproduction, visibility in dark areas has been dramatically improved. Starlight-class ultra-high night vision means that even dark roads that were previously difficult to see can be illuminated brightly. Furthermore, the CCD sensor eliminates smearing, the appearance of vertical white lines, even when strong light sources, such as the sun or bright lighting, hit the image sensor.
✅ [Dustproof and Waterproof, Meets World-Class IP69K Standards, Ultra-Compact Design] This waterproof case is shockproof, waterproof, anti-interference, heat-resistant, and cold-resistant. Constructed from aluminum alloy and industrial plastic materials, it meets world-class IP69K waterproof standards and undergoes high-pressure waterproofing and 12-hour power-on aging tests before shipping. It's not only waterproof, but also prevents sand, dust, and other particles from entering the interior. Its ultra-compact size of 23(W) x 23(H) x 27(D) mm allows for flexible installation and discreet installation, even when attached to a garnish or other surface.
✅ [Switchable between normal and mirrored images / with or without guidelines] You can switch between normal and mirrored images. Can be used for both rear and front. When using it as a rearview or sideview camera, use the mirrored image. When using it as a frontview camera, use the normal image. If you are using it on a front-facing camera, if the camera is already attached to a monitor or other capture device, it may get in the way. In that case, you can use it without the guidelines.
✅ [Angle Adjustable Even After Installation] Installation is easy because the angle of the unit can be adjusted even in limited mounting locations. This product comes with a 12-month warranty. If the product becomes defective within 12 months, we will directly replace it with a new one. Purchase with confidence.
Body color: Black
Camera dimensions: 27mm x 23mm x 23mm
Stay dimensions: 37mm x 20mm
Weight: approx. 50g
Output video: Switchable between normal and mirrored images
Guidelines: Show/Hide Switch
Image element: SONY CCD
Effective pixels: Approximately 1 million pixels
Horizontal resolution: 700TVL
Angle of view: Horizontal angle 180 degrees / Vertical angle 140 degrees
Video signal: NTSC
Power supply voltage: 9-30V
Operating temperature: -20℃-+65℃
Waterproof and dustproof: IP69K
