Input Voltage: 12 V
• Receiver sensitivity: > 97 dbm
• Transmitting distance:> 100 m ( open space)
• Decoding mode: MCU software decoding
• Remote storage: 20
• Support remote type: EV1527 learning code
• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )
• Output terminal: NO , NC , COM
• Remote control battery: 2 x 3 V CR2016 button batteries
Note: Maximum input power is 250 V

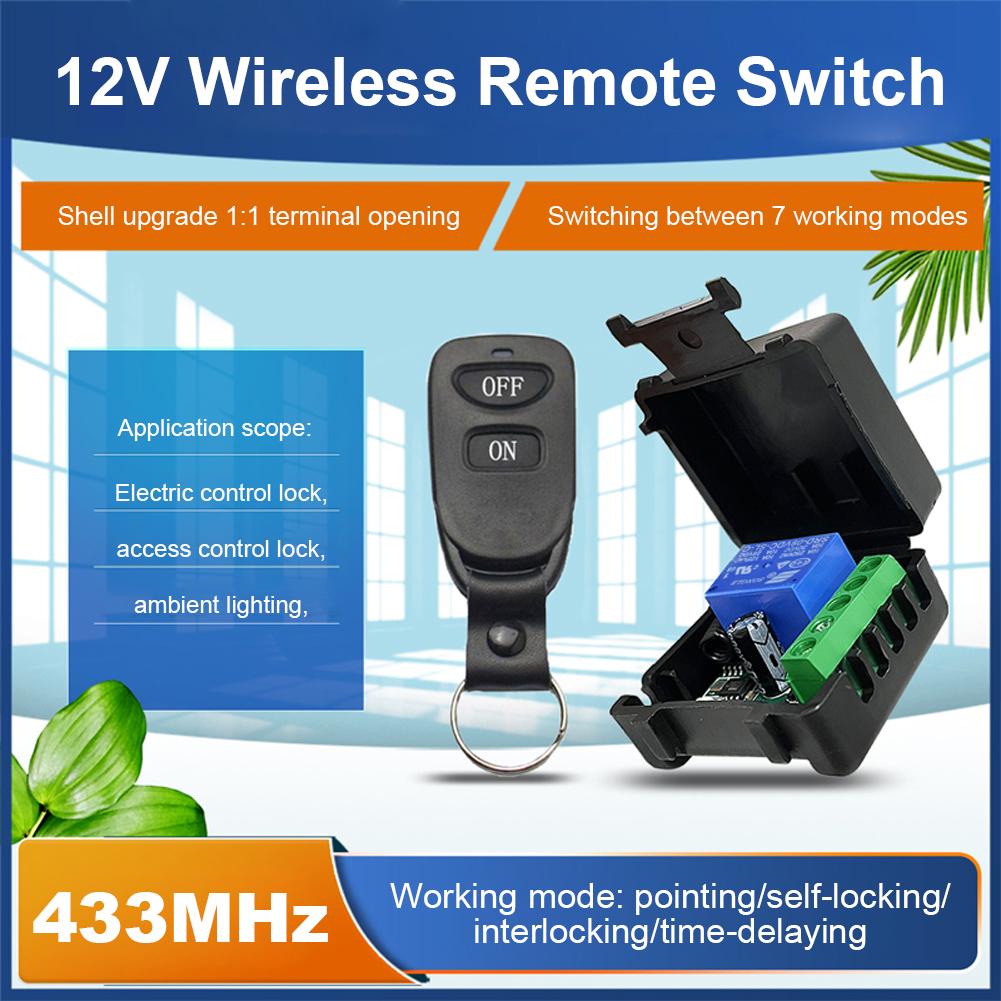

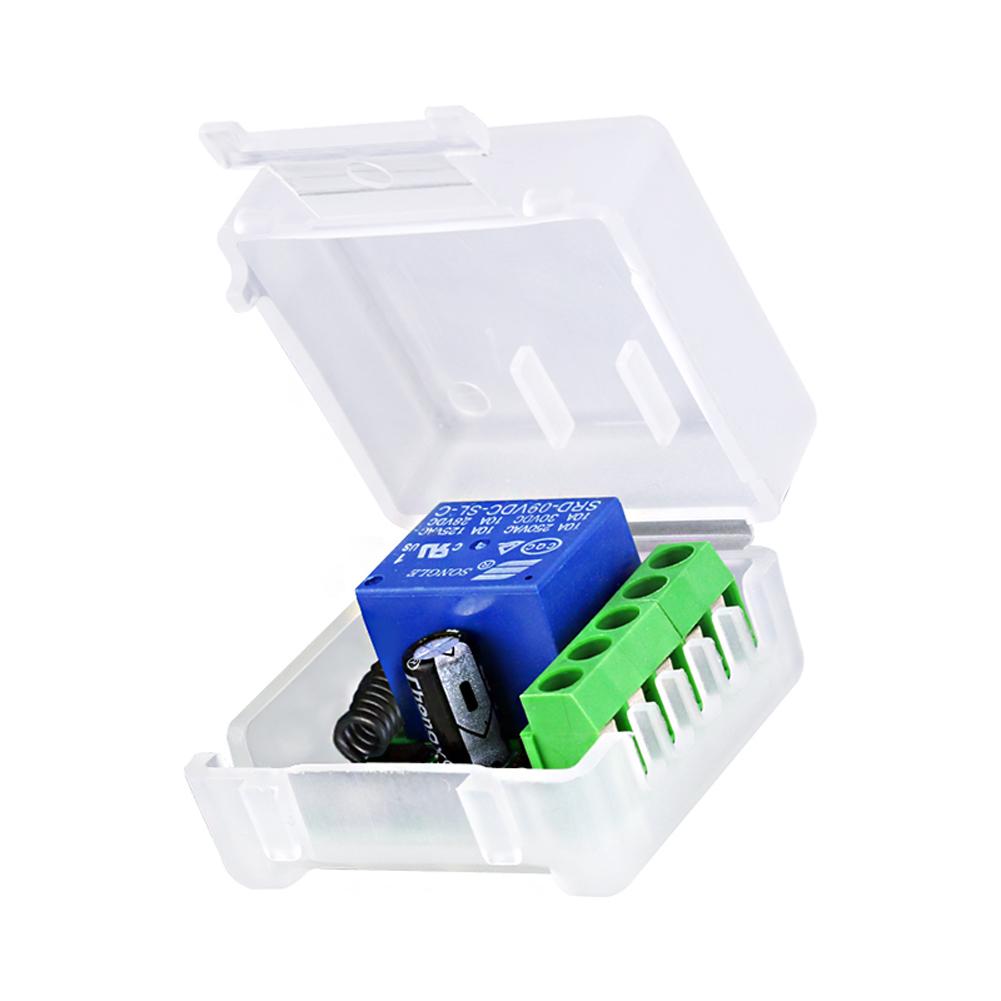

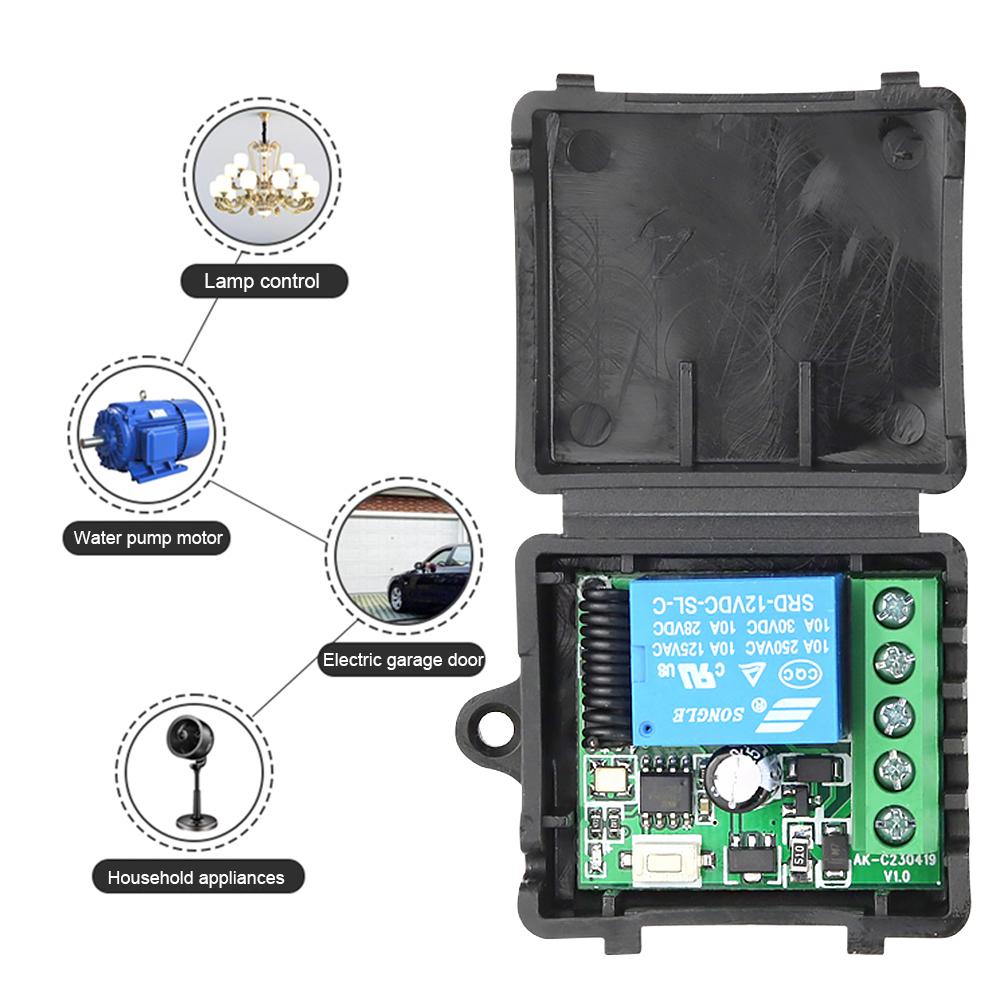

• Universal Gate Remote Control :This 433 Mhz remote control is designed to be a universal solution for gate control, ensuring easy and convenient access to your property.• DC 12V 10A Relay Receiver :Equipped with a DC 12V 10A relay receiver, this mini module provides reliable and consistent performance for your gate control needs.• Versatile Application :Not just for gates, this remote control can also be used for controlling LED garages and other home appliances, offering versatility in its usage.• Compact Mini Module Design :Its compact mini module design allows for easy installation and unobtrusive integration with your existing systems.• Long Range Signal :With a strong long-range signal, this remote control ensures effective communication even in challenging environments.
Remote programming
-Clearing the code :
Push the learning button on the receiver 8 times , the codes will be reset.
After clearing the code, remotes will be need to be recalibrated
-Momentary mode
Please contact us for detailed use instructions
-Learning the code : ( Toggle - Press remote button to turn on, press again to turn off.)
Press the learning key on the receiver 2 times, Wait for a moment , the LED will be off , it comes into learning state .
-Push the learning key on the receiver 3 times , the LED (on the Receiver)will blink 3 times.
When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times .
Push the remote button B, Led flash for 3 times .
After 3 seconds , the LED indicator will be off , Learning to succeed.
Package includes: As the picture
