Feature:
1. Safe Using: The terminal and the main electrical circuit of this module are fully isolated, the control input voltage is greater than the dielectric 2000 Vac, and the approved safety electronic components are used.
2. Advanced Technology: This module adopts high power thyristor chip and DCB ceramic base plate, features small size, stable performance and high reliability.
3. Manual, Automatic Operation Optional: This module fully supports 4‑20mA, 0‑5Vdc, 0‑10Vdc, 5Vdc and other input automatic control modes, and can also be manually adjusted through the potentiometer.
4. Light Indicator: This module is equipped with light indicators, green LED power indicator and red LED output regulation indicator.
5. Scope of Application: The half wave type is mainly used for cement, monosodium glutamate, feed and other mixed ingredients, which can control the vibration of the vibrator.
6. Long Life Span: The additional output maximum limit and regulation function and slow start regulation function can effectively defend the voltage safety module and extend the service life of the voltage regulation module and load.
Specification:

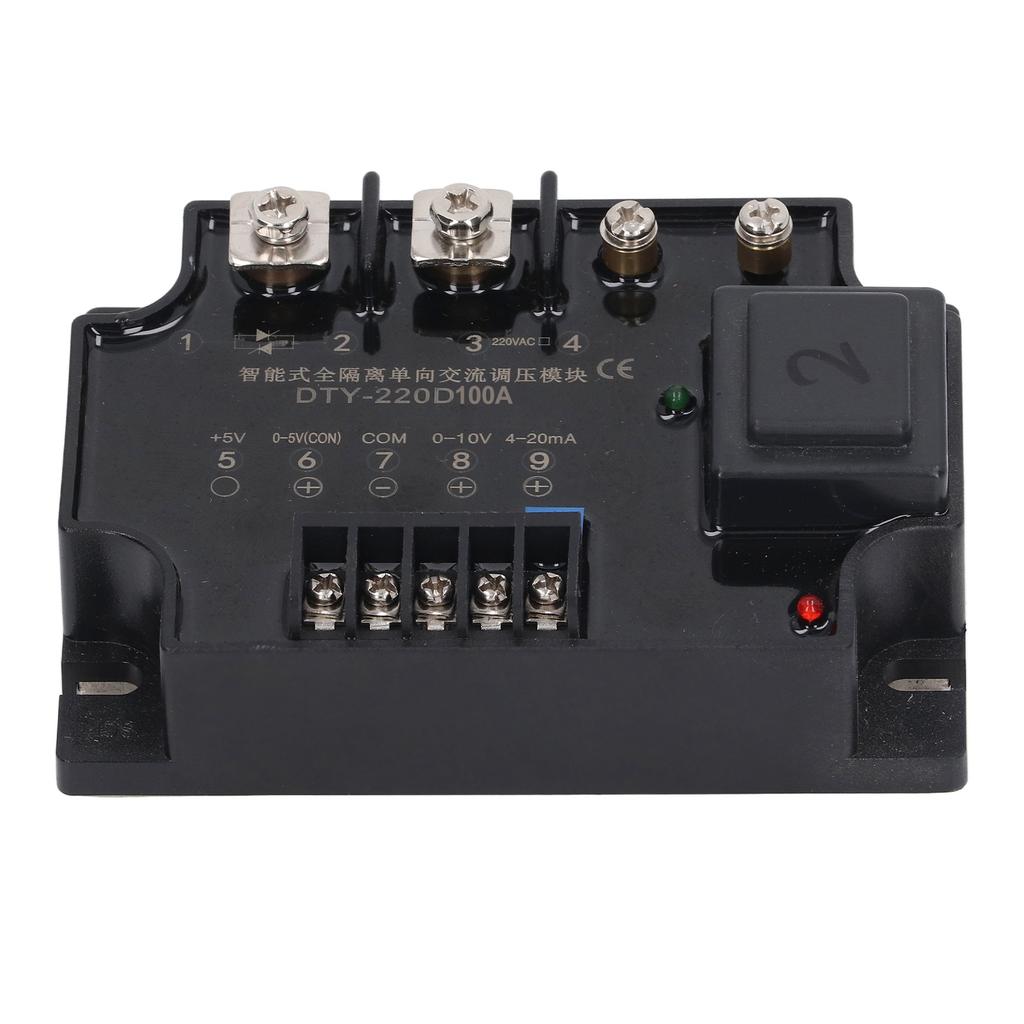

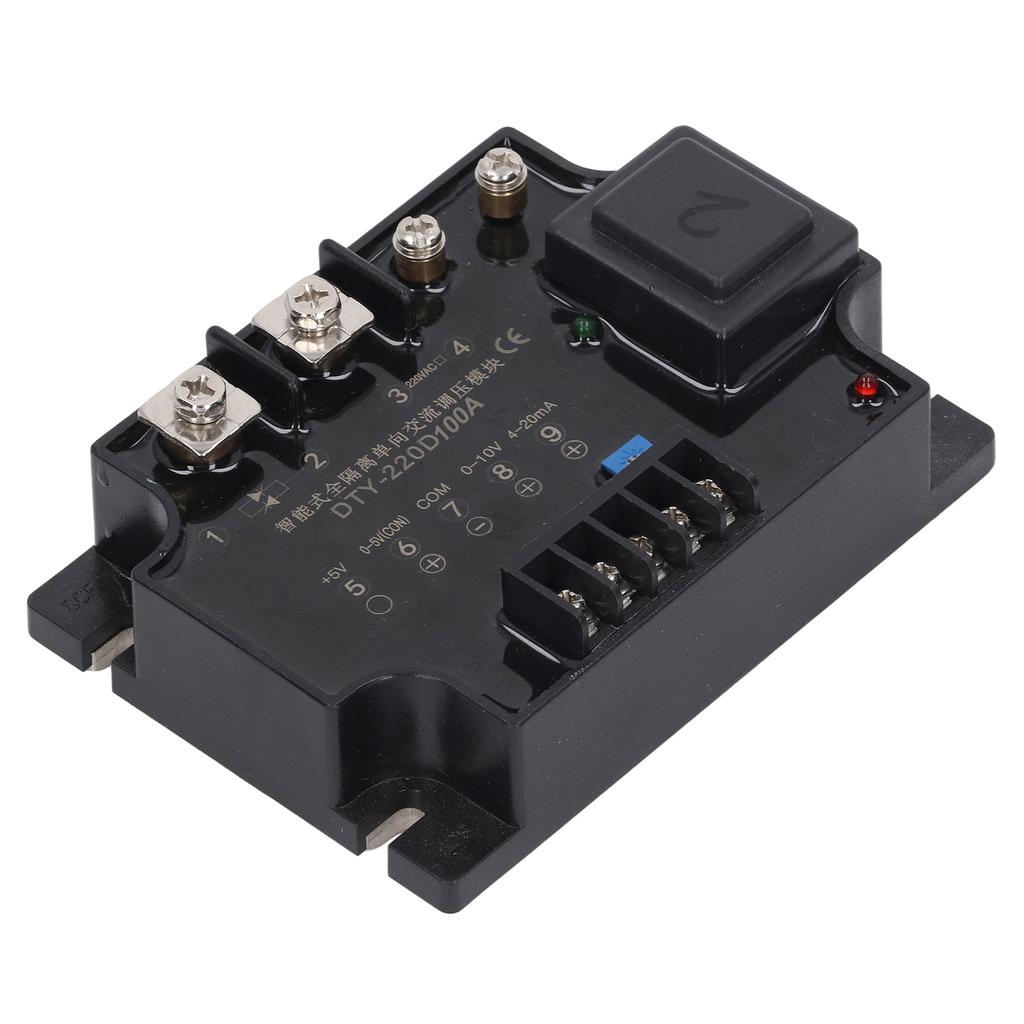

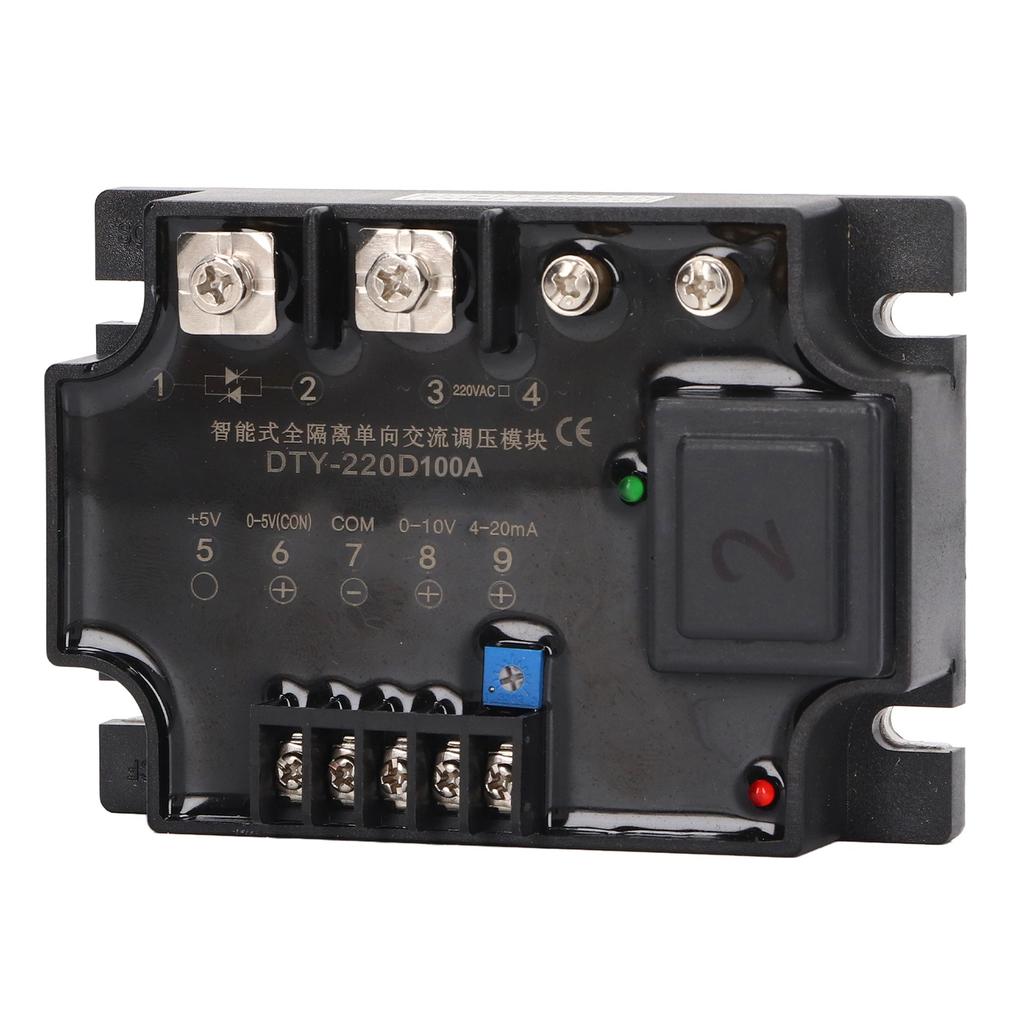

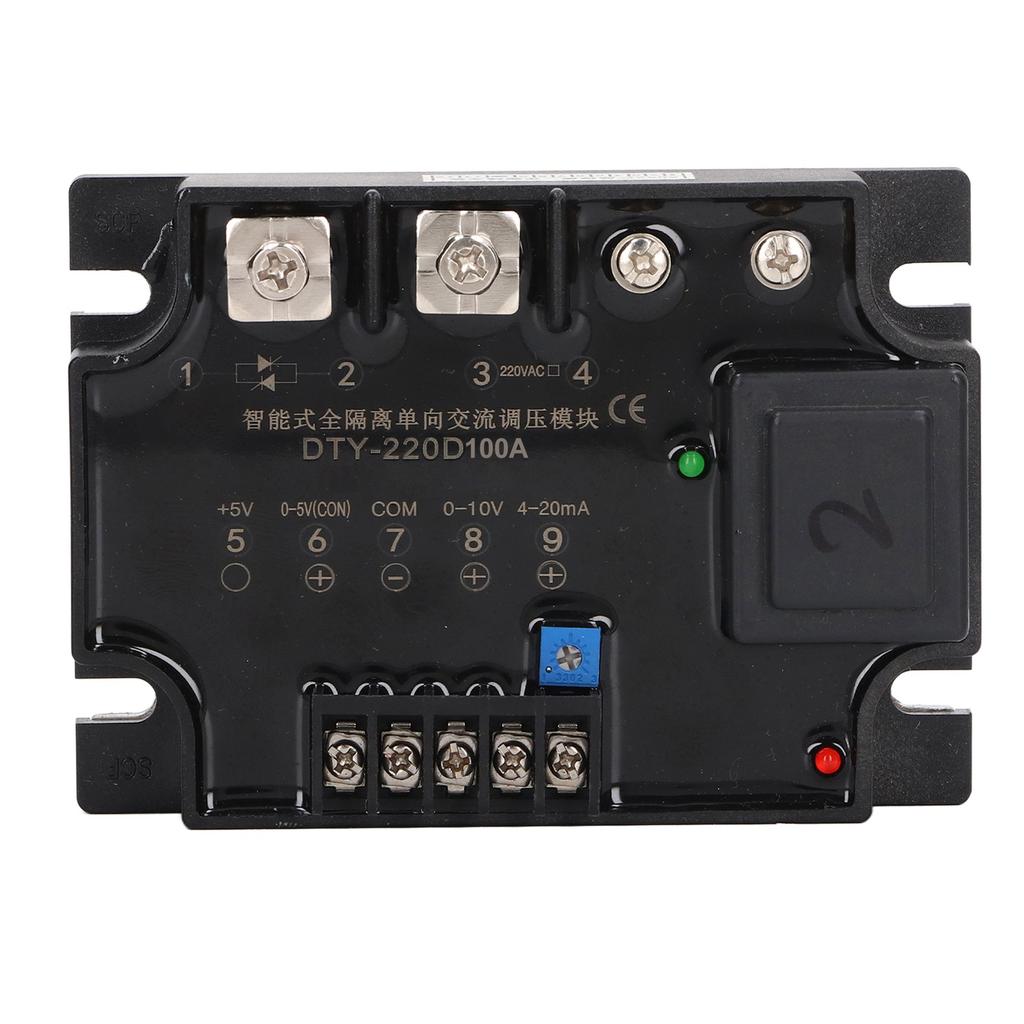

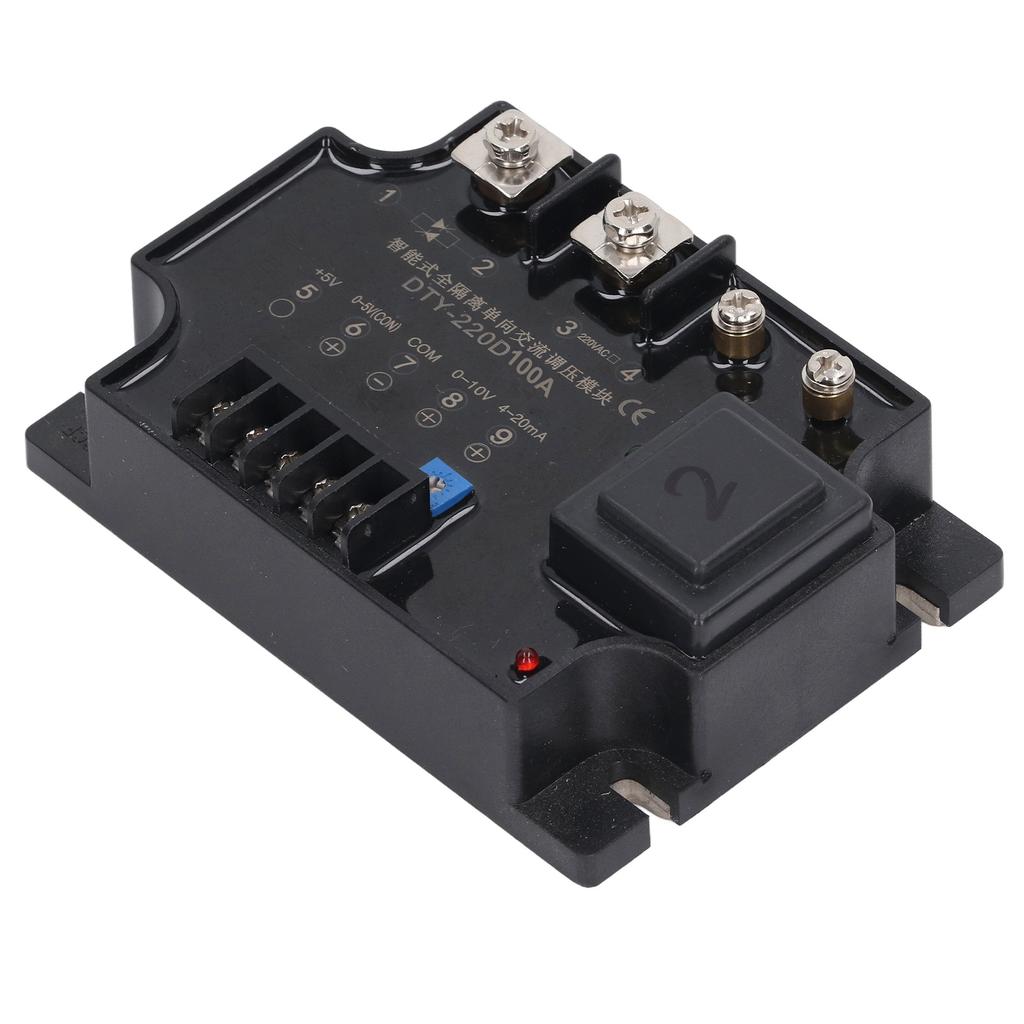

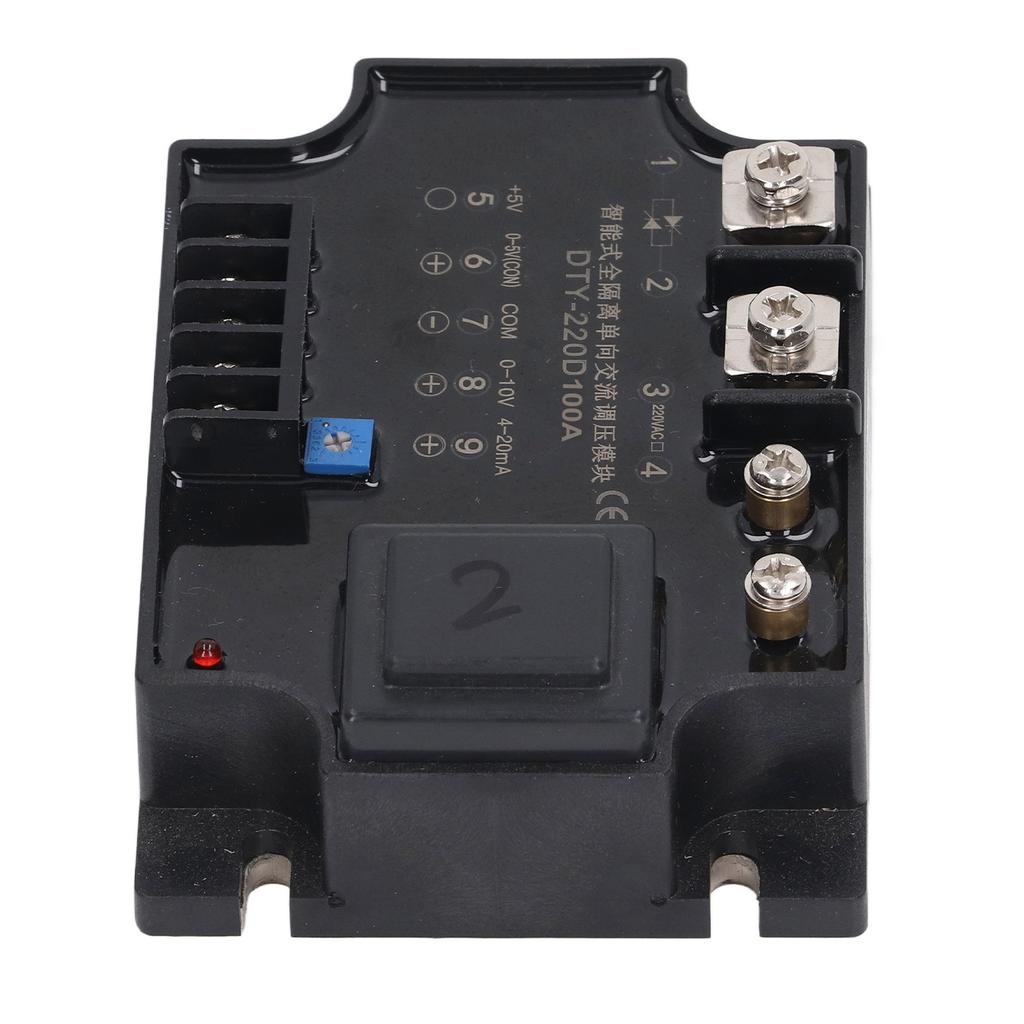

Item Type: AC Voltage Control Module
Product Material: Metal, PBT, DCB Ceramic
Input Control: 0 5V, 0 10V, 4 20mA multi signal
Output Load Voltage: AC 220V
Peak Voltage: 600V AC
Control Type: Intelligent stepless regulation
Ambient Temperature: 20 to 70 celsius
The Coefficient Depends on the Load Type of the Equipment You Want to Carry:
Resistive Load: 60percent
Inductive Load: 30percent
Application:
Heating: Electric furnace, injection molding equipment, thermoforming, textile equipment, infrared heating, drying system
Motor: Soft start of fan motor, water pump motor and ordinary motor
Lighting: Public lighting, industrial lighting, stage lighting
Others: Transformer, inductance coil, electric welding, electroplating.
Package List:
1 x
AC Voltage Control Module
Note:
The radiator is used for auxiliary heat dissipation. The solid state relay with a working current of more than 10A must be equipped with a radiator. The relay and radiator quality inspection must add conductive silicone grease for better heat dissipation. When the surface temperature of the radiator is close to 60 celsius , forced air cooling should be applied. When the working current is more than 80A, forced air cooling or water cooling must be applied.
