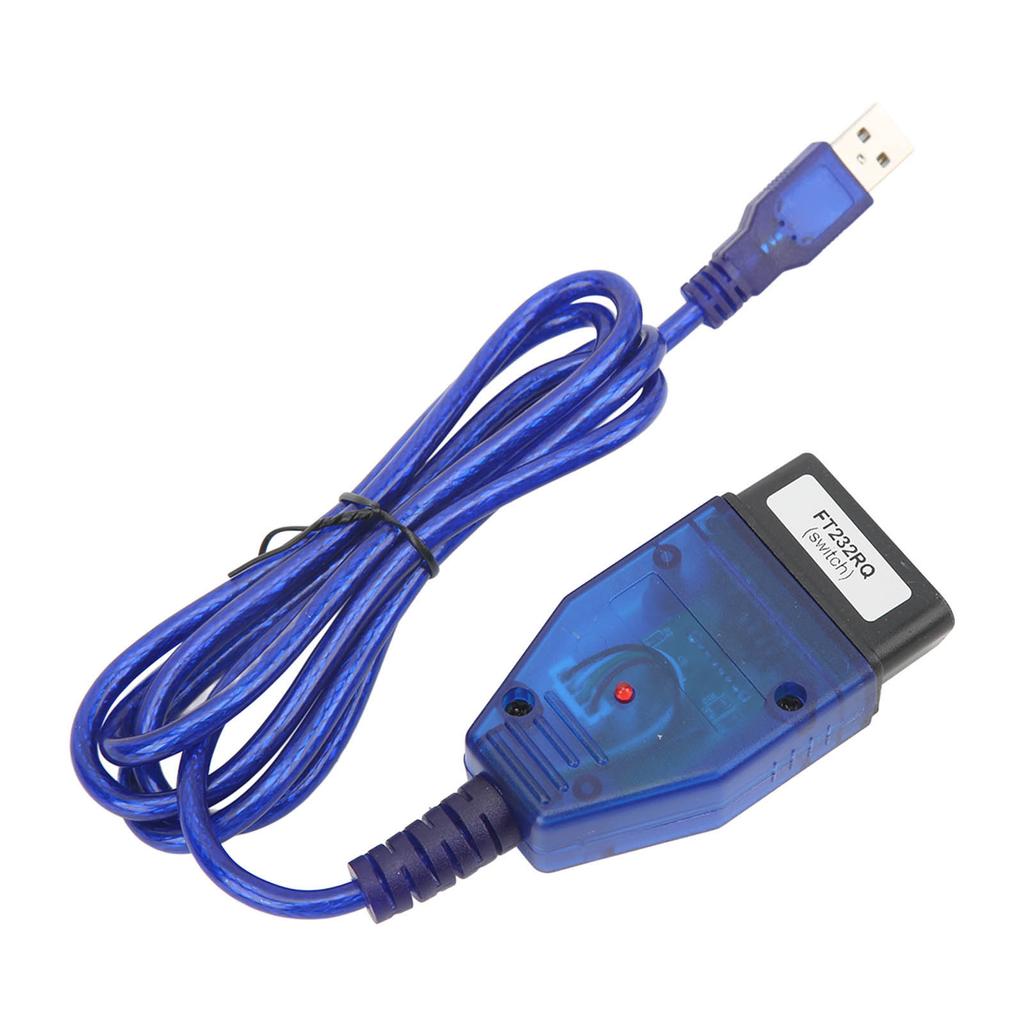

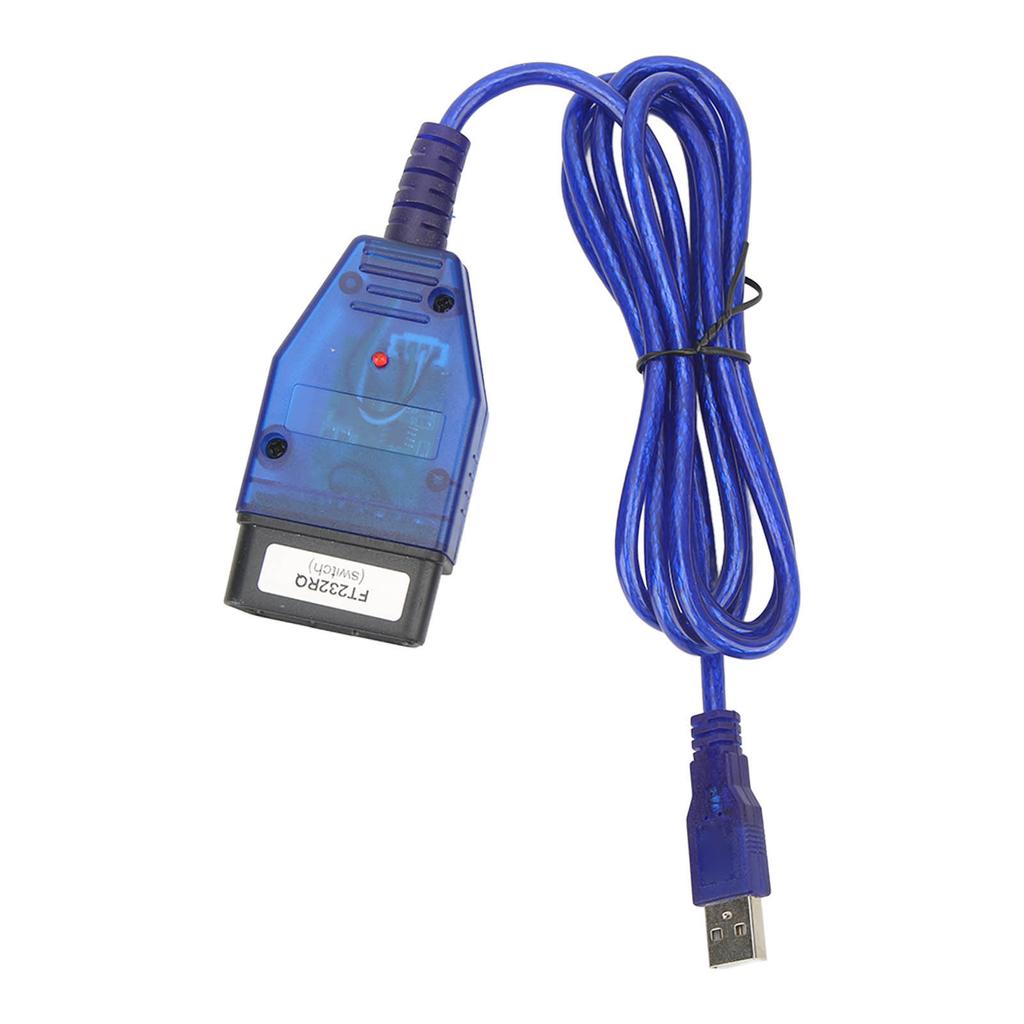

Feature:
1. Fitment: The diagnostic cable is applicable for Windows XP, for Vista, for Windows 7, and is a replacement for Fiat ECU Scan, for KKL409.1.

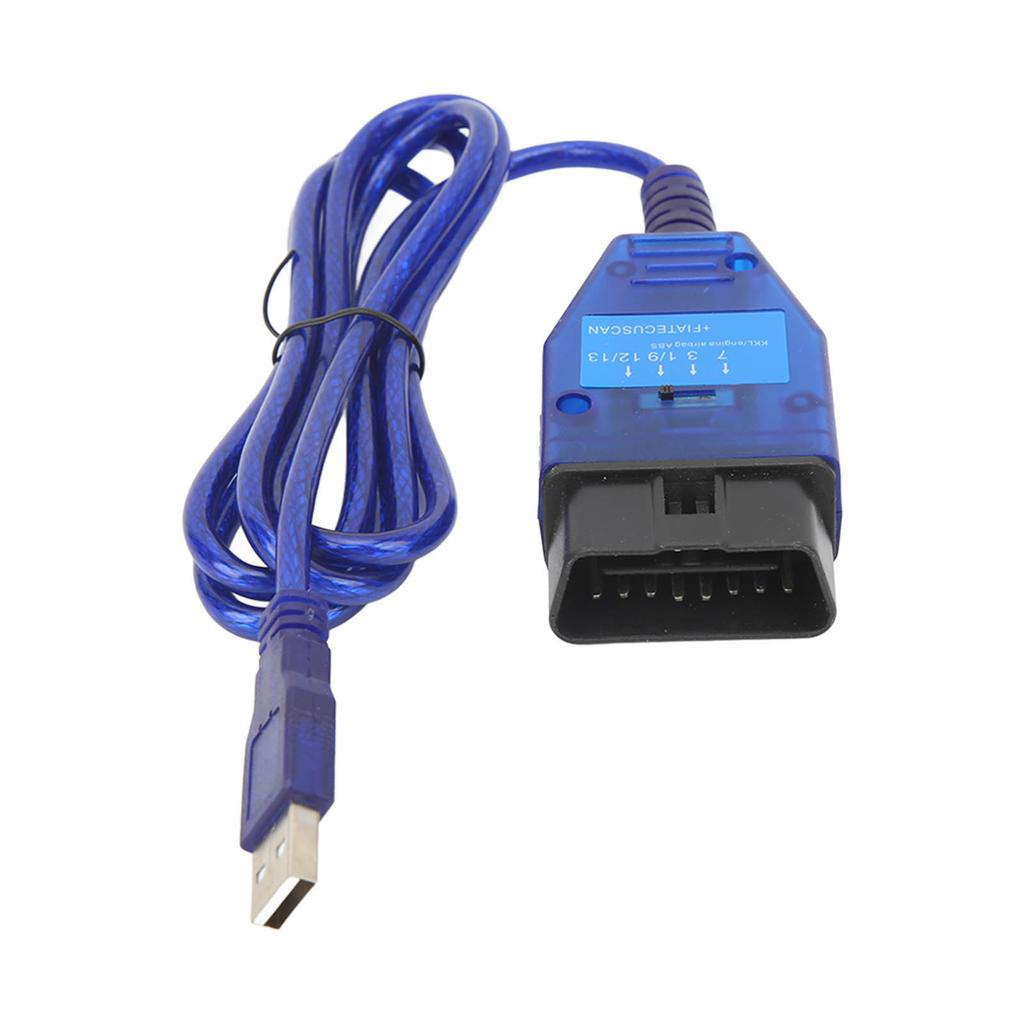

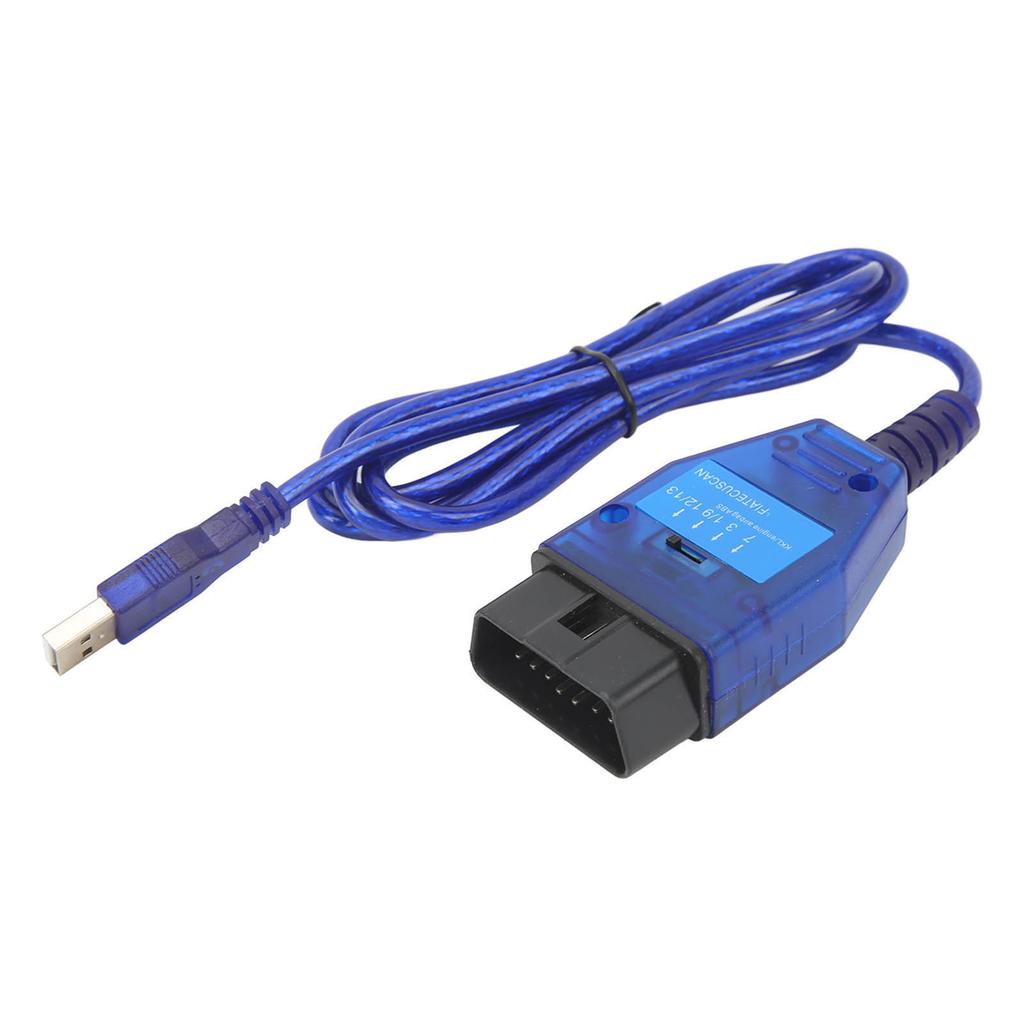

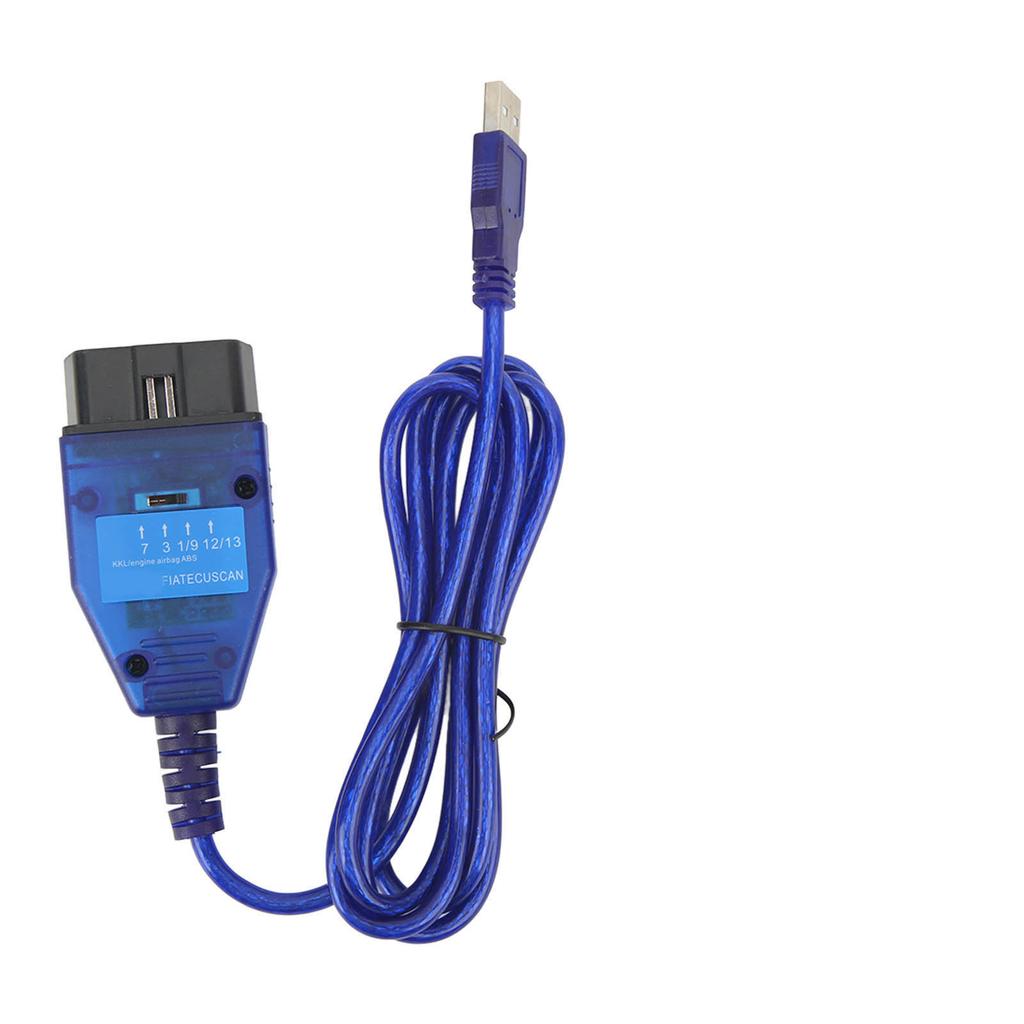

2. Function: Equipped with 4 way switch to access different ECUs, the position 1 is for engine, 2 for supplementary restraint system, 3 for ABS, 4 for ESP.
3. Pins: The pin 1 can be connected to the ABS, the pin 3 to the supplementary restraint system, pin 7 to the engine or gearbox, pin 9 to ESP.
4. Fine Workmanship: Professional manufactured, exquisite workmanship with unique design, ensure stable performance and high reliability.
5. Operation: You need to plug the connector with your computer and your OBD diagnostic tool (not included), then follow the instructions on CD for operation.
Specification:
Item Type: OBD2 Diagnostic CableMaterial: ABSCompatible Operating Systems: for Windows XP, for Vista, for Windows 7Compatible Diagnostic Software:
Replacement for Fiat ECU ScanFits for KKL409.14 Way Switch:
Position 1: Engine ECU (read or clear engine faults)
Position 2: For supplementary restraint system ECU (read or clear SRS faults)Position 3: ABS ECU (read or clear break faults)
Position 4: for ESP ECU (red or clear stability fault)
pin 1: ABS
pin 3: SRS
pin 7: Engine or Gearbox
pin 9: for Esp
.
Package List:
1 x
OBD2 Diagnostic Cable1 x CDFitment: The diagnostic cable is applicable for Windows XP, for Vista, for Windows 7, and is a replacement for Fiat ECU Scan, for KKL409.1.
Function: Equipped with 4 way switch to access different ECUs, the position 1 is for engine, 2 for supplementary restraint system, 3 for ABS, 4 for ESP.
Pins: The pin 1 can be connected to the ABS, the pin 3 to the supplementary restraint system, pin 7 to the engine or gearbox, pin 9 to ESP.
Fine Workmanship: Professional manufactured, exquisite workmanship with unique design, ensure stable performance and high reliability.
Operation: You need to plug the connector with your computer and your OBD diagnostic tool (not included), then follow the instructions on CD for operation.
