[Product Infomation]
Brand : IRIS OHYAMA
Materials :
[Product Description]

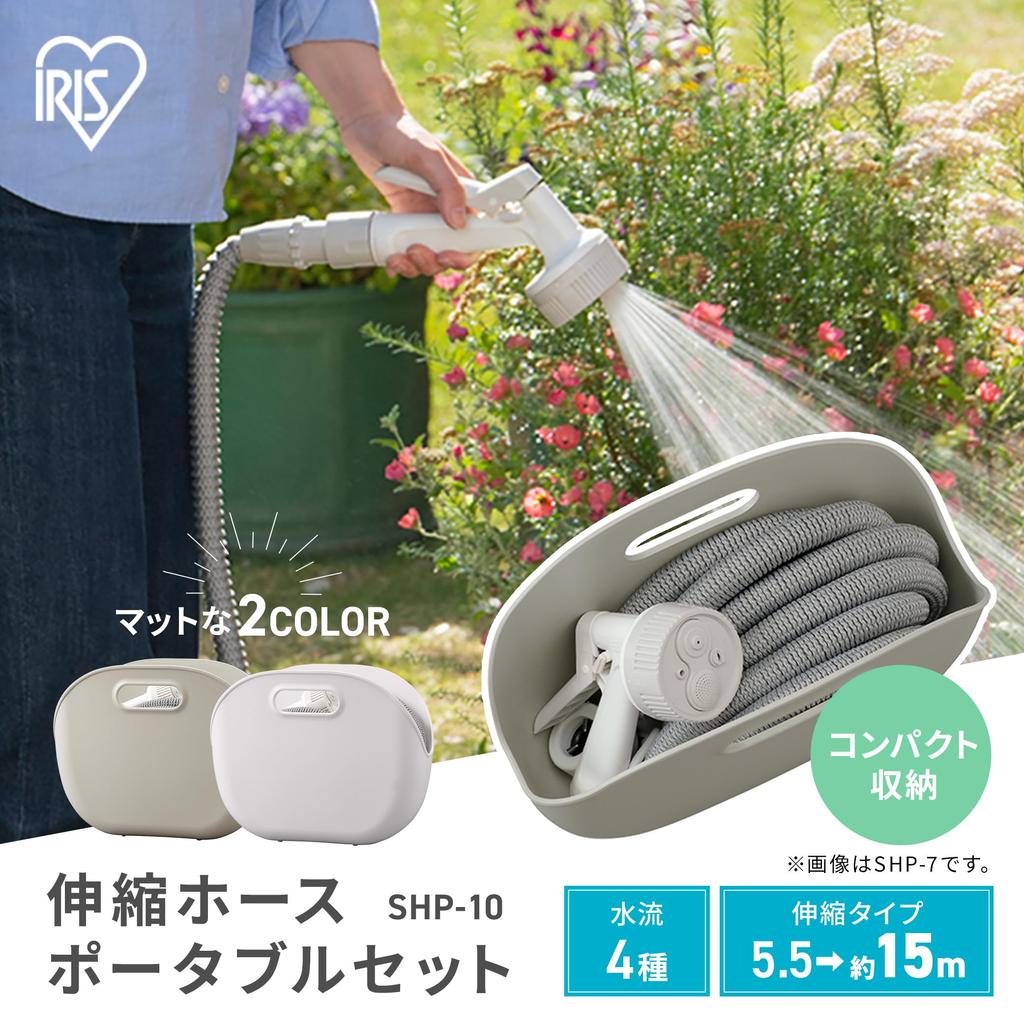

・When you turn on the faucet, the water expands to about 3 times its size due to the power of water. 5.5m becomes about 15m! Once the water is removed, it returns to its original state and becomes lightweight and compact. The work is completed without the need for winding.
- [Convenient storage case included] The storage case comes in 2 simple matte colors (white/light gray). All set items can be stored neatly. The bottom of the case has drainage holes.
- [High-performance aqua gun that is comfortable to use] - Easily switch between 4 jets (Kiri/Kakusan/Shower/Jet) with the dial on hand.
- [Faucet clasp included] If you attach the included faucet clasp, you can use the hose just by connecting the push connector. *Please prepare a Phillips screwdriver to install the faucet base.
・[Steps to store after use] 1. Turn off the water supply / 2. Drain the water from the Aqua Gun / 3. Remove the push connector from the faucet

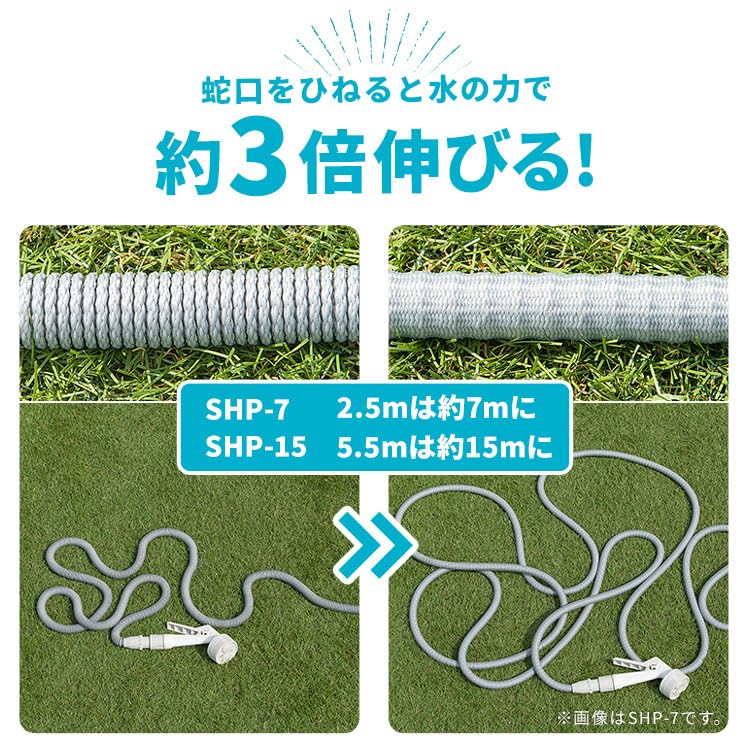

When you turn on the faucet, the water expands to about 3 times its size.
5.5m becomes about 15m!
Once the water is removed, it returns to its original state and becomes lightweight and compact.
The weight of the hose is approximately 1400g.
The work is completed without the need for winding.

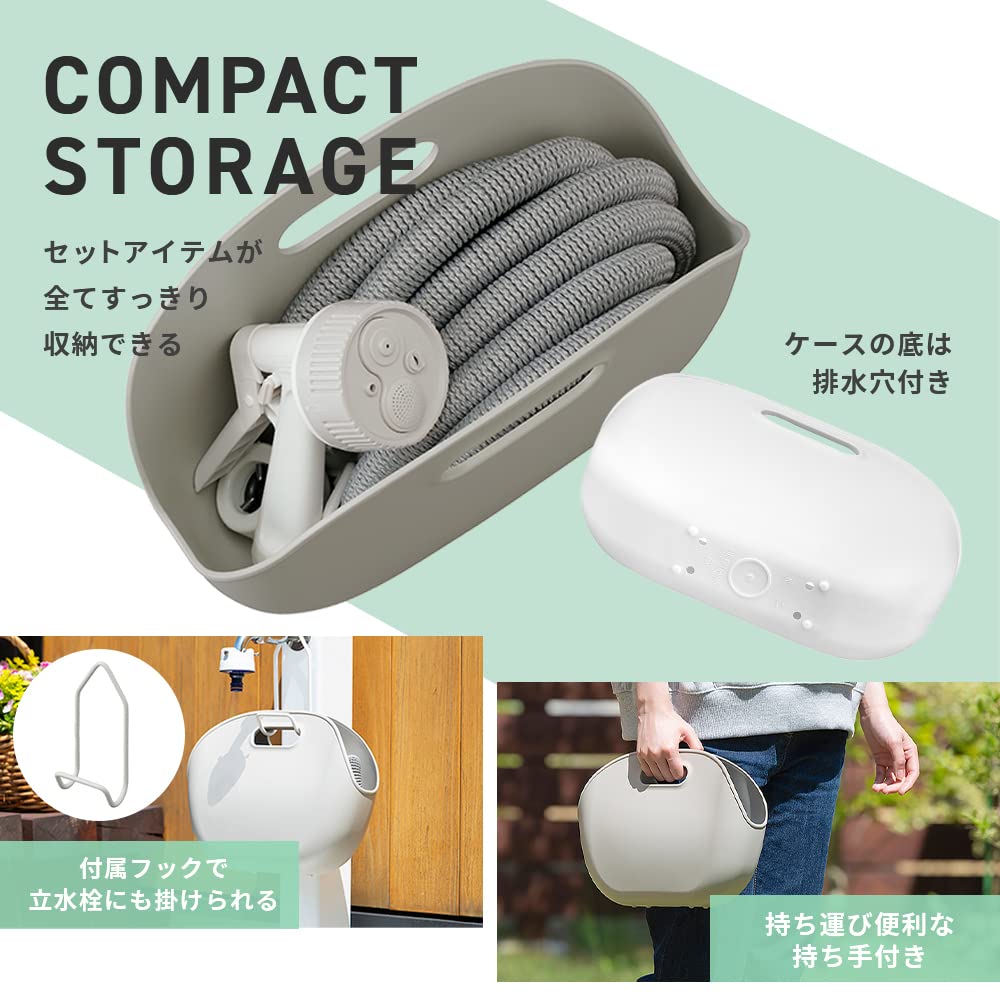

[Comes with a convenient storage case]
The storage case is a simple matte 2 color (white/light gray).
All set items can be stored neatly.
The bottom of the case has drainage holes.
It comes with a handle for easy carrying, and can also be hung on a standing faucet using the included hook.

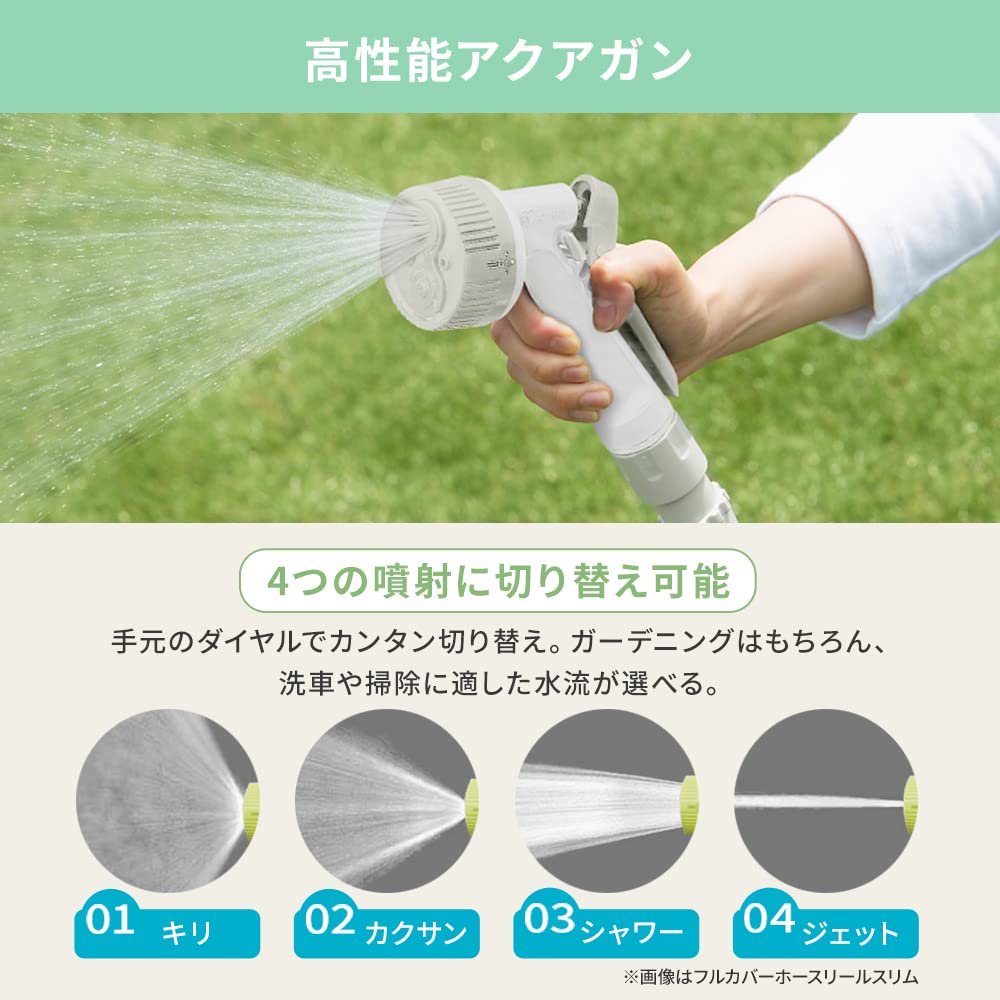

[High performance aqua gun that is comfortable to use]
-Easy to switch between 4 types of jets (Kiri/Kakusan/Shower/Jet) with the dial on hand.
You can choose the water flow suitable for not only gardening but also car washing and cleaning.

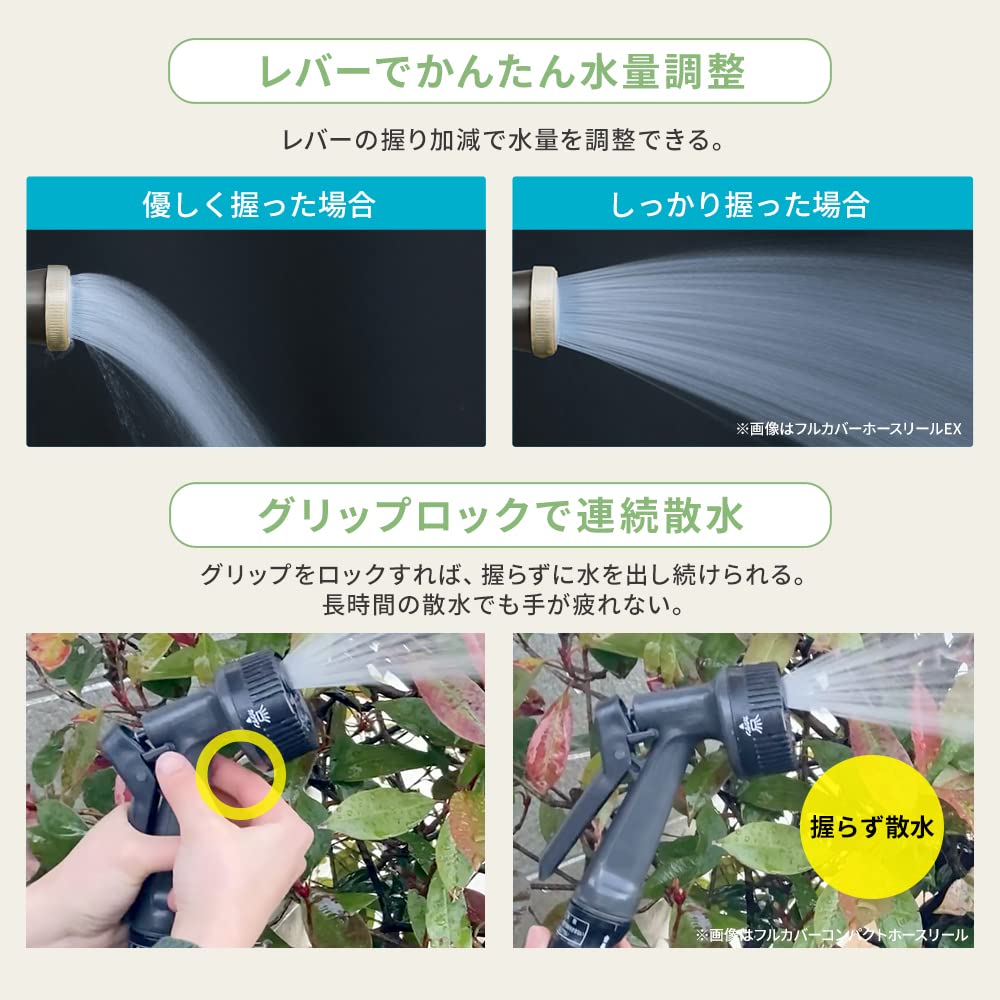

・Easy water volume adjustment with lever
The amount of water can be adjusted by gripping the lever.
- Easy-to-grip grip that fits comfortably in your hand
Easy watering just by squeezing the grip.
The rear lever makes it easy to make subtle adjustments to the amount of water.
・Continuous watering with Grip Lock
If you lock the grip, you can continue dispensing water, so your hands won't get tired even when watering for a long time.

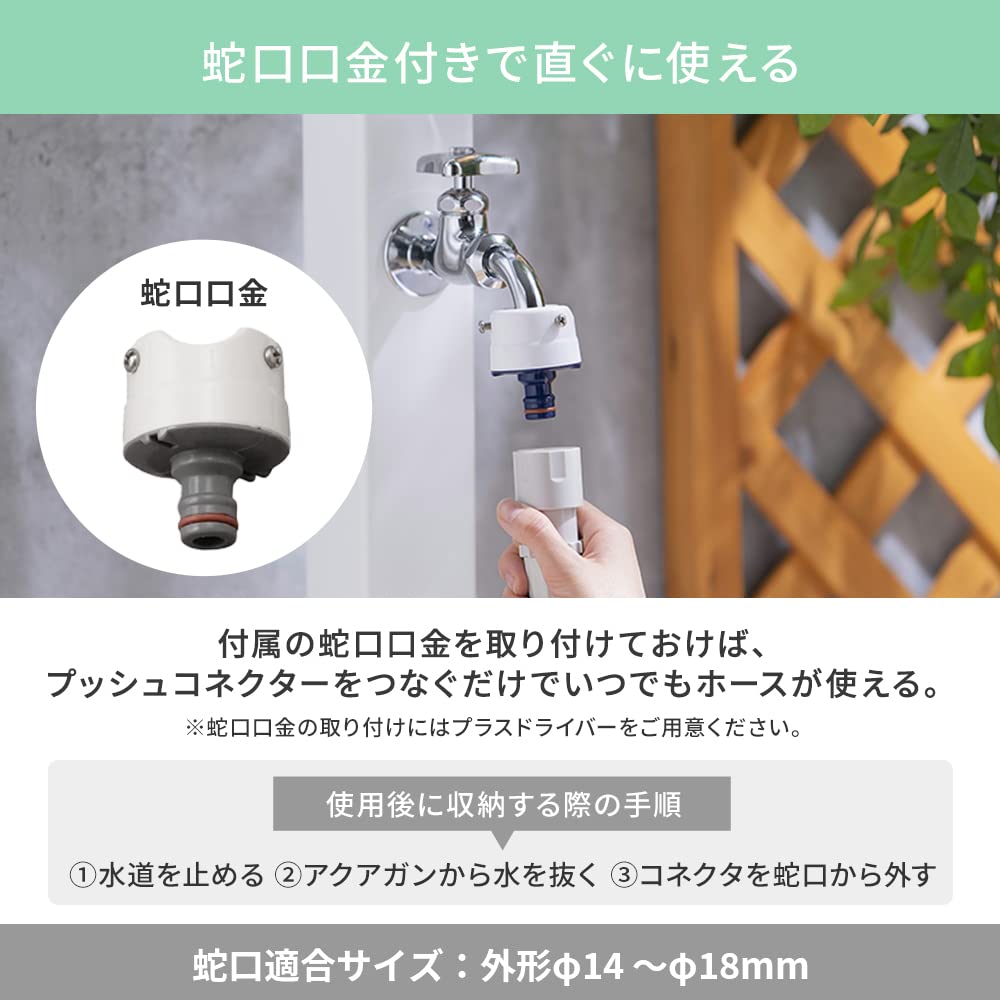

[With faucet base]
If you attach the included faucet cap, you can use the hose just by connecting the push connector.
(*Please prepare a Phillips screwdriver to install the faucet base.)
[Procedures for storing after use]
1.Turn off the water supply
2. Drain water from Aqua Gun
3.Remove the push connector from the faucet
●Product size (cm) (when stored)
Width approx. 32.3 x Depth approx. 14.1 x Height approx. 26.7
●Mass (when stored)
Approximately 1.4kg
●Main materials
Bag: polyethylene
Telescopic hose: Cloth/polyester, hose/latex, push connector/polypropylene, ABS resin
Hook: Metal (steel) (epoxy resin coating)
Base: polyacetal
●Faucet compatible size
Outer diameter φ14~18mm
*Please note that some faucet clasps may have taps embedded in them, or may not be able to be attached.
*Do not use for instant water heaters.
●Parts list
Bag, telescopic hose, aqua gun (with O-ring), hook, faucet fitting (with O-ring)
●Model number
SHP-15
[Precautions for use]
-This product is for general household outdoor gardening, so please avoid using it for commercial purposes.
・Please be sure to run water through the hose before use.
・Do not use indoors. In the unlikely event of a water leak, there is a risk of damage to your property and home.
-Water passed through the hose may have a smell, so please do not use it for eating or drinking purposes.
・For safety, please make sure that all connections are securely connected before use.
・Please note that if you use the product with insufficient connections, the hose or parts may come off and cause an unexpected accident.
・Please store indoors. If stored outdoors for a long time, there is a risk of discoloration, deformation, or damage. Also, the amount of expansion and contraction of the expansion hose may change.
- We cannot provide compensation for breakdowns or damage caused by improper repair or modification.
- The working pressure is set at 0.1~0.4Mpa (1~4kgf/cm2), so avoid pressurizing with a pump, etc. In areas with high water pressure, the connector may become disconnected or the product may be damaged.
≪Aqua Gun≫
・Do not leave the water turned off at the lever; be sure to close the faucet. The hose may be damaged due to deterioration.
・Do not throw or drag it. This may cause damage or water leakage.
・During the winter, remove from the hose, drain thoroughly, and store. If water remains inside, it may freeze and cause damage.
・Do not use or store near fire.
・Please be careful not to let sand get into the head or connector part. Otherwise, it may become clogged and become unusable.
≪Hook≫
・Do not hang anything other than this product. There is a risk of damage or deformation.
・Please be careful as rust may develop from scratches.
[Important Note - For Overseas Customers]
Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.
1. Legislation and safety standards
This product complies with Japanese safety standards. Please check compatibility with local regulations and safety standards before use in your country.
Certain product categories (electronics, cosmetics, food, etc.) may require certification from the importing country.
2. About electrical products
[Voltage compatible]
When using electrical appliances, please note that they are designed according to Japanese voltage specifications (90-110V), so using them at a different voltage may cause malfunctions.
[Plug type]
Our products use the Japanese plug type (A type or B type).
Please use a conversion adapter if necessary.
[Important notes regarding transformers and adapters]
A transformer adjusts the voltage to suit the requirements of the equipment.
Conversion adapters only change the shape of the plug and do not adjust the voltage.
Using only the conversion adapter without a transformer may damage the product.
[About responsibility]
We are not responsible for any failure or damage caused by improper usage, such as operating the product without a transformer.
3. Language and manual
Product instructions and displays may only be in Japanese.
The English version of the manual can be downloaded from our website.
