Features:
10W laser Beam Shaping Technology: The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9, which means S10 has higher energy density, stronger cutting penetration and engraving capabilities.
Powerful High-speed Air Assist: Equipped with a high-speed air assist nozzle. Advanced fluid mechanics design to better utilize the air pressure. When using the same air compressor, the S10 spray airflow faster. For example, when using 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

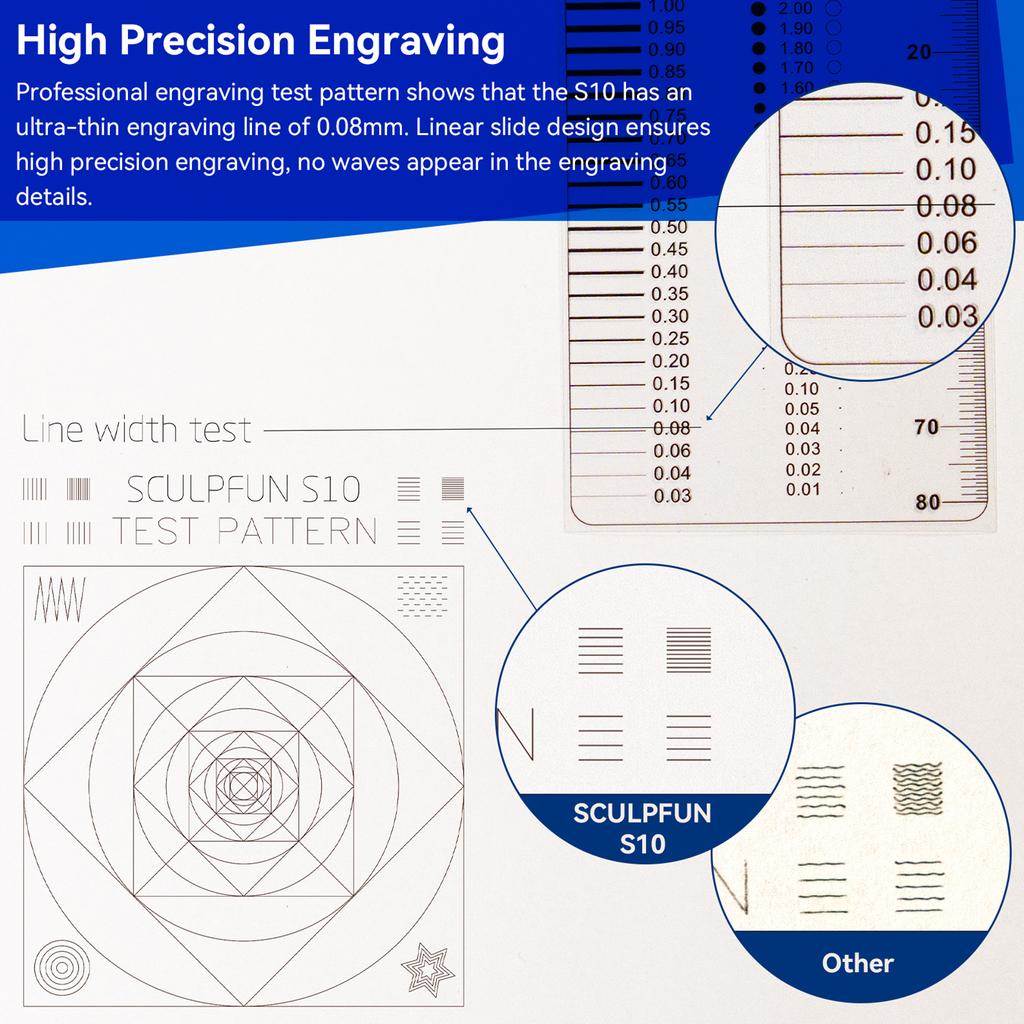

Industrial-grade Cutting Accuracy: S10 adopts industrial high-precision linear slide rail X-axis, which makes it get industrial-grade engraving accuracy. When comparing the small engraving details, S10 does not have the wave lines that other ordinary engraving machines appear.
More Advanced and Upgradable 32-bit Motherboard: The S10 motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limit switch functions to facilitate people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.
Square Measuring Ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.
Detachable Laser Shield & Safe Design: Equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield. There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable. And the free A4 size steel pad can protect the table from laser damage, isolate fire hazards.
Specification:
Model: S10
Diode Laser Output Power: 10W (Note This Is Light Energy Not Electrical Energy)
Inner Diameter Of Air Pipe: 7.5mm (Recommended To Use 30L/Min, 0.03mpa Air Compressor, Out Diameter Of Nozzle: 8mm)
Laser Wavelength: 455+/-5nm
Engraving Accuracy: 0.01mm
Engraving Area Size: 410x400mm
Focusing Method: Fixed Focus + Sliding Device
Laser Protection Cover: Equipped With a Detachable Laser Cover To Protect The Eyes. You Can Adjust It Up And Down, Or Remove The Cover
Machine Power Consumption: About 36W (Not Related To Engraving Or Cutting Performance, Just Power Consumption)
Engraving/Cutting Materials:
Engraving Material: All Kinds Of Wood (Including Walnut, Cherry And Other High Density Wood), MDF, Bamboo, Cardboard, Plastic, Leather, PCB Board, Alumina, 304 Stainless Steel, Ceramic, Dark Stone

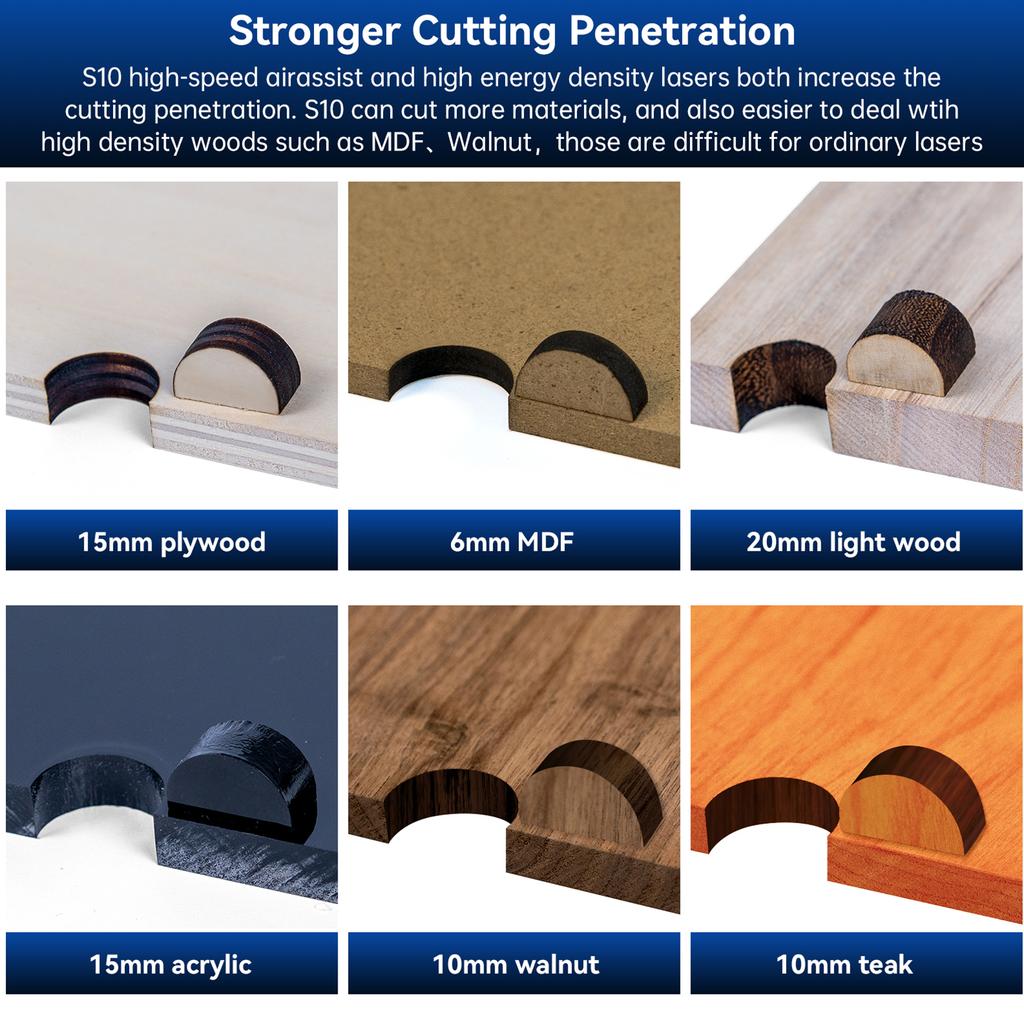

Cutting Material: All Kinds Of Wood (Including Walnut, Cherry And Other High-Density Wood), MDF, Acrylic, Cardboard, Bamboo, Some Plastic Boards, Leather, PCB Boards
Laser Software: LASERGRBL, LIGHTBURN, LASERGRBL, LIGHTBURN, BENBOX, GRBLCONTROLLER, LITEFIRE
Support System: Support MAC, Windows System
Supported File Formats: NC, BMP, JPG, PNG, DXF And Other Image Formats
Data Transfer Method: USB Connection
Power Input: 100-240V AC, 50/60hz; Output: 12V 5A
Product Weight: 3.42kg
Packing Weight: 5.13kg/11.3lb
Packing Size: 600 x 345 x 130mm/23.6 x 13.6 x 5.1in
Notes:
●Because of the powerful laser of S10, it is forbidden to run the engraving machine unattended. Pause it if you're not around.
●For detailed machine instructions, please refer to the manual for parameter settings.
●When operating the laser engraving machine, please install the laser protective cover; if it is not installed, you need to wear goggles.
●Do not touch the laser with your hands, otherwise you may burn your hands.
●Please avoid strong impact on the machine.
●It is forbidden for children under 14 years old to use this product, and children over 14 years old need adult attended.
●Do not use the laser directly to any specular reflection object, which may cause injury to the operator or burn the laser.
Packing List:
1 x X-Axis Assembly
2 x X Profiles
2 x Y Profiles
1 x Control Box Assembly
3 x Support Feet
1 x S10 Laser
1 x 12V 5A Power Adapter
1 x Power Cord
1 x USB Cable
1 x Air Tube
3 x Tool Bag
1 x Laser Goggles
1 x Test Wood Board
1 x A4 Size Metal Pad

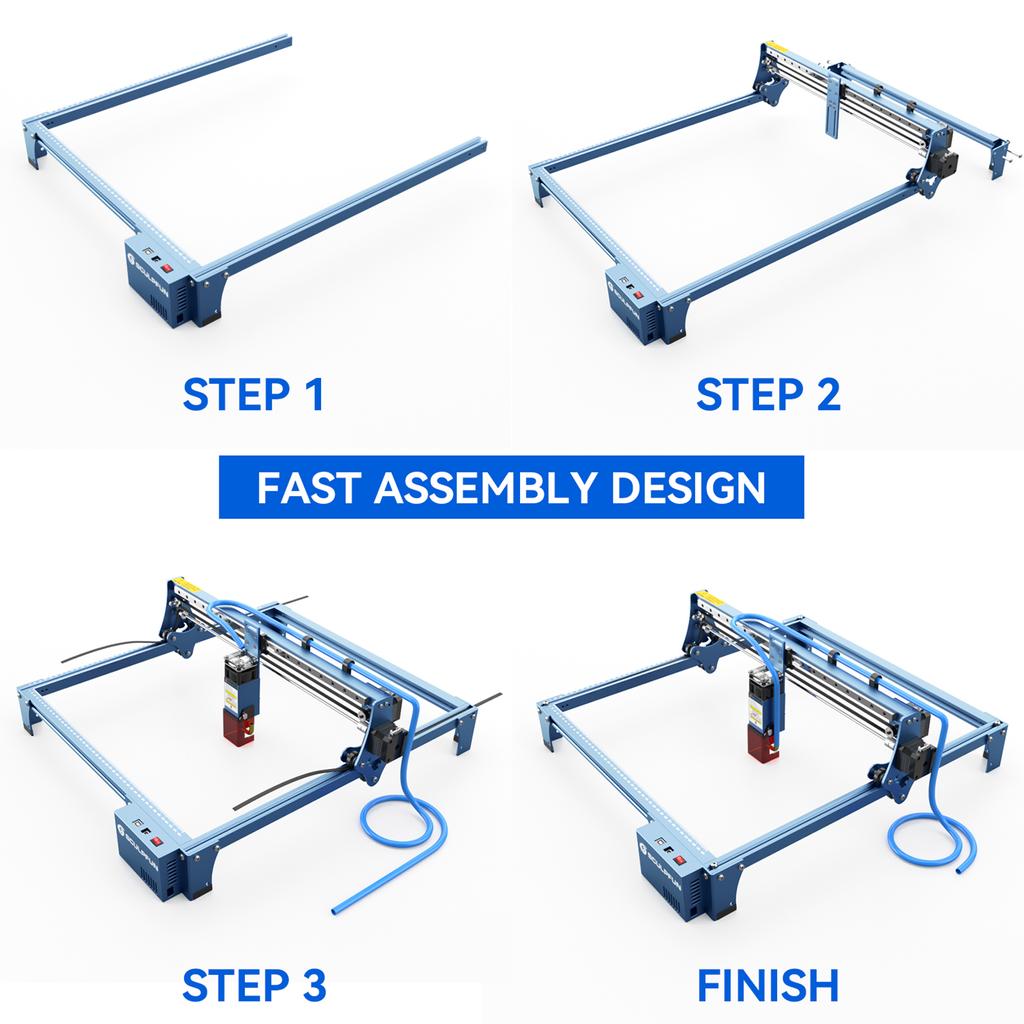

Step 1-6 Install The Package
1 x User Manual
